Application 114

Industrial Automation Container Filling

  |
Application Summary
FUTEK’s load cells are designed to fit applications like industrial automation container filling and/or weighing. A load cell is installed in an automation line to help monitor equal distribution through packaging.
Products in Use
Load Cells (LSB or LCF Series) paired with Instrumentation (IHH500 or IPM650). View Product Details

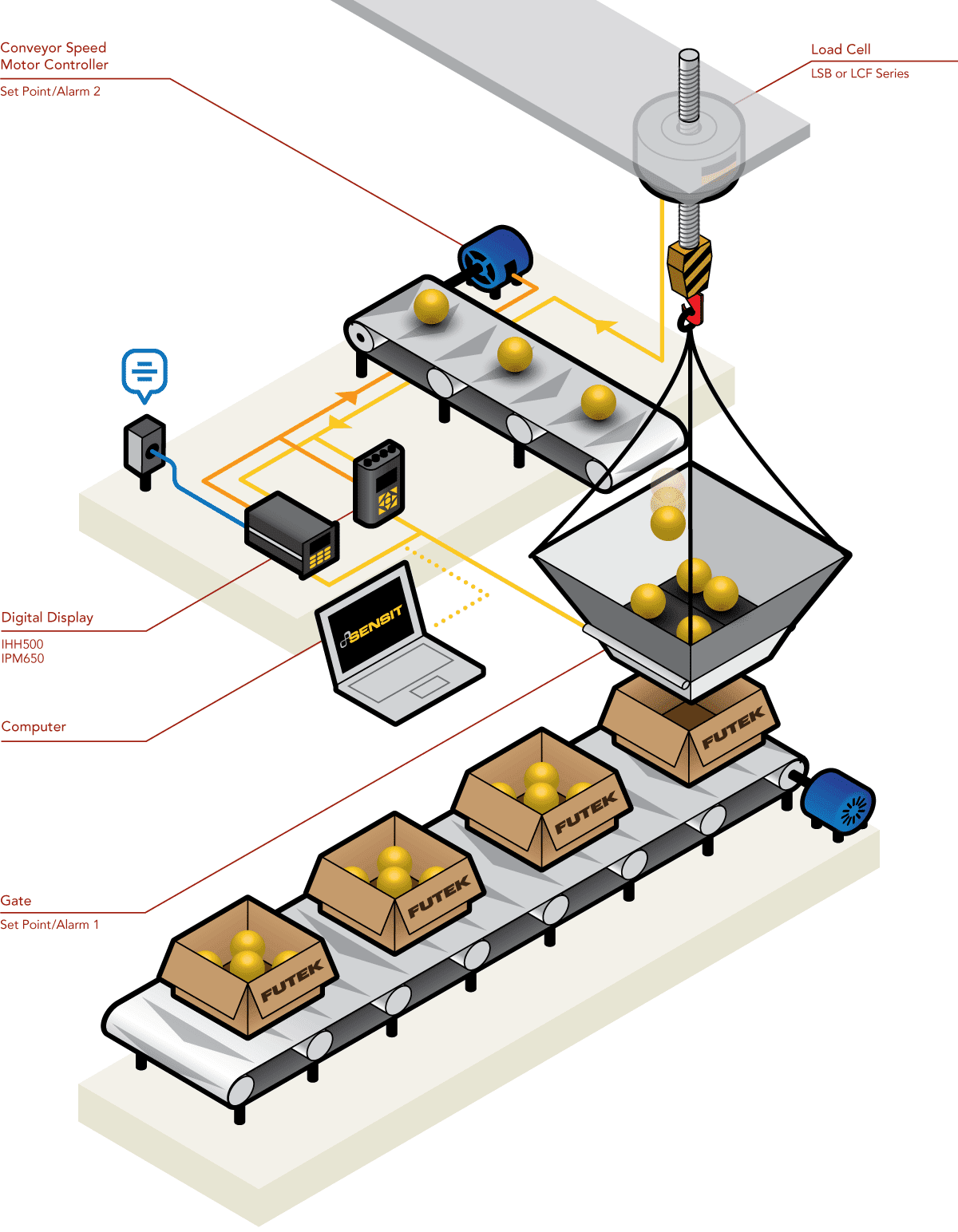

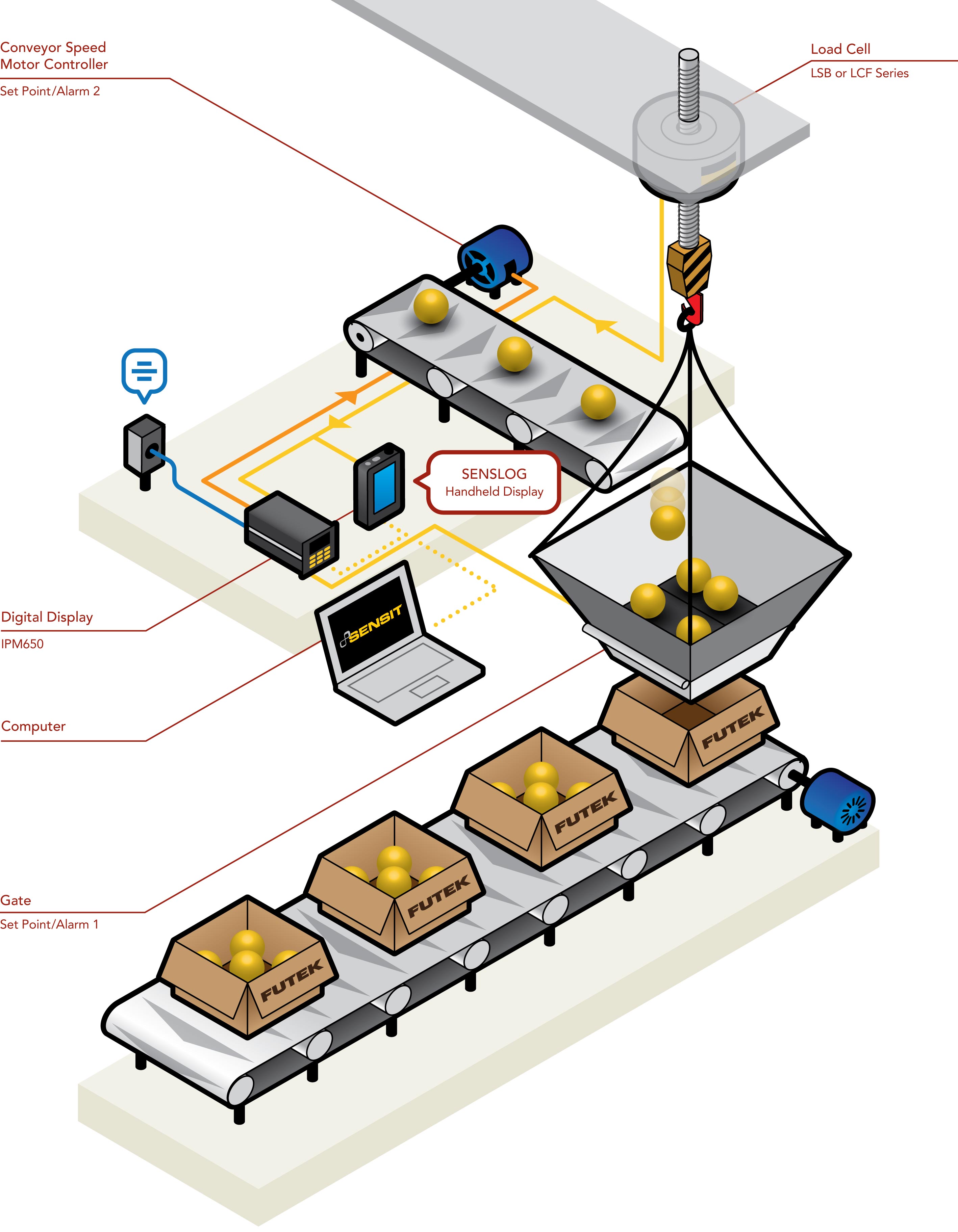

Load Cell - Industrial Automation Container Filling
How it Works
  1. To ensure equal quantities of a product are distributed into each box, a load cell in conjunction with specific instrumentation has been installed.
  2. The load cell itself is connected to the hanging distribution container to monitor the weight of each load released into each box.
  3. Once the upper conveyor belt has dispensed enough product into the distribution container, the instrument connected to the load cell will trigger a relay causing that upper conveyor to stop.
  4. This then immediately causes another relay to trigger, which releases the gates of the hanging distribution container allowing its contents to fill the box below.
  5. As soon as the gates of the distribution container close, the upper conveyor resumes motion, allowing for this automation process to begin again.
All FUTEK application illustrations are strictly conceptual. Please contact us with questions.
Load Cell - LSB SERIES - Jr. Miniature S-Beam Load Cell
LSB SERIES
Jr. Miniature S-Beam Load Cell
Load Cell - LCF SERIES - Pancake Load Cells
LCF SERIES
Pancake Load Cells
Load Cell - IHH500 - Intelligent Digital Hand Held Display
IHH500
Intelligent Digital Hand Held Display
Load Cell - IPM650 - Panel Mount Display
IPM650
Panel Mount Display
Load Cell - SOFTWARE - SENSIT™ Test and Measurement
SOFTWARE
SENSIT™ Test and Measurement
