QIA124 play_arrowQSH01968

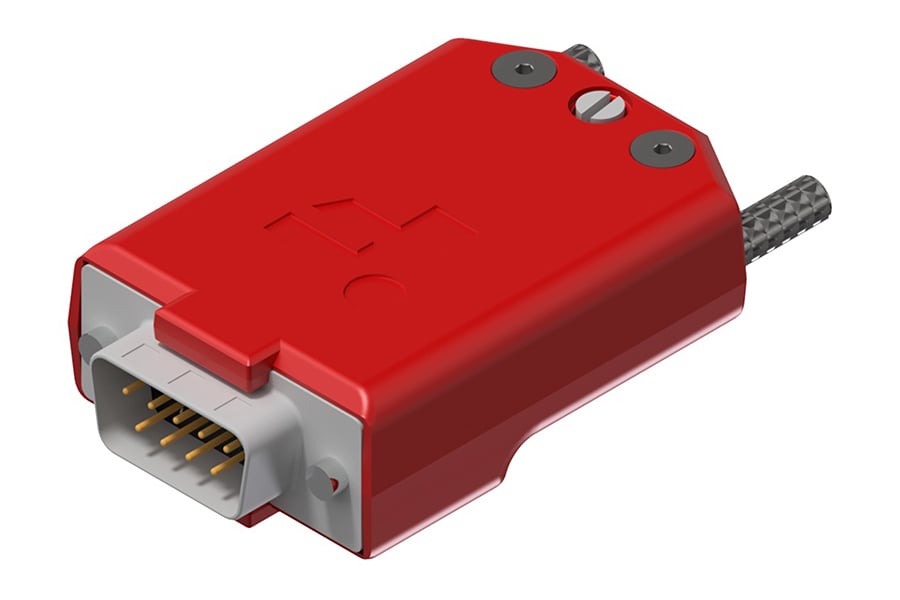

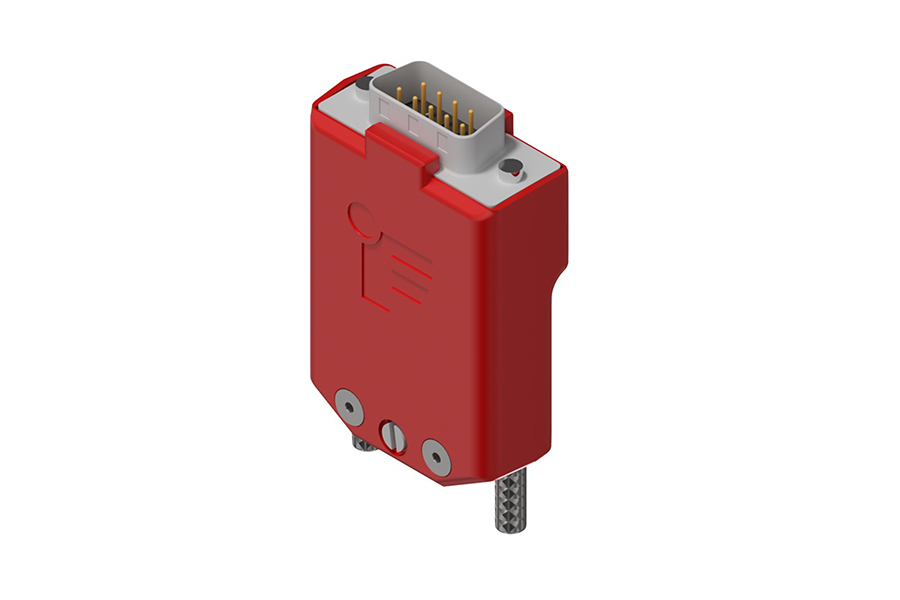

QIA124, Miniaturized and Digitally Configurable Voltage amplifier

QIA124 , Miniaturized Ultra Low Noise Strain Gauge Signal Conditioning Amplifier , Voltage Analog Output , +/- 2.5 VDC, +/-5 VDC, +/-10 VDC & More , 1 kHz Bandwidth , Male DB9 Connector **NOT Sold Alone. Requires Factory System Calibration*
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

QIA124, Miniaturized and Digitally Configurable Voltage amplifier

Features
Technical Documents
Resources
How to reduce electrical noise in your system
Resolution Calculator
Resolution Calculator
Specifications
Electrical
Performance
Set-up
Temperature
CHANNELMINTYPMAXUNIT
Bandwidth
1000
Hz
Bridge Resistance
700
5000
Ohms nom.
Excitation
10
Vdc
Input Range
1.5
5
mV/V nom.
Analog Output
-10
10
Vdc
Power Supply
16
24
Vdc
Operating Temperature
-4
122
F
