QLA

Filterskeyboard_arrow_right
# InStock
# OF AXIS
2 (2)
TEMPERATURE SHIFT ZERO
0.05 TSZ (2)
SAFE OVERLOAD
150 %RO (2)
DESCRIPTION
QLA100 , 875 lb , Low Profile Compression Column Load Cell , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long (1)
QLA105 , 5000 lb , Custom Thru Hole/Donut Load Cell w/ Large ID , 2 3/8" [60.3 mm] ID x 0.5' [12.7 mm] H , Material - 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long (1)
QLA106 , 30000 lb , Through Hole/Donut Load Cell with 1.79" [45.46 mm] ID , 3.48" [88.39 mm] OD x 1" [25.4] H , Material - 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long (1)
QLA107 , 1000 lb , Thru Hole/Donut Load Cell with Welded Washer , Material - 17-4 PH S.S. , 0.95" [24.1 mm] ID , 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long (1)
QLA110 , 1500 lb , Amplified Load Pin , Clevis Pin , Shear Pin Load Cell , 0.495" [12.57 mm] OD , 2.5 +/-2 VDC Analog Output , Material - 17-4 PH S.S. , Internal Amplifier , 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QLA115 , 100 lb , Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 1.0" [25.4 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (1)
QLA116 , 300 lb , Thru Hole/Donut Load Cell w/ #4-40 mounting holes , Standard , Material - 17-4 PH S.S. , 3/8-16-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (1)
QLA125 , 15 lb , Parallel Beam Shear Force Load Cell , RoHS Compliant , Replacement for Ishida NLC-6L , Material - 2024-T4 , M5x0.8-Thread , 26 Awg 4 Conductor Foil Shielded PVC Cable , 1 ft Long (1)
QLA127 , 50000 lb , Special High Temperature & Hardness Load Button Load Cell , RC 56-60 , Temp Comp. 60-270 F (15-132 C) , Material - 440C S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 40 ft Long (1)
QLA128 , 10000 N , Custom Load Button w/ M2.5x0.45 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder (1)
QLA128 , 5000 N , Custom Load Button w/ M2.5x0.45 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder (1)
QLA129 , 20000 N , Custom Load Button w/ M2.5x0.45 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder (1)
QLA129 , 50000 N , Custom Load Button w/ M2.5x0.45 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder (1)
QLA129 , 50000 N , Custom Load Button w/ Threaded Mounting Holes , 1 mV/V , -60 to 250 F [-51 to 121 C] , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long (1)
QLA132 , 20 N , Custom Wire Tension/Roller Tension Shear Force Load Cell , Supports Pulley w/ 8 mm Shaft , 500% Safe Overload Protection , Material - 2024-T4 , 28 Awg 4 Conductor Braided Shielded Clear PVC , 1 ft Long (1)
QLA133 , 150 lb , Custom Pancake Load Cell w/ Built in Advanced Amplifier , Amplified 0-10 VDC Compression , RoHS Compliant, Material - 17-4 PH S.S. , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P, With Custom Keyway (1)
QLA133 , 200 lb , Custom Pancake Load Cell w/ Built in Amplifier , Amplified 4-20 mA Compression , RoHS Compliant, Material - 2024-T4 , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P (1)
QLA135 , 1100 lb , Weld Through Force Load Cell Sensor , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long (1)
QLA135 , 4500 lb , Weld Through Force Load Cell Sensor , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long (1)
QLA146 , 15000 lb , Custom Compression Load Button Load Cell , Submersible in 15 psi of Non-Conductive Oil , w/ 40 ft Long , Material - 440C S.S. (1)
QLA149 , 500 lb , Female Thread Rod End Load Cell , OEM , Material - 2024-T4 , 3/8-24-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Cable (1)
QLA165 , 10 Kg , Digital Radial Lip Seal Force Indicator , DIN 3761-9 , Previously Q12387 (1)
QLA167 , 10 g , Ultra Low Capacity Compression Gram Load Cell , RoHS Compliant , Material - Aluminum, 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long (1)
QLA171 , 15000 lb , Cryogenic Compression Load Cell , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long (1)
QLA183 , 7500 lb , Idler Sheave Pin , Load Pin , Clevis Pin Load Cell , 1.999" [50.77 mm] OD , Material - 17-4 PH S.S. , 2" Shaft Long , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long (1)
QLA186 , 2500 lb , Xcite Load Cell , Welded SS Cover , Material - 17-4 PH S.S. , 3/8-24-Thread , 4 Pin Microtech Receptacle DR-4S , Includes 301 KOHM Resistor (1)
QLA186 , 5000 lb , Xcite Load Cell , Welded SS Cover , Material - 17-4 PH S.S. , 1/2-20-Thread , 4 Pin Microtech Receptacle DR-4S , Includes 301 KOHM Resistor (1)
QLA192 , 1500 lb , Amplified Load Pin , Clevis Pin , Shear Pin Load Cell , 0.495" [12.57 mm] OD , 2.5 +/-2 VDC Analog Output , Material - 17-4 PH S.S. , Internal Amplifier , 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QLA193 , 1500 lb , Amplified Load Sensing Clevis Pin , 0.5" OD , Replacement Load Pin for QLA110 (Q11834) , One Piece Flexure (1)
QLA199 , 20000 lb , Tension & Compression Load Cell , Similar to LCM375 , Material - 17-4 PH S.S. , 3/4-16-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long (1)
QLA200 , 250 lb , Custom Non-Magnetic Compression Load Button Load Cell , Material - 2024-T4 , Non-Magnetic , Axial Cable Exit , #29 AWG, 4 Conductor, Spiral Teflon, 6 in Long (1)
QLA206 , 20000 lb , Thru Hole/Donut Load Cell , RoHS Compliant, Material - 17-4 PH S.S. , 2.0" [50.8 mm] ID , Temperature Compensated -26 F to 160F [-32C to 71C ] , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long (1)
QLA208 , 500 lb , Collet Force , Pinch Sensor w/ Display , 0.79" [20.1 mm] OD , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 6 ft Long w/ Armor Guard Housing (1)
QLA209 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2.0" [50.8 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long (1)
QLA210 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2 1/2" [63.5 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long (1)
QLA212 , 500 lb , Collet Force Verification System , Designed to Calibrate QLA208 , Material - 17-4 PH S.S. , Standard (1)
QLA214 , 100000 N , Custom Load Button w/ M4x0.7 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder (1)
QLA215 , 10 lb , Parallelogram Load Cell , Similar to LSM300 , Material - 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA215 , 100 lb , Parallelogram Load Cell , Similar to LSM300 , Material - 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA215 , 5 lb , Parallelogram Load Cell , Similar to LSM300 , Material - 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA215 , 50 lb , Parallelogram Load Cell , Similar to LSM300 , Material - 2024-T4 , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA218 , Ch 1: 360 lb; Ch 2: 360 lb , Dual Bridge Load Cell w/ Amplified Output , Material - 6061-T6 , 18 AWG, 4 Conductor Cable , Genie 106766 , 14 in Long , 4 Pin Deutsch Connector (1)
QLA233 , 20000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 2.16 " [55 mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long (1)
QLA237 , 1000 lb , Thru Hole/Donut Load Cell (Q07567) , Material - 17-4 PH S.S. , 1.47" [37.3 mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long (1)
QLA237 , 250 lb , Thru Hole/Donut Load Cell (Q07567) , Material - 17-4 PH S.S. , 1.47" [37.3 mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long (1)
QLA237 , 500 lb , Thru Hole/Donut Load Cell (Q07567) , Material - 17-4 PH S.S. , 1.47" [37.3 mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long (1)
QLA238 , 40000 lb , Custom Thru/Hole Donut Load Cell , Roller , Material - 17-4 PH S.S. , 2.76" [70 mm] ID , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long (1)
QLA239 , 40000 lb , Custom Thru/Hole Donut Load Cell , Idler , Material - 17-4 PH S.S. , 3.7" [94 mm] ID , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long (1)
QLA243 , Ch 1: 1500 lb; Ch 2: 3000 lb , Custom Dual Range Compression Load Cell , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 2x 60 ft Long (1)
QLA246 , 250 N , Custom Cryogenic Inline Load Cell , Vacuum Compatible/Low Outgassing Compliant to ASTM E595 , -80 to 40 C Operating Temp. , S.S. , Female 1/4-28-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (1)
QLA247 , 1000 lb , Low Profile Thru Hole/Donut Load Cell w/ Welded Washer , 3.48 in [88.4 mm] OD x 2.37 in [60.2 mm] ID x 0.42 in [10.7 mm] H , 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long (1)
QLA249 , 10000 lb , Custom Thru Hole/Donut Load Cell , 3 mV/V , Material - 2024-T4 , 1 1/8-16-Thread , 5 Pin Bendix Receptacle MS3102A-14S-5P (1)
QLA249 , 2000 lb , Custom Thru Hole/Donut Load Cell , 3 mV/V , Material - 2024-T4 , 1 1/8-16-Thread , 5 Pin Bendix Receptacle MS3102A-14S-5P , (1)
QLA249 , 5000 lb , Custom Thru Hole/Donut Load Cell , 3 mV/V , Material - 2024-T4 , 1 1/8-16-Thread , 5 Pin Bendix Receptacle MS3102A-14S-5P (1)
QLA253 , 100000 lb , Amplified Load Washer Load Cell , 0.5-9.5 VDC Analog Output , Material - 17-4 PH S.S. , 1 1/4" [31.75 mm] ID x 2.5" OD x 1.5" H, TEDS (IEEE1451.4) Recognition , 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QLA253 , 100000 lb , Load Washer Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 1 1/4" [31.75 mm] ID x 2.5" OD x 1.5" H , TEDS (IEEE1451.4) Recognition , CC1T , 6 Pin Bendix Receptacle , PT02E-10-6P (1)
QLA254 , 2000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 3.2" [81.3 mm] ID , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long (1)
QLA255 , 2000 lb , Custom Thru Hole/Donut Load Cell (Compression and Tension) , 25 lb max load in Tension , Material - 2024-T4 , 8.0" [203 mm] ID , Previously Q10445 , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long (1)
QLA261 , 56000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 4.74 " [120.4 mm] ID , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long (1)
QLA267 , 60000 lb , Custom Compression Donut Load Cell , Material - 17-4 PH S.S. , 4.01" [101.9 mm] ID , 28 Awg 6 Conductor Shielded Polyurethane Cable , 10 ft Long (1)
QLA276 , 10000 N , 2 Prong Collet Compression Sensor , 1.693 in [43 mm] OD , Knurled Mounting/Gripping Surface , Material - 17-4 PH S.S. , 28 Awg, 6 Conductor Braided Shielded Polyurethane Cable , 3 ft Long (1)
QLA277 , 50000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 2 1/4" [57.2 mm] ID x 3.98" [101.1 mm] OD x 0.77" [19.8 mm] H , 28 Awg 4 Conductor Braided Shielded Clear PVC , 20 ft Long (1)
QLA278 , 1000 lb , Thru Hole/Donut Load Cell w/ Welded Washer , Material - 17-4 PH S.S. , 3.79" [96.3 mm] ID x 5.23" [132.8 mm] OD x 0.42" [10.7 mm] H , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long (1)
QLA284 , Ch 1/2/3/4: 200 lb, Ch 4: 200 lb , Tension & Compression Flight Rated Load Cell with 1000% Overload Protection , Material - 7075-T6 , 3/8-24-Thread , Quad Bridge , M27500 26 Awg cable with 2x D38999/26MB35Px Connector (1)
QLA285 , 15 lb , Ultra High Accuracy Parallel Beam Load Cell with Overload Protection , RoHS Compliant , Replacement for Ishida TLC-6L , Material - 2024-T4 , M5x0.8-Thread , 26 Awg 4 Conductor Foil Shielded PVC Cable , 8 in. Long (1)
QLA286 , 3000 lb , Tension & Compression In-line Load Cell , Material - 17-4 PH S.S. , 1/2-20-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , Axial Cable Exit Out of the Bottom , 10 ft Long (1)
QLA288 , 100000 lb , Custom Compression Load Cell with Flange Mount , Withstands 2000 psi Hydraulic Oil & up to 200 C, Material - 17-4 PH S.S., 29 Awg 4 Conductor Braided Shielded Silicone Cable , 4 ft Long (1)
QLA291 , 25000 lb , Heavy Duty Wire Rope Test Load Cell Male-Female Threads , Material - 17-4 PH S.S. , 2-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QLA291 , 30000 lb , Heavy Duty Wire Rope Test Load Cell Male-Female Threads , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QLA291 , 50000 lb , Heavy Duty Wire Rope Test Load Cell Male-Female Threads , 300% Ultimate Overload , Material - 17-4 PH S.S. , 1 1/2-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QLA292 , 25000 lb , Custom Donut Load Cell , Water Resistant , Material - 17-4 PH S.S. , 3.25" [82.6 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (Supersedes QSH01024-A) (1)
QLA293 , 20000 lb , Custom Donut Load Cell , Material - 17-4 PH S.S. , 2.13" [54.1 mm] ID with 2.44" [61.8 mm] Cbore x 0.98" [24.9 mm] Deep , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (Supersedes QSH01038) (1)
QLA294 , 10000 lb , Heavy Duty Wire Rope Test Load Cell Male-Male Threads , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QLA295 , Ch 1: 200 N; Ch 2: 200 N , Custom Cryogenic Donut Load Cell , Dual Bridge , Vacuum Compatible / Low Outgassing Compliant to ASTM E595 , Material - S.S. , 0.93 " [23.7 mm] ID , 4x Twisted Pair Cable , Axial Cable Exit , 3.3 ft Long (1)
QLA297, 25000 lb , Custom Ultra Low Profile Compression Load Cell , RoHS Compliant (Lead Free) , Material - S.S. , CMR-S1-E-04P Microcom Receptacle , Flat Mounting Surface (1)
QLA298 , 10000 N , Custom Donut Load Cell , Safe Overload 35000 N Temp Compensation Range 15 to 40 C , Material - 17-4 PH S.S. , 2.84" [72 mm] ID , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 6 ft Long (1)
QLA299 , 250 lb , Non-Ferrous/Non-Magnetic Load Cell , Material - Beryllium Copper , 30 Awg 4 Conductor Braided Shielded Teflon Cable , 5 Pin JST PHR-5 Connector , 21" Long (1)
QLA305 , 75000 lb , Custom Donut Load Cell , Material - 17-4 PH S.S. , 3.55" [90.2 mm] ID , Water Resistant , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , Axial Cable Exit Out of The ID , 10 ft Long (1)
QLA307 , 4000 lb , Custom Low Profile Column , Load Washer , Brake Caliper , Brake Pad Load Cell , 0.185" [4.7 mm] H, w/ Mounting Holes , 5 ft Silicone Cable (1)
QLA308 , 45000 lb [200 KN] , Custom Load Washer , 3.73" [94.7 mm] OD x 2.04" [51.8 mm] ID x 2.25" [57.2 mm] H , 40 ft PVC Cable (1)
QLA308 , 90000 lb [400 KN] , Custom Load Washer, 3.73" [94.7 mm] OD x 2.04" [51.8 mm] ID x 2.25" [57.2 mm] H, 40 ft PVC Cable (1)
QLA317, 1500 lb , Custom Load Cell , AN6 male 9/16-18 flare threads, 1.25" OD x 2.5" L, Temperature Compensate from -40 to 150 F, 5 ft cable (1)
QLA321 , 60 lb , Ultra High Accuracy Parallel Beam Load Cell , RoHS Compliant , Replacement for Ishida NLC-24L , Material - 2024-T4 , M5x0.8-Thread , 26 Awg 6 Conductor Foil Shielded PVC Cable , 8 in. Long (1)
QLA324 , 300 KN (67000 lb) , Custom Low Profile Thru Hole Donut Load Cell / Axial Load Ring , 5.51 in [140 mm] ID x 5.512 in [230 mm] OD x 0.984 in[25 mm] H , Material - 17-4 PH S.S. , 20 ft [6 m] long (1)
QLA328 , 18 lb , Custom Yoke Bending Beam Shear Force Load Cell , Side Mount , 2.873" [72.96 mm] Length , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 2 ft Long (1)
QLA328 , 18 lb , Custom Yoke Bending Beam Shear Force Load Cell , Top Mount , 2.873" [72.96 mm] Length , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 2 ft Long (1)
QLA329 , 15 lb , JR S-Beam Load Cell , Material - 17-4PH S.S , M4x0.7-Thread , Overload Protection , 26 Awg 4 Conductor Spiral Teflon Cable , 8 in. Long (1)
QLA329 , 50 lb , JR S-Beam Load Cell , Material - 17-4 PH S.S. , M4x0.7-Thread , Overload Protection , 26 Awg 4 Conductor Spiral Teflon Cable , 8 in. Long (1)
QLA335 , Ch 1: 1000 lb; Ch 2: 1000 lb , Tension & Compression Load Cell , Overload Protection , Dual Bridge , TEDS , Material - 17-4 PH S.S. , 5/8-18 Thread , 10 Pin Amphenol Receptacle, PC02-12-10P (1)
QLA335 , Ch 1: 2000 lb; Ch 2: 2000 lb , Tension and Compression Overload Protected Load Cell , Dual Bridge, TEDS, Material - 17-4 PH S.S. , 5/8-18 Thread , 10 Pin Amphenol Receptacle, PC02-12-10P (1)
QLA335 , Ch 1: 250 lb; Ch 2: 250 lb , Tension & Compression Load Cell , Overload Protection , Dual Bridge , TEDS , Material - 17-4 PH S.S. , 5/8-18 Thread , 10 Pin Amphenol Receptacle, PC02-12-10P (1)
QLA335 , Ch 1: 500 lb; Ch 2: 500 lb , Tension & Compression Load Cell , Overload Protection , Dual Bridge , TEDS , Material - 17-4 PH S.S. , 5/8-18 Thread , 10 Pin Amphenol Receptacle, PC02-12-10P (1)
QLA336 , 500 lb , Custom Miniature Load Button Column Load Cell w/ Male Threaded Base, Material - 17-4 PH S.S, M5x0.8 Thread , 34 Awg 4 Conductor Braided Cable , 30 ft Long (1)
QLA337 , 10 kg (22 lb) , Custom Medical Dual/Redundant Bridge Bag Weighing Load Cell , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA337 , 15 kg (33 lb) , Custom Medical Dual/Redundant Bridge Bag Weighing Load Cell , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA337 , 2.5 kg (5.5 lb) , Custom Medical Dual/Redundant Bridge Bag Weighing Load Cell , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 4 ft Long (1)
QLA337 , 25 lb , Custom Medical Dual/Redundant Bridge Bag Weighing Load Cell , RoHS Compliant , Dual Bridge , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA337 , 5 lb , Custom Medical Dual/Redundant Bridge Bag Weighing Load Cell , RoHS Compliant , Dual Bridge , PT1000 RTD, Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA339 , Custom 2 1/2" Ball Hitch Load Cell , 10000 lb , 4-20 mA (3 wire) Amplified Output , 2.9" [25.4 mm] OD , Ball Material of ASTM A36 & Base Material of 17-4PH S.S. , 6 Pin Bendix Connector (1)
QLA340, 200 lb , Radial Collet Force / Pinch Force Sensor , 0.188" [4.8 mm] OD , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , Axial Cable Exit , 10 ft Long (1)
QLA341 , 1000 lb , Custom Thru Hole Donut Load Cell , 1.8" [45.7 mm] ID x 2.675" [68 mm] OD x 0.5" [12.7 mm] H , Vibration Rated , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long (1)
QLA341 , 1000 lb , Custom Thru Hole Donut Load Cell w/ 4-20 mA Amplifier , 1.8" [45.7 mm] ID x 2.675" [68 mm] OD x 0.5" [12.7 mm] H , Vibration Rated , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 18 in Long , Molex Connector (1)
QLA343, 40000 lb , Custom Load Washer Load Cell , Material - 17-4 PH S.S. , 1.53" [38.9 mm] ID x 1.25" Height [31.8 mm] , 28 Awg 4 Conductor Braided Shielded PVC Cable , 30 ft Long (1)
QLA348 , 175 lb , Parallel Beam Load Cell , Material - 2024-T4 , M5x0.8-Thread, 26 Awg 6 Conductor Foil Shielded PVC Cable , 38 in. Long with 6 pin JST female connector , ISHIDA DLC-80L Replacement (1)
QLA349, 1500 lb , Custom OEM Male Threaded Rod End Load Cell , Material - 2024-T4 , 3/8-24-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Cable (1)
QLA350 , 100 lb , Parallelogram Load Cell , RoHS Lead Free , Material - 2024-T4 , M4x0.7-Thread , Overload Protection , 28 Awg 6 Conductor Braided Shielded Poly Cable , 900 mm Long (1)
QLA350 , 50 lb , Parallelogram Load Cell , RoHS Lead Free , Material - 2024-T4 , M4x0.7-Thread , Overload Protection , 28 Awg 6 Conductor Braided Shielded Poly Cable , 900 mm Long (1)
QLA352 , 1000 lb , Custom Low Profile Donut/Through Hole/Washer Load Cell , 2.615" 66.4 mm] ID x 3.49" [88.6 mm] OD x 0.5" [3.8 mm] H , Vibration Environment , 4-20 mA Current Output , PVC Cable , 1.5 ft Long (1)
QLA352 , 1000 lb , Custom Low Profile Donut/Through Hole/Washer Load Cell , 2.615" 66.4 mm] ID x 3.49" [88.6 mm] OD x 0.5" [3.8 mm] H , Vibration Environment , Silicone Cable , 5 ft Long (1)
QLA354 , 100 lb , Extreme High Temperature Compression Load Cell , 1800 psi (124 bar) Max Pressure , 500 F (260 C) Max Operating Temperature , Autoclavable , 3 ft Inconel Sheathed Cable with Lemo Plug (PHG.00.304) (1)
QLA355, 250 lb, Custom Fast Response Tension & Compression Load Cell, Material - 17-4PH S.S. , 1/2-20-Thread , 6 Pin Bendix PT02E-10-6P (1)
QLA355, 500 lb, Custom Fast Response Tension & Compression Load Cell, Material - 17-4PH S.S. , 1/2-20-Thread , 6 Pin Bendix PT02E-10-6P (1)
QLA356 , 250 lb , Custom Cryogenic Flight Rated / Vacuum Compatible / Low Outgassing Tension & Compression Load Cell , Quad Bridge , Material - 15-5 PH S.S. , 1/4-28-Thread , 26 Awg M27500-26TM4S09 Cable, 14 ft long, (Engineering Units) (1)
QLA357 , 5 lb , Parallelogram Beam Load Cell , Material - 2024-T4 , #10-32-Thread , Overload Protection , RoHS Lead Free, 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Long (1)
QLA359 , 15 lb , Custom Side/Shear Force Load Cell w/ OVerload Protection & Axial Cable Exit , 28 Awg, 4 Conductor Braided Shielded PVC Cable Exiting Out of Bottom , 3 ft Long (1)
QLA361 , 10 Kg , Parallel Beam Load Cell , Material - 2024-T4 , M8x1.25-Thread , 24 Awg 4 Conductor Braided Shielded PVC Cable , 11 in. Long , Hayssen A0356C0009 (1)
QLA362 , 3 Kg , Parallel Beam Load Cell , Material - 2024-T4 , M8x1.25-Thread, Overload Protection, 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long , Hayssen A0227D0016 (1)
QLA367 , 100 lb , Load Button Load Cell , Special Full Circuit Gauge , IEEE1451.4 TEDS , #6-32 Bottom Tapped Holes , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided PVC Cable , 13 in with 7 pin 1.25mm Clik-Mate Molex Connector (1)
QLA368 , 40 lb , Custom Low Profile Beam Load Cell Designed for Laparoscopic Tool (MIS) Calibration/Verification , 0.217" [5.51 mm] Height , Material - 17-4PH , 34 Awg 4 Conductor Braided Cable , 5 ft Long (1)
QLA370 , 1200 lb , Custom Through Hole Tension & Compression Load Cell , Material - 17-4 PH S.S. , M6x1-Thread & 0.98" [25 mm] ID , 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QLA371, 5000 lb, Custom Compression Donut Load Cell, Material - 17-4 PH S.S., 5.68" [144 mm] OD x 4.25" [108 mm] ID, 24 Awg 4 Conductor Braided Shielded Teflon Cable , 2 inch Long to 4 Pin Lemo PHG.0B.304.CLLD (CC4) (1)
QLA372, 3000 lb , Compression Load Cell , RoHS, Water Resistant, Material - 17-4 PH S.S. , M10x1.5 Thread , 29 Awg 4 Conductor Spiral Shielded Silicone 6 ft Long w/ Molex Connector, Mated to Amplifier (0.5-4.5) w/ 5 Pin Molex (70543-0003) (1)
QLA372, 3000 lb , Ten & Com Load Cell , RoHS, Water Resistant, Material - 17-4 PH S.S. , M10x1.5 Thread , 29 Awg 4 Conductor Spiral Shielded Silicone 6 ft Long w/ Amplifier (2.5 VDC Zero +/-2 VDC Output) w/ 29 Awg Silicone 2 ft Long (1)
QLA373 , 50000 lb , Custom Low Profile Load Cell , Fatigue Rated , Material - 17-4 PH S.S. , 5.827" [148 mm] ID x 10.71" [272 mm] OD x 1.97" [50 mm] H , 6 Pin Bendix Receptacle , PT02E-10-6P (1)
QLA374 , 50000 lb , Custom Compression Pancake Load Cell , Material 17-4 PH S.S. , M8x1.25 , 6 Pin Bendix Receptacle MS3102-14S-6P (1)
QLA376 , 15 lb , Parallelogram Load Cell , RoHS , Dual Bridge , Material - 2024-T4 , #10-32-Thread , Overload Protection , 26 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
QLA378 , 15 lb , Ultra High Accuracy Robust Parallelogram Beam Load Cell , 2024-T4, M5x0.8-Thread , RoHS Compliant , IPC620 , 28 Awg 4 Conductor PVC Cable , 6.9 in. Long w/ Molded RJ11 6P/4C Connector , Normalized Output 1.9 +/-0.03 mV/V (1)
QLA381 , 1000 g , Compression Load Cell (Miniature/Inline Threaded) , 1000 ohm Resistance , Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long (1)
QLA381 , 1000 g , Tension & Compression Load Cell (Miniature/Inline Threaded) , Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long (1)
QLA383 , 1000 g , Force Load Cell w/ Hirose 12 Pin Receptacle , 66.8 mm OD x 6.98 mm H , 5 point Compression Calibration , w/ Mating 29 Awg 4 Conductor Spiral Shielded Silicone Cable/Connector Package , 5 ft Long, w/ 3x USB220 (1)
QLA383 , 1000 g , Low Profile Force Plate Calibration Tripod For Touch Screens , 67 mm OD x 7 mm H , 5 point Compression Calibration , w/ Mating Silicone Cable/Connector Package , 5 ft Long, w/ 3x IAA100 for 0-10 VDC Output (1)
QLA383 , 1000 g , Low Profile Portable Calibration Tripod , Material - Aluminum, Hirose 12 Pin Receptacle (1)
QLA384 , 100 lb , Custom Compression Flange Mount Load Cell , RoHS , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Cable , 6 in Long (1)

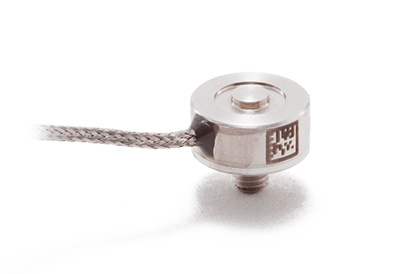

QLA385 , 100 lb , Custom Compression Load Button Load Cell w/ M3x0.5 Mounting Stud , RoHS , Material - 17-4 PH S.S. , 34 Awg 4 Conductor Braided Cable , 5 ft Long (1)
QLA386 , 500 lb [2220 N] , Custom Tension & Compression Flange Mount Load Cell w/ Digital RS232 Output , Material - 17-4 PH S.S , M8X1.25 Threads , 12 Pin Microcom Connector (1)
QLA387 , 500 lb , Custom Subminiature Load Button , Material - 17-4 S.S. , RoHS Compliant , 34 Awg 4 Conductor Braided Shielded Cable,Teflon Conductors, 5 ft [1.5 m] Long (1)
QLA388 , 100 kg , Smart Compression Load Probe Actuator Cartridge Load Cell w/ TEDS Auto Recognition , IP69K , Rated for 6 Bar of Constant Pressure , O-Ring Seals , Material - 17-4 PH S.S., 6 Pin Turck Receptacle (1)
QLA388 , 220 lb , Load Probe w/ 71 mm Shaft , TEDS , Material - 17-4 PH S.S. , 30 Awg Braided Shielded Cable , 10 ft Long (1)
QLA388 , 220 lb , Load Probe w/ 75 mm Shaft , TEDS , Material - 17-4 PH S.S. , 30 Awg Braided Shielded Cable , 10 ft Long (1)
QLA388 , 50 Kg , Smart Compression Load Probe Cartridge w/ auto Recognition, Material - 17-4 PH S.S., Turck 6 Pin Receptacle (1)
QLA389 , 50 kg , Smart Compression Load Probe Shaft Cartridge w/ Auto Recognition, Material - 17-4 PH S.S., Turck 6 Pin Receptacle (1)
QLA391 , 2000 lb , Flange Mount Thru Hole Spindle Load Cell For NSK BSF1462 Ball Screw Bearing , Tension & Compression , 1.38" [35 mm} ID w/ M6x1 Threads , Material 17-4 PH S.S. , 4-20 mA Current Output , 6 Pin Bendix PT02E-10-6P (1)
QLA392 , 15000 lb , Flange Mount Thru Hole Compression Load Cell , 2.91" [74 mm] ID w/ M6x1 Threads x 6.2" [157.5 mm] x 1.02" [26 mm] H , Material 17-4 PH S.S. , w/ Integrated Amplifier 4-16 mA , Bendix PT02E-10-6P (1)
QLA393 , 1000 lb , Custom Flange Style Thru Hole Load Cell w/ ID Lobe Pockets , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.375" [9.5 mm] H , 29 Awg 4 Cond Spiral Shielded Silicone , 10 ft Long (1)
QLA394 , 1200 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 3.30" [83.8 mm] ID x 5.5" [139.7 mm] OD x 0.5" [12.7 mm] H , 26 Awg 4 Conductor Braided Shielded Teflon Cable, 10 ft Long (1)
QLA396 , 1000 lb , Custom Square Flange Mount Thru Hole Tension and Compression Load Cell , 0.1878" [4.77 mm] ID x 0.625" [15.88 mm] H , RoHS Compliant , Material - 17-4PH S.S. , 28 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long (1)
QLA396 , 1500 lb , Custom Square Flange Mount Thru Hole Tension and Compression Load Cell , 0.1878" [4.77 mm] ID x 0.625" [15.88 mm] H , RoHS Compliant , Material - 17-4PH S.S. , 28 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long (1)
QLA397, 1000 lb , Subminiature Load Button , Submersible , IP67 , Material - 17-4 PH S.S. , RoHS Compliant, 30 Awg 7 Conductor Braided Shielded Red Polyurethane Cable , 3 ft Long (1)
QLA399, 300 g , Digital OEM Load Cell Scale w/ High Resolution RS232 Output , Material 2024-T4 , #10-32-Thread , Overload Protection , 6 Pin Molex Connector (1)
QLA401 , 175 lb , Custom Surgical Grade OEM Autoclavable/Sterilizable/Biocompatible Thru Hole Load Cell , IP69K , RoHS Compliant , Material - Inconel , 5 Pin Header (1)
QLA402 , 175 lb , Custom Surgical Grade OEM Autoclavable/Sterilizable/Biocompatible Load Button Load Cell , IP69K , RoHS Compliant , Material - Inconel , 5 Pin Header (1)
QLA404, 1000 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.25" [6.4 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long (1)
QLA405 , 50 lb , Custom Miniature Tension & Compression Thru Hole Flange to Flange Mount Load Cell , Material - 17-4 PH S.S. , 18 mm OD x 6.3 mm ID x 9 mm H , FFC 4 Conductor 0.05 mm Pitch Cable , 4" [100 mm] Long (1)
QLA405 , 50 lb , Custom Tension and Compression Miniature Sensor w/ SPI and UART Digital Output , Material - 17-4 PH Stainless Steel , Mated to QIA126 Digital Controller (1)
QLA405 , 50 lb , Custom Tension and Compression Miniature Sensor w/ SPI and USB Digital Plus Analog Output , Material - 17-4 PH Stainless Steel , Mated to IDC305 Digital Controller (1)
QLA407 , 1000 lb , Custom Square Flange Mount Thru Hole Load Cell , 1.38" [35 mm] ID x 0.472" [12 mm] H , RoHS Compliant, Material - 17-4PH S.S. , 4 Pin M8 Receptacle (1)
QLA408, 1000 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 2.5" [63.5 mm] ID x 4.625" [117.48 mm] OD x 0.50" [12.7 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long (1)
QLA409 , 800 lb , Custom Female Thread Mounted Load Cell w/ Axial Cable Exit , RoHS Compliant , Material - 17-4PH S.S. , M12x1.75 -Thread , 0.1 - 5.1 VDC Amplified Output , 28 Awg 4 Conductor Braided Shielded PVC , 1 ft Long (1)
QLA410, 1600 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S., 1.89" [48 mm] Chamfered ID x 4" [101.6 mm] OD x 0.29" [7.35 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long (1)
QLA413, 1000 lb , Custom Flange Style Thru Hole Load Cell, Material - 17-4ph S.S. ,Shear & Moment Resisting , 2.13" [54 mm] ID x 4" [101.6 mm] OD x 0.38" [9.5 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long (1)
QLA414 , 10 lb , Nano Inline Thru Hole Load Cell Gen 3, M1x0.25-Thread , RoHS Compliant , Material - 17-4 PH S.S. , 4 Pin 0.5 mm Pitch Flex Cable with Radial Exit , 3 in Long (1)
QLA414 , 10 lb , Nano Inline Thru Hole Load Cell Gen 3, M1x0.25-Thread , RoHS Compliant , Material - 17-4 PH S.S. , 4 Pin 0.5 mm Pitch Flex Cable with Radial Exit , 3 in Long, RFID (1)
QLA414 , 5 lb , Nano Inline Thru Hole Load Cell , M1x0.25-Thread , RoHS Compliant , Material - 17-4 PH S.S. , 4 Pin 0.5 mm Pitch Flex Cable with Radial Exit , 3.8 in Long (1)
QLA414 , 5 lb , Nano Inline Thru Hole Load Cell Gen 3, M1x0.25-Thread , RoHS Compliant , Material - 17-4 PH S.S. , 4 Pin 0.5 mm Pitch Flex Cable with Radial Exit , 3 in Long (1)
QLA414 , 5 lb , Nano Inline Thru Hole Load Cell Gen 3, M1x0.25-Thread , RoHS Compliant , Material - 17-4 PH S.S. , 4 Pin 0.5 mm Pitch Flex Cable with Radial Exit , 3 in Long , RFID (1)
QLA414, Nano Inline Thru Hole Load Cell , 5LB Capacity , M1x0.25-Thread , RoHS Compliant , Material - 17-4 PH S.S. , Shorty Flex with 4x Solderable Conductors (1)
QLA415 , 5 lb , Sub-Miniature Custom Autoclavable Compression Load Cell w/ Male Thread , IP69K , Submersible/Water Resistant , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 6 in Long (1)
QLA416 , 5 lb , Sub-Miniature Custom Load Cell with O-Ring Groove , RoHS Lead Free, Sensor Material - Anodized 2024-T4 Aluminum , M3x0.5-Thread , 29 Awg 4 Conductor Braided Cable, 10 ft Long (1)
QLA417 , 50 lb , Custom Miniature Flange Style Load Cell w/ Differential +/-3 VDC Analog Output , RoHS Compliant , 17-4 PH S.S. Material , 4.7 in Long Cable w/ JST SHR-05V-S-B Connector (1)
QLA417 , 50 lb , Custom Miniature Flange Style Load Cell w/ Differential +/-3 VDC Analog Output and Fault Detection, RoHS Compliant , 17-4 PH S.S. Material , 4.7 in Long Cable w/ JST SHR-05V-S-B Connector (1)
QLA417 , 50 lb , Custom Miniature Shear Force Load Cell w/ Integrated TEDS IEEE1451.4 Recognition & Temperature Sensor , RoHS , 17-4 PH S.S. , M2.5x0.45-Thread , 34 Awg 7 Conductor Silver Plated, Braided Shielded Silicone Cable , 1 ft long (1)
QLA418 , 60000 lb , Custom Load Washer Thru-Hole Donut Load Cell , Material - 17-4 PH S.S. , 0.75" [194. mm] ID x 1.62" [41.1 mm] OD x 1.3" [33 mm] H , 4 Pin M9 Receptacle (1)
QLA420, Beefcake Sensor, 30lb Capacity, Integrated SPI Digital Output (1)
QLA422 , 1000 lb , Custom Ultra Light Miniature Universal Inline Male Threaded Load Cell , Vacuum / Radiation Compatible , 15-5 PH S.S. , 3/8-24-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long , (Similar to LCM200) (1)
QLA422 , 1000 lb , Custom Ultra-Light Miniature Universal Inline Flight Rated Load Cell , Vacuum / Radiation Compatible , Material - 15-5 PH S.S. , 3/8-24 UNJF-3A Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long (1)
QLA424 , 30 lb , Micro Nano Load Button Load Cell , 0.154" [3.91 mm] OD x 0.167" [4.24 mm] H , Welded Packaging , Radial Cable Exit , 2 in Long (1)
QLA427 , Nano Smart Crimp Surgical Tool Wire Tension Load Cell , 30 lb , Radial Cable Exit , Welded Packaging , RoHS Compliant , Pre-attached 0.43 in [11 mm] Tungsten Wire (1)
QLA429 , 5000 lb , Custom Thin Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , Non-RoHS , 2.25" [57.2 mm] ID x 2.67" [67.9 mm] OD x 0.33" [8.4 mm] H , 29 Awg 4 Conductor Spiral Shielded Teflon , 10 ft Long, Submersed in Kerosene (1)
CUSTOM SPECIAL
N (60)
Y (120)
180 Products

Custom Load Cells manufactured in the US by FUTEK Advanced Sensor Technology (FUTEK), a leading manufacturer producing a huge selection of Custom Force Sensors, utilizing one of the most advanced technologies in the Sensor Industry: Metal foil strain gauge technology.

Since 1988, FUTEK's in-house multidisciplinary engineering team has been engaged in hundreds of custom load cell design programs, ranging from aerospace mission-critical NASA programs to miniature surgical robot sensors. Our custom sensor design approach takes care of all phases of the project: from the early custom sensor design inputs, prototype / pilot run, design for manufacturability reviews (preliminary, critical, and final), high-volume production build phase all the way to the assembly and integration in the end-user final product/system.

custom load cells custom load transducer custom force sensor custom load cell design bespoke load cell
Fig. 1: Benefits of early engagement with FUTEK for your force measurement sensor design program.

Benefits of early engagement on OEM / Custom Load Cell projects:

  • Save money and resources
  • Enhance your application performance
  • Optimize the mounting configuration
  • Maximize ease of manufacturability

Our world-class electronics take your custom sensor performance to new heights. The earlier you engage with us on your next custom load cell design project (aka bespoke load cell), the more capabilities we can squeeze in, including:

  • Ability to customize PEC geometry and interconnectivity
  • Safety and fault detection features for maximum reliability
  • System integration with in-situ calibration with sensor
  • Design for low power consumption

You gain a lot of value by engaging early with us for your OEM applications. What happens when you engage late in the game?

  • Constrained sensor geometry
  • Limited mounting configurations
  • Limited components procurement
  • Expediting fee for POs
  • Costly design changes

Reach out to our Application Engineers today and discuss how you can benefit from our 30+ years of know-how in the force measurement industry.

2 Prong Collet Sensor

QLA276

Amplified Load Sensing Clevis Pin

QLA110

Amplified Load Sensing Clevis Pin

QLA192

Amplified Load Sensing Clevis Pin

QLA193

High Capacity Load Washer Load Cell

QLA253

Beef Cake Sensor

QLA420

Collet Force Measuring Sensor

QLA340

Collet Force Sensor w/ Display

QLA208

Collet Force Verification System

QLA212

Compression Gram Load Cell (No Amplifier Included)

QLA167 milligram load cell 10g 10 grams load cell low capacity load cell
QLA167

Cryogenic Compression Load Cell

QLA171

Cryogenic Donut Load Cell

QLA295

Custom Autoclavable Load Button Load Cell

QLA402

Custom Autoclavable Thru Hole Washer Load Cell

QLA401

Custom Axial Load Ring

Ring Load Cell donut load cell
QLA324

Custom Beam w/ Load Button

QLA368

Custom Bending Beam Load Cell

QLA328

Custom Compression Donut Load Cell

QLA371

Custom Compression Load Cell

QLA146

Custom Compression Load Cell

QLA267

Custom Compression Load Cell

QLA288

Custom Compression Pancake Load Cell

QLA374

Custom Cryogenic Load Cell

QLA246

Custom Diaphragm Load Cell Immune to Moment and Shear Loads

QLA394

Custom Donut Load Cell

QLA292

Custom Donut Load Cell

QLA293

Custom Donut Load Cell

QLA298

Custom Donut Load Cell

QLA305

Custom Donut Load Cell

QLA341

Custom Donut Load Cell

QLA352

Custom Dual Bridge Parallelogram Load Cell

Dual Bridge Load Cell Custom High Reliability and Accuracy dual channel load cell
QLA337

Custom Dual Range Compression Load Cell

QLA243

Custom Female Thread Mounted Load Cell

QLA409

Custom Flange Style Thru Hole Load Cell

QLA404

Custom Flange Style Thru Hole Load Cell

QLA408

Custom Flange Style Thru Hole Load Cell

QLA410

Custom Landing Gear Load Cell

QLA339

Custom Laod Cell, Through hole

QLA370

Custom Load Button Load Cell

QLA354

Custom Load Button Load Cell with TEDS

QLA367

Custom Load Button w/ Threaded Mounting Holes

QLA128

Custom Load Button w/ Threaded Mounting Holes

QLA129

Custom Load Button w/ Threaded Mounting Holes

QLA214

Custom Load Cell

QLA317 Custom In Line Thru Hole Load Cell
QLA317

Custom Load Washer Load Cell

QLA308

Custom Load Washer Load Cell

QLA343

Custom Low Profile Load Washer

QLA307

Custom Male Threaded Rod End Load Cell

Small Diameter OEM Inline Tension and Compression Load Cell w/ Male Threads
QLA349

Custom Miniature Column Load Cell

QLA297

Custom Miniature Shear Force Load Cell

QLA417

Custom Miniature Load Column Load Cell w/ Male Thd

QLA336

Custom Non-Magnetic Compression Load Cell

QLA200

Custom Pancake Load Cell w/ Built in Amplifier

QLA133

Custom Parallelogram Load Cell w/ Overload Protection

QLA350

Custom Side Force Load Cell

QLA359

Custom Square Body Center Flange Load Cell

QLA396

Custom Square Body Center Flange Load Cell

QLA407

Custom Subminiature Load Button

QLA387

Custom Tension and Compression Load Cell

QLA355

Custom Tension and Compression Load Cell, Quad Bridge

Custom Cryogenic Flight Rated Quad Bridge Load Cell
QLA356

Custom Tension and Compression Loadcell with Digital Output

QLA386

Custom Tension and Compression Miniature Sensor

QLA405

Custom Tension & Compression Load Cell, w/ External Amplifier

QLA372

Custom Tension & Compression Load Cell, Fatigue Rated

QLA373

Custom Thru Hole/Donut Load Cell (Compression and Tension)

QLA255

Custom Thru Hole/Donut Load Cell

QLA233

Custom Thru/Hole Donut Load Cell

QLA238

Custom Thru/Hole Donut Load Cell

QLA239

Custom Thru Hole/Donut Load Cell

QLA249

Custom Thru Hole/Donut Load Cell

QLA254

Custom Thru Hole/Donut Load Cell

QLA261

Custom Thru Hole/Donut Load Cell

QLA277

Custom Wire Tension Load Cell

QLA132

Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant

QLA413

Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant

QLA393

Donut/Thru Hole Load Cell

QLA209

Donut/Thru Hole Load Cell

QLA210

Dual Bridge Load Link w/ Amplified Output

QLA218

Dual Bridge S-Beam Load Cell

QLA284

Female Thread Rod End Load Cell

QLA149

Flange Mount Custom Loadcell

QLA384

Heavy Duty Wire Rope Test Load Cell Male-Female Threads

QLA291

Heavy Duty Wire Rope Test Load Cell Male-Male Threads

QLA294

Idler Sheave Pin Load Cell

QLA183

Low Profile Compression Load Cell

QLA100

Low Profile Portable Calibration Tripod

load cell calibration kit Force sensor calibration kit
QLA383

Micro Miniature Universal Load Cell

QLA381

Miniature Threaded Load Cell

QLA415

Nano Force Sensor

QLA414 nano micro force sensor load cell
QLA414

Non-Ferrous/Non-Magnetic Compression Load Button Load Cell

QLA299

Parallel Beam Load Cel

QLA348

Parallel Beam Load Cell w/ Overload Protection

QLA321

Parallel Beam Load Cell with Overload Protection

QLA362

Parallel Beam Load Cell

QLA125

Parallel Beam Load Cell

QLA285

Parallel Beam Load Cell

QLA361

Parallel Beam Load Cell

QLA378

Parallelogram Load Cell, Dual Bridge

QLA376

Parallelogram Load Cell with High Resolution RS232 Output

QLA399

Parallelogram Load Cell

QLA215

Parallelogram Load Cell

QLA357

Position Detection and Shear Sensor

QLA155

Custom Load Washer Load Cell

QLA418

Custom Inline Load Cell, Vacuum / Radiation Proof

QLA422

Nano Load Button Load Cell

QLA424_Nano Load Button
QLA424

Nano Monolithic Crimp Load Cell

Nano Smart Crimp Inline Tension Load Cell with Tungsten Wire for Robotic Surgery Tools
QLA427

Custom Donut/Through Hole Load Cell

Custom Ultra Thin Through Hole/Donut/Washer Load Cell
QLA429

Radial Lip Seal Force Indicator

QLA165

Custom JR S-Beam Load Cell

Miniature Inline M4 Threaded Load Cell w/ Overload Protection
QLA329

Smart Compression Load Probe Cartridge w/ Auto Recognition

QLA388

Smart Compression Load Probe Shaft Cartridge w/ Auto Recognition

QLA389

Special High Temperature & Hardness Load Button Load Cell

QLA127

Sub-Miniature Custom Loadcell with Integrated Bellow and Customer Plate

QLA416

Submersible Load Button Load Cell

QLA397

Subminiature Custom Load Button with Mounting Stud

QLA385

Tension and Compression Overload Protected Load Cell

QLA335

Tension & Compression In-line Load Cell

QLA286

Tension & Compression Load Cell

QLA199

Through Hole Load Cell w/ Integrated Amplifier 15klb

QLA392

Through Hole Load Cell w/ Integrated Amplifier

QLA391

Thru Hole/Donut Load Cell w/ #4-40 mounting holes

QLA116

Low Profile Custom Thru Hole/Donut Load Cell

QLA105

Thru Hole/Donut Load Cell with 1.79 ID

QLA106

Thru Hole/Donut Load Cell

QLA115

Thru Hole/Donut Load Cell

QLA206

Thru Hole/Donut Load Cell

QLA237

Thru Hole/Donut Load Cell with Welded Washer

QLA107

Thru Hole/Donut Load Cell w/ Welded Washer

QLA247

Thru Hole/Donut Load Cell w/ Welded Washer

QLA278

Weld Through Force Sensor

QLA135

Xcite Load Cell

QLA186
Multi Axis Sensor, Force, Torquestore custom-sensors-and-instruments load-cells-force-sensors
+
+
+
+
+
+
Z540-1 ANSI Certified17025 ISO Certified9001 ISO Certified13485 ISO CertifiedU.S. Manufacturer
+
Please follow us on linked inPlease follow us on twitterPlease follow us on youtubePlease Email us for additional info
+
10 Thomas, Irvine,
CA 92618 USA
Tel: (949) 465-0900
All other trademarks, service marks and logos used in this website are the property of their respective owners.
© 1998–2023 FUTEK Advanced Sensor Technology, Inc. All rights reserved.
Privacy Policy|Terms And Conditions
