QLA418 play_arrowQSH02104

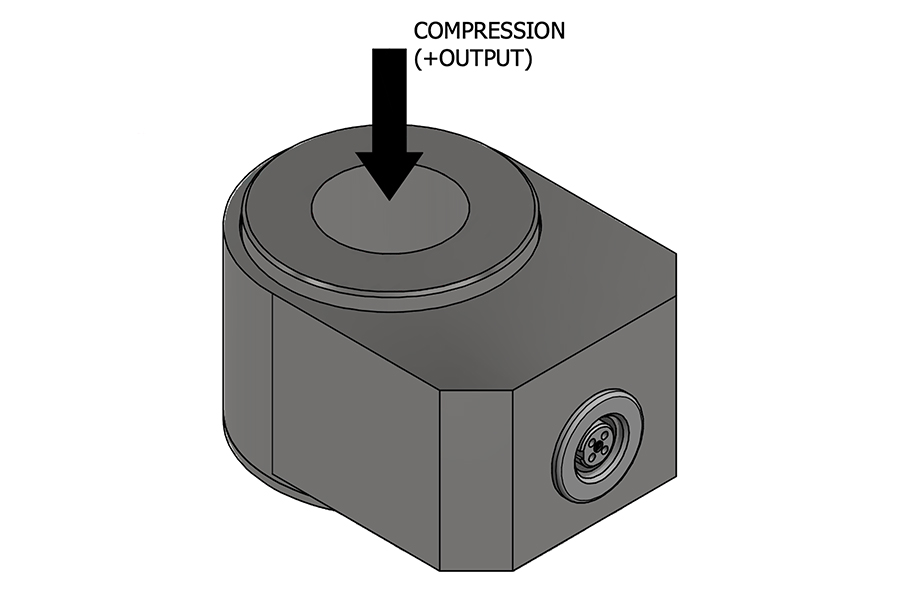

Custom Load Washer Load Cell

QLA418 , 60000 lb , Custom Load Washer Thru-Hole Donut Load Cell , Material - 17-4 PH S.S. , 0.75" [194. mm] ID x 1.62" [41.1 mm] OD x 1.3" [33 mm] H , 4 Pin M9 Receptacle
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
QLA418
QLA418
Description
Features
Technical Documents
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Shunt Calibration
1
100
kOhm
Excitation
1
1
15
Vdc
Input Resistance
1
1000
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
110
% of R.O.
Capacity
1
60000
lbs
Hysteresis
1
-0.5
0.5
% of R.O.
Nonlinearity
1
-0.5
0.5
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
Output Resistance
1
1000
Ohms nom.
Rated Output
1
3
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-45
185
F
Temperature Shift Span
1
-0.01
0.01
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
Zero Balance
1
-5
5
% of R.O.
