QLA288

Custom Compression Load Cell

1 Products
settings
Item Number
Load Capacity
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Environmental Conditions
Output Type
Connection Type
# Of Bridges/channels
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Weight In Lb
Custom Special
100000 lb
1.98
2.25
1.98
1.98
High Temperature, Submersible,Vacuum Rated,Water Resistance
mV/V
Cable
1
29 Awg 4 Conductor Spiral Shielded Silicone Cable
5 ft
Compression
0.25 %RO
392 F
32 F
18 VDC
1 %RO
372 Ohm
IP69K
Stainless Steel
QLA288 , 100000 lb , Custom Compression Load Cell with Flange Mount , Withstands 2000 psi Hydraulic Oil & up to 200 C, Material - 17-4 PH S.S., 29 Awg 4 Conductor Braided Shielded Silicone Cable , 4 ft Long
285 F
60 F
Y

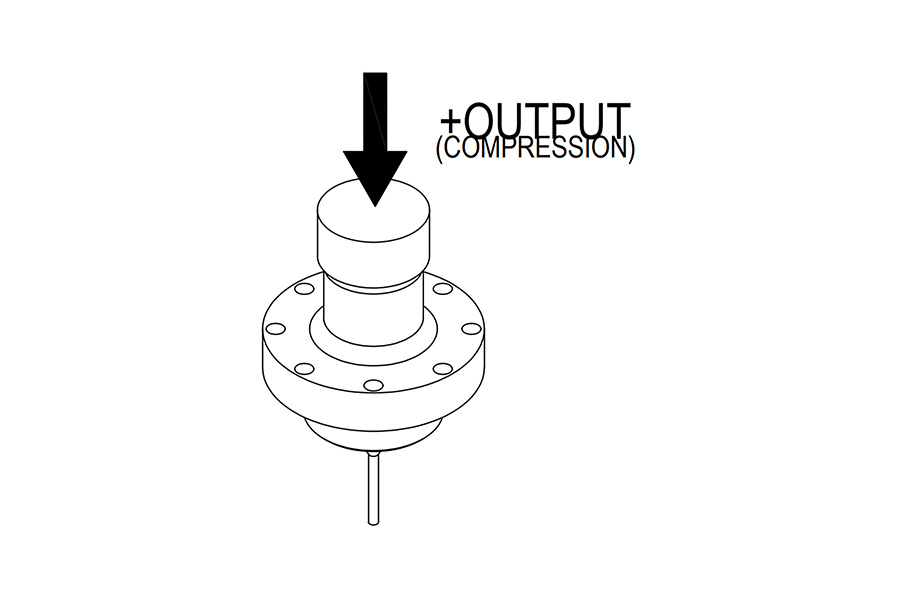

Model QLA288 is a custom compression load cell designed to withstand 2000 PSI Hydraulic oil pressure up to 200 °C (392 °F). It features a flange with 8x mounting holes designed to be mounted within a counterbore. The output cable exits axially through the bottom of the sensor. This sensor is available in capacities of both 10,000 lbs and 100,000 lbs (44.48 kN and 444.8 kN respectively). It features a compensated temperature range of 60 to 285 °F (15 to 141 °C).

QLA288
QLA288
+
