Custom Donut Load Cell

QLA293 , 20000 lb , Custom Donut Load Cell , Material - 17-4 PH S.S. , 2.13" [54.1 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

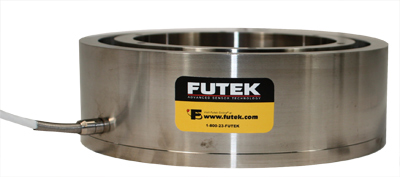

Model QLA293 is a custom donut load cell that is designed to measure forces up to 20,000 lbs (~88.9 kN). It stands at a height of 1.530 in (38.86 mm), with an outer diameter of 4.48 in (113.8mm) and an ID of 2.13 in (54.10 mm). Constructed of 17-4 PH Stainless Steel, it is capable of operating in temperatures between – 40 to 185 °F (-40 to 85 °C). FUTEK can design custom donut load cells in various geometries and capacities. A common use for this style of load cell is to measure force of thrust bearings.

Features

Designed for compression applications
Includes mounting provisions for installation
Radially-exited shielded Teflon cable 5 ft (1.5 m) long

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		700		Ohms nom.
Safe Overload	1			150	% of R.O.
Capacity	1			20000	lbs
Hysteresis	1	-2		2	% of R.O.
Nonlinearity	1	-2		2	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		1.5		mV/V nom.
Compensated Temperature	1	-26		126	F
Operating Temperature	1	-40		185	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
