Custom Dual Range Compression Load Cell

QLA243 , Ch 1: 1500 lb; Ch 2: 3000 lb , Custom Dual Range Compression Load Cell , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 2x 60 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

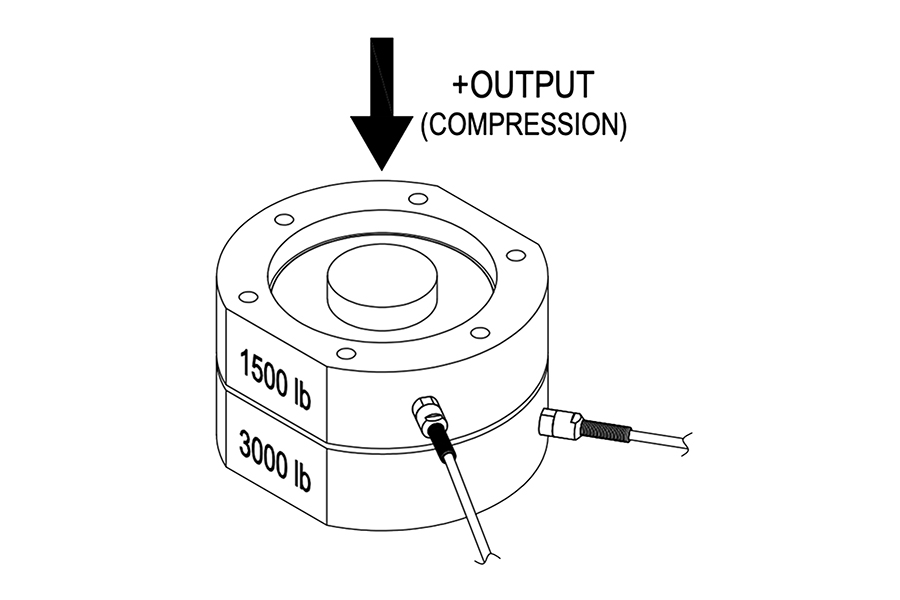

Model QLA243 is a dual range compression load cell with two channels: 1500 lb (6672 N) and 3000 lb (13345 N). It is constructed of stainless steel, with a height of 3.53 inches (89.7 mm) and a flat-to-flat width of 5.40 inches (137.2 mm). It offers two radial cable exits set at an angle of 60° apart from the body of the sensor. There are 6 x 3/8” equally spaced holes along the outer diameter of both the top and bottom of the load cell for mounting provisions. This load cell also features a compensated temperature range of 60 to 160 °F (15.6 to 71.1 Celsius).

Features

Integrated strain relief for both output cables
Designed for compression applications

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
	2		10		Vdc
Excitation	1	1		18	Vdc
	2	1		18	Vdc
Input Resistance	1		744		Ohms nom.
	2		744		Ohms nom.
Safe Overload	1			150	% of R.O.
	2			150	% of R.O.
Capacity	1			1500	lbs
	2			3000	lbs
Nonlinearity	1	-1		1	% of R.O.
	2	-1		1	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
	2	-0.5		0.5	% of R.O.
Output Resistance	1		700		Ohms nom.
	2		700		Ohms nom.
Rated Output	1		1.5		mV/V nom.
	2		1.5		mV/V nom.
Compensated Temperature	1	60		160	F
	2	60		160	F
Operating Temperature	1			200	F
	2			200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
	2	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
	2	-0.02		0.02	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
	2	-3		3	% of R.O.
