Custom Load Button Load Cell

QLA354 , 100 lb , Extreme High Temperature Compression Load Cell , 1800 psi (124 bar) Max Pressure , 500 F (260 C) Max Operating Temperature , Autoclavable , 3 ft Inconel Sheathed Cable with Lemo Plug (PHG.00.304)

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

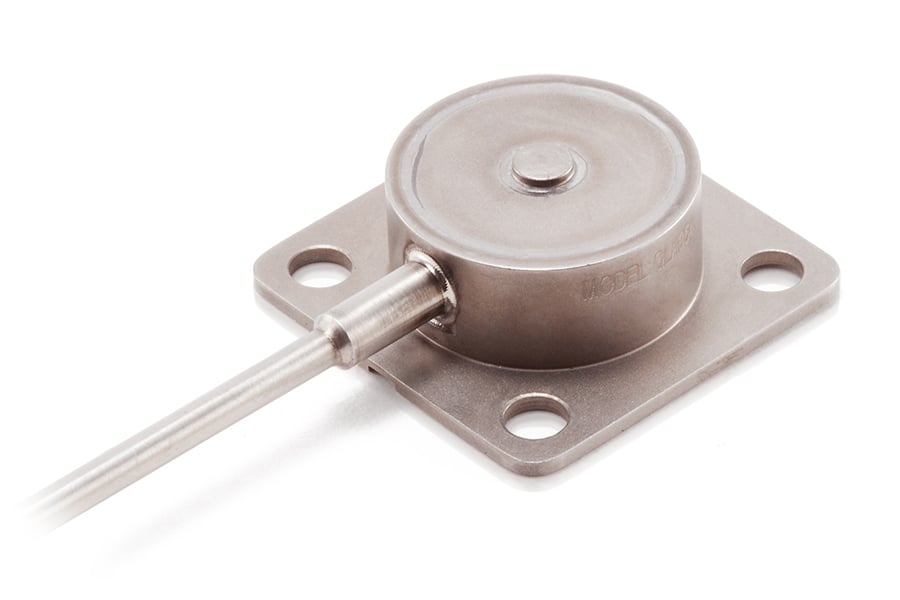

Model QLA354 is a custom load button load cell that is designed to be autoclavable and operational in high temperatures: 60 to 500 °F (16 to 260 °C). It is also capable of withstanding up to 1800 psi case pressure. It has a rated capacity of 100 lb (445 N) and is constructed of Inconel for robustness. Its body is 1.38 inches square (34.9 mm), and stands at 0.500 inches (12.7 mm) in total height.

Features

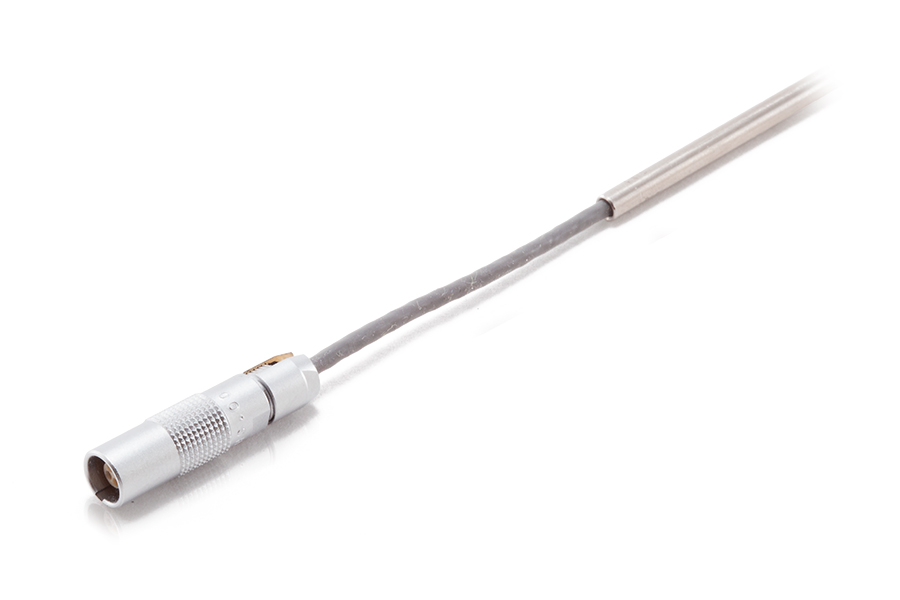

Includes 3-ft (0.91 m) Inconel sheathed integrated cable with Lemo plug
Spherical radius of 0.75 inches (19.1 mm) on load button for single-point loading
Autoclavable
Hermetically Sealed

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		350		Ohms nom.
Insulation Resistance	1		500		Mohms @ 50 Vdc
Safe Overload	1			150	lbs
Capacity	1			100	lbs
Hysteresis	1	-1		1	% of R.O.
Nonlinearity	1	-1		1	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1		mV/V nom.
Compensated Temperature	1	60		500	F
Operating Temperature	1	60		500	F
Temperature Shift Zero	1	-0.03		0.03	% of R.O./F
Zero Balance	1	-10		10	% of R.O.
