QLA349 play_arrowQSH01488

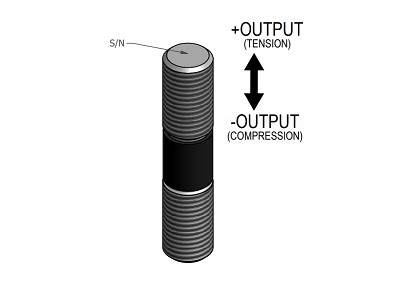

Custom Male Threaded Rod End Load Cell

QLA349, 1500 lb , Custom OEM Male Threaded Rod End Load Cell , Material - 2024-T4 , 3/8-24-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Cable
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description

Model QLA349 is a custom male threaded rod end load cell designedwith 2x 3/8-24 male threads for mounting. This load cell is designed to measure tension and compression loads and offers a rated capacity of 1500 lb (6672 N), with a safe overload protection of 2250 lb (10,008 N). This load cell is well-suited for applications with tight outer diameter constraints. It is constructed from aluminum and is thermally compensated for 60 to 160 °F (15 to 72 °C). It offers a nonlinearity of ± 0.5 % of the Rated Output. It includes a #26 AWG 4 conductor Teflon cable 6 in (15.2 cm) long.

Features
  • Designed for OEM applications with a limited diameter constraint
  • Integrated output cable lends itself for high-volume applications
  • Designed for use in both tension and compression
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
CHANNELMINTYPMAXUNIT
