QLA359 play_arrowQSH01765

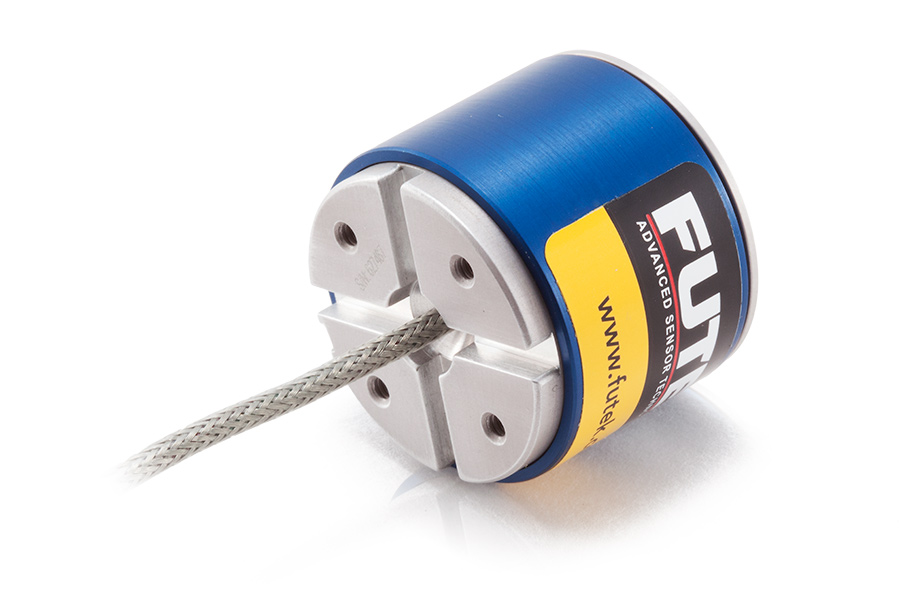

Custom Side Force Load Cell

QLA359 , 15 lb , Custom Side/Shear Force Load Cell w/ OVerload Protection & Axial Cable Exit , 28 Awg, 4 Conductor Braided Shielded PVC Cable Exiting Out of Bottom , 3 ft Long
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Model QLA359 is a custom load cell designed to measure side forces. It has a capacity of 15 lb (6.8 kg) with a safe overload protection of 30 lb (13.6 kg). It features ¼-20 UNC female threads for loading and 4x #4-40 UNC female mounting provisions. It offers a nonlinearity of +/- 0.1% and a nonrepeatability of  +/-0.05% of its Rated Output. Included in the design is an orientation key to allow for proper measurement of side forces. It is constructed from aluminum and has a 3-ft (0.91m) 28 AWG 4 conductor shielded PVC cable.


Features
  • Cable slots allow for flush mounting provisions
  • Compensated temperature measurements from 32 to 160 °F (0 to 71 °C)
  • Blue anodized aluminum cover
Technical Documents
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Shunt Calibration
1
432
kOhm
Excitation
1
1
15
Vdc
Input Resistance
1
2220
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
15
lbs
Hysteresis
1
-0.1
0.1
% of R.O.
Nonlinearity
1
-0.1
0.1
% of R.O.
Nonrepeatability
1
-0.05
0.05
% of R.O.
Output Resistance
1
2000
Ohms nom.
Rated Output
1
1.5
mV/V nom.
Compensated Temperature
1
32
160
F
Operating Temperature
1
-40
200
F
Temperature Shift Span
1
-0.01
0.01
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
Zero Balance
1
-2
2
% of R.O.
