QLA210 play_arrowQSH00442

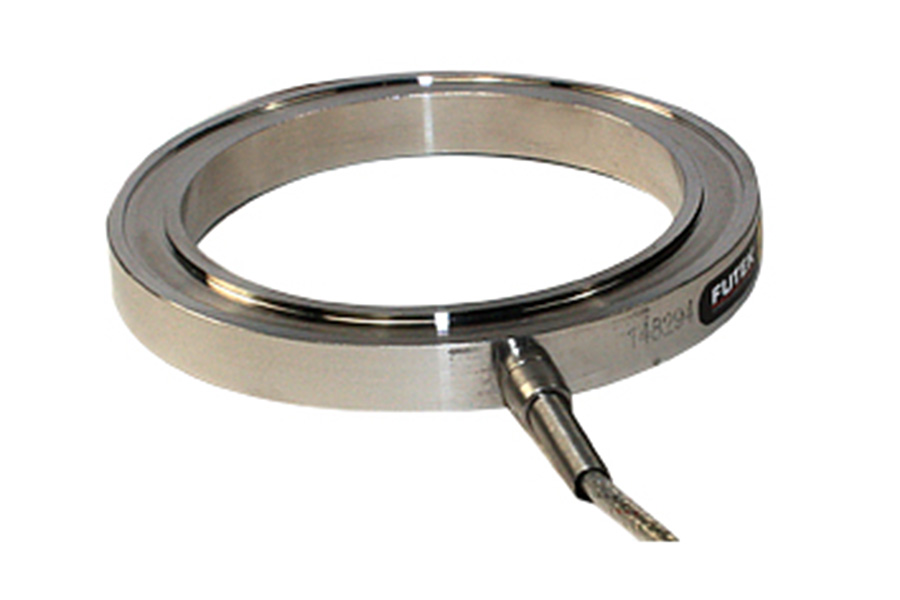

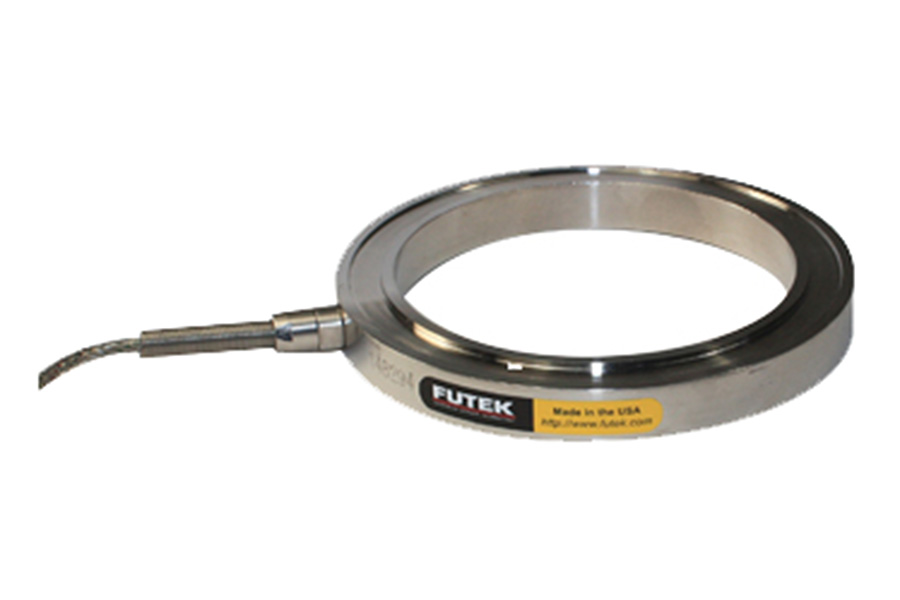

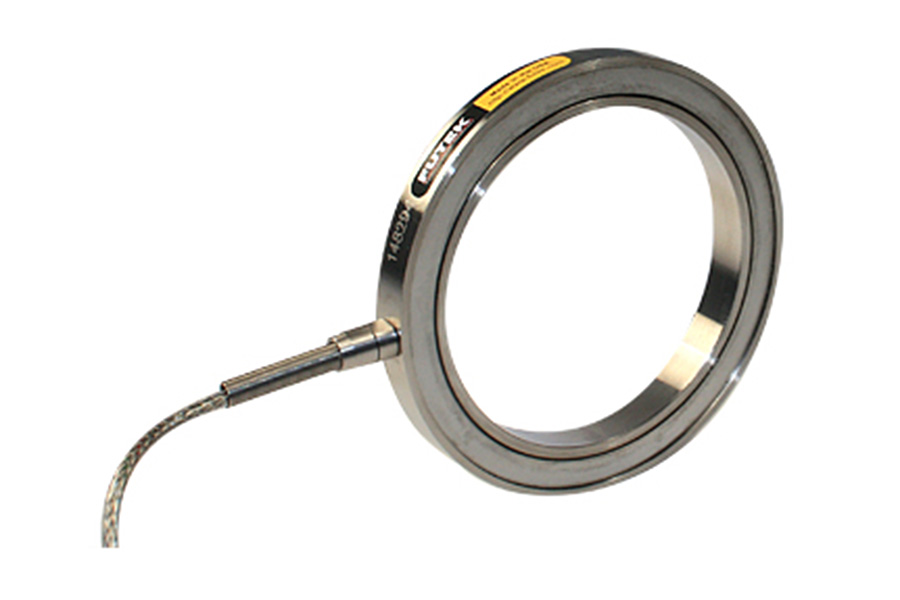

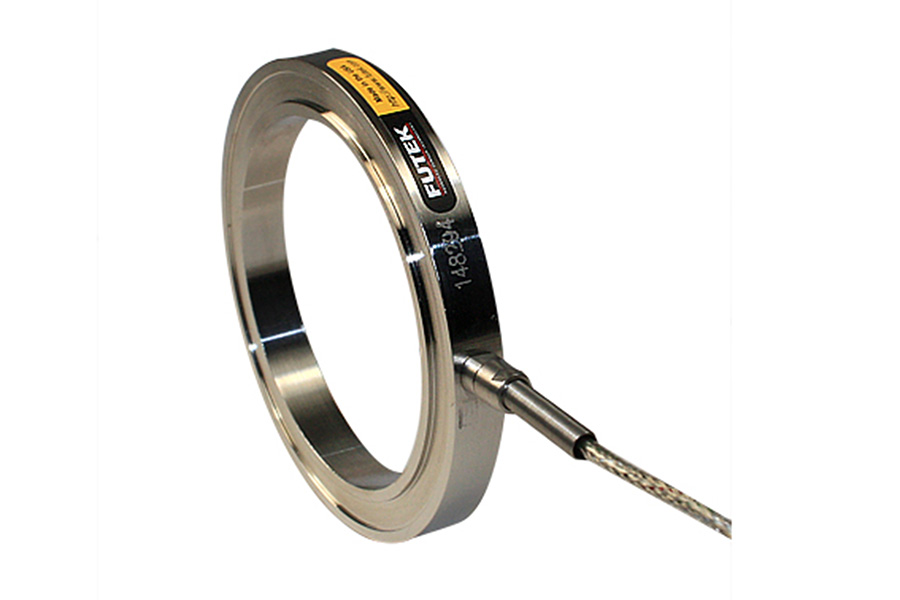

Donut/Thru Hole Load Cell

QLA210 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2 1/2" [63.5 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description
Donut / Thru Hole Load Cell
Features
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
700
Ohms nom.
Safe Overload
1
150
% of R.O.
Capacity
1
2000
lbs
Nonlinearity
1
-2
2
% of R.O.
Nonrepeatability
1
-0.5
0.5
% of R.O.
Output Resistance
1
700
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
160
F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
