Inline Male Threaded Load Cell

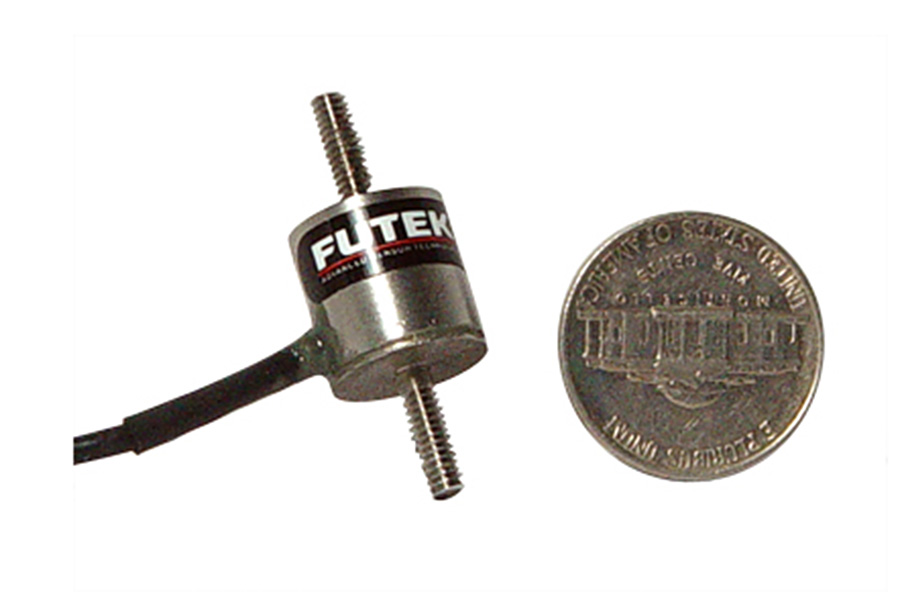

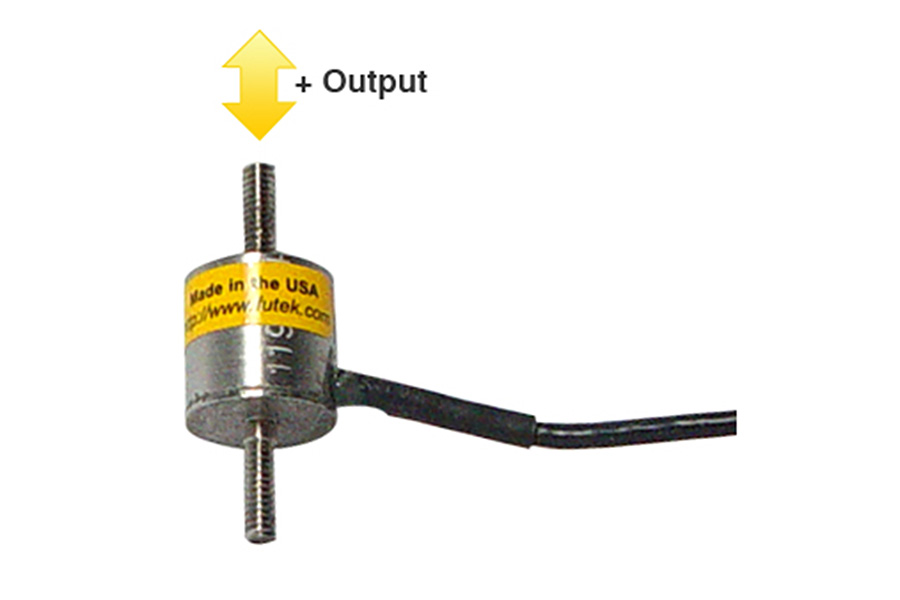

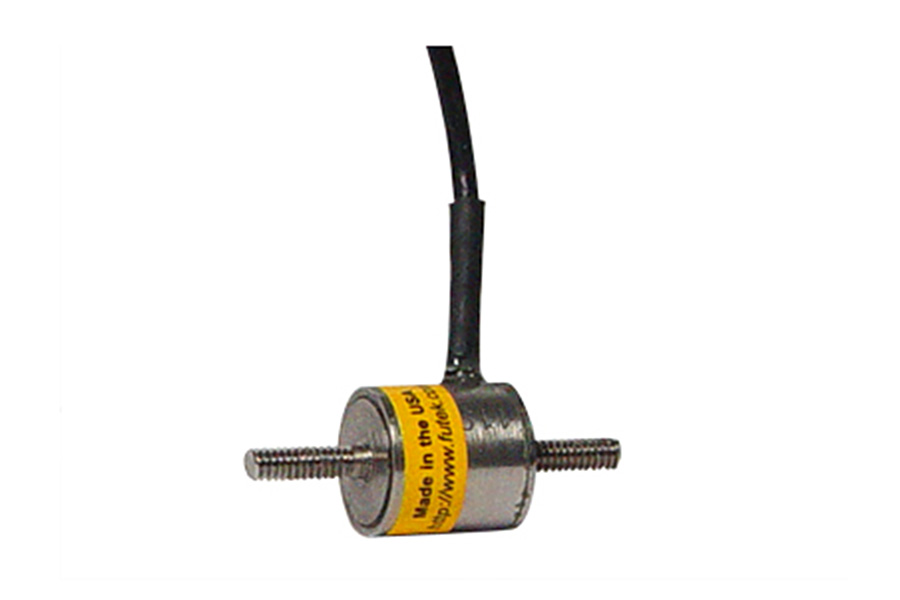

QLA120 , 50 lb , Miniature Inline OEM Male/Male Threaded Load Cell , 0.49 in [12.45 mm] OD x 0.5" [12.7 mm] H , Material - 17-4 PH S.S. , #4-40-Thread , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 6 inch Cable

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Features

Intended for high volume OEM applications
See LCM300 or LSB205 for Test & Measurement Applications

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		15	Vdc
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			200	% of R.O.
Capacity	1			50	lbs
Hysteresis	1	-1		1	% of R.O.
Nonlinearity	1	-1		1	% of R.O.
Nonrepeatability	1	-0.25		0.25	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-65		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F

Alternative Models

LCM100 FSH04800

LCM100 , 50 lb , Sub-Miniature Tension & Compression Load Cell (Miniature/inline Threaded) , M3x0.5 Thread , Material - 17-4 S.S. , 1000 Ohm Bridge Resistance , RoHS Compliant , 34 Awg 4 Conductor Braided Polyester Cable , 5 ft Long

Spec Sheet
