Miniature Threaded Load Cell

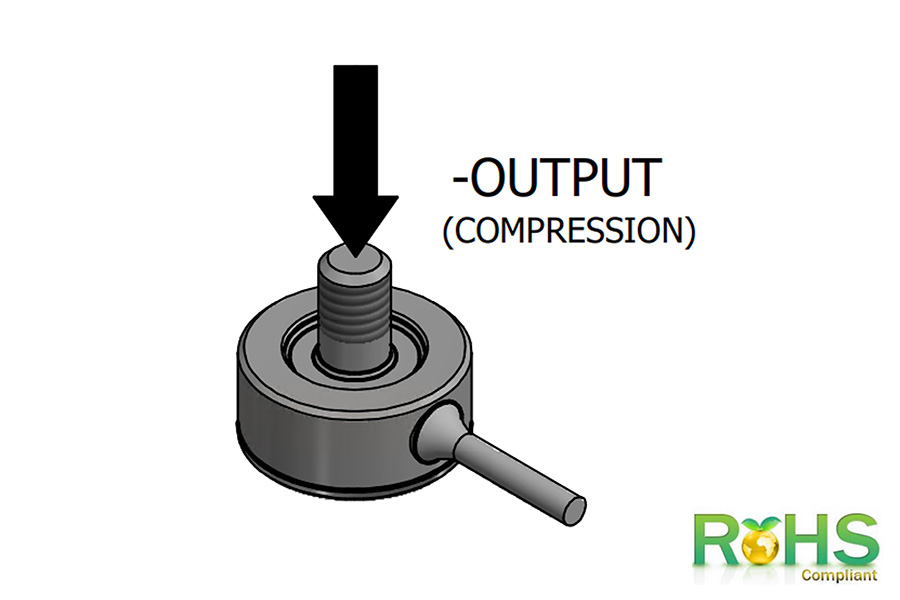

QLA415 , 5 lb , Sub-Miniature Custom Autoclavable Compression Load Cell w/ Male Thread , IP69K , Submersible/Water Resistant , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 6 in Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Model QLA415 is a miniature autoclavable compression load cell built for compression
applications. It has M3x0.5 male threaded mounting provisions and a 6-ft (1.82 m) #34
Awg 4 conductor braided shielded cable. This load cell has a capacity of 5 lb (2.26 kg)
and a nonlinearity of ± 0.5% with a thermally compensated temperature range of 60 °F
to 160 °F (15.5 to 71.1 degrees Celsius). It features a robust construction made of 17-4 precipitation
hardened stainless steel and safe overload protection of 150% of its rated
output.

Features

RoHS Compliant
Autoclavable
Epoxy fillet support of cable exit
Compression only
17-4 PH stainless steel construction

Technical Documents

Resources

How to reduce electrical noise in your system

Videos

Autoclavable Sensors Production Facility | Hermetically Sealed Load Cells | FUTEK

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		5		Vdc
Shunt Calibration	1		100		kOhm
Excitation	1	1		7	Vdc
Input Resistance	1		350		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			5	lbs
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-0.5		0.5	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
