Parallelogram Load Cell

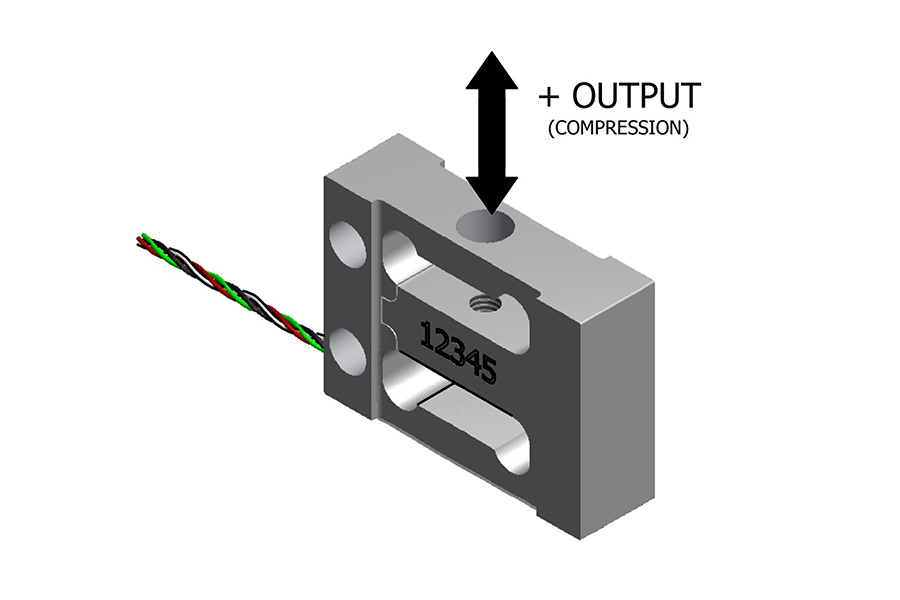

QLA357 , 5 lb , Parallelogram Beam Load Cell , Material - 2024-T4 , #10-32-Thread , Overload Protection , RoHS Lead Free, 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Long

Spec Sheet

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

Parallelogram Load Cell

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		1000		Ohms nom.
Safe Overload	1			250	lbs
Capacity	1			5	lbs
Hysteresis	1	-0.1		0.1	% of R.O.
Nonlinearity	1	-0.1		0.1	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		1000		Ohms nom.
Rated Output	1	1.8		2.2	mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1			160	F
Temperature Shift Span	1	-0.005		0.005	% of Load/F
Temperature Shift Zero	1	-0.005		0.005	% of R.O./F
