Thru Hole/Donut Load Cell w/ Welded Washer

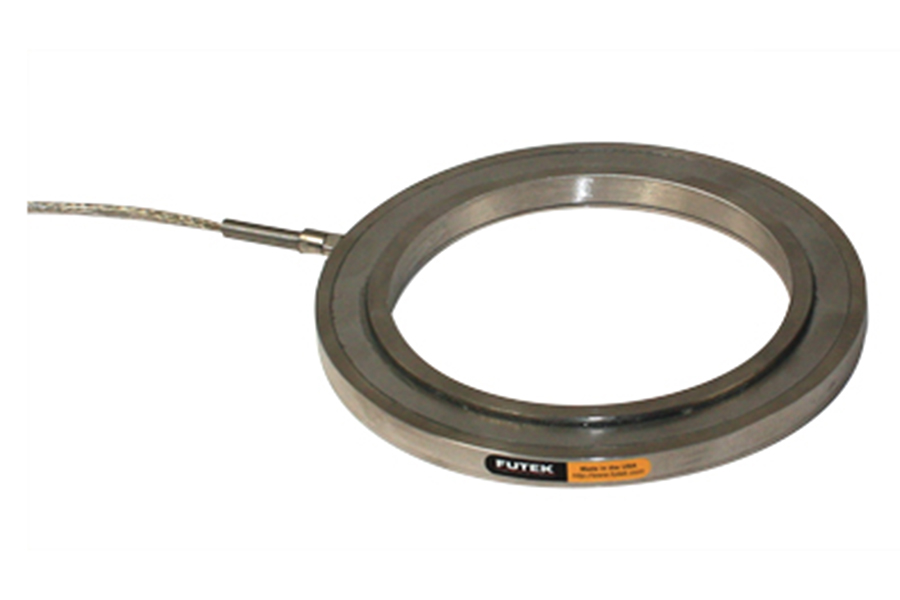

QLA278 , 1000 lb , Thru Hole/Donut Load Cell w/ Welded Washer , Material - 17-4 PH S.S. , 3.79" [96.3 mm] ID x 5.23" [132.8 mm] OD x 0.42" [10.7 mm] H , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Thru Hole / Donut Load Cell with Welded Washer

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			1000	lbs
Nonlinearity	1	-1		1	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1	1.9	2	2.1	mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1			160	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
