QMA143

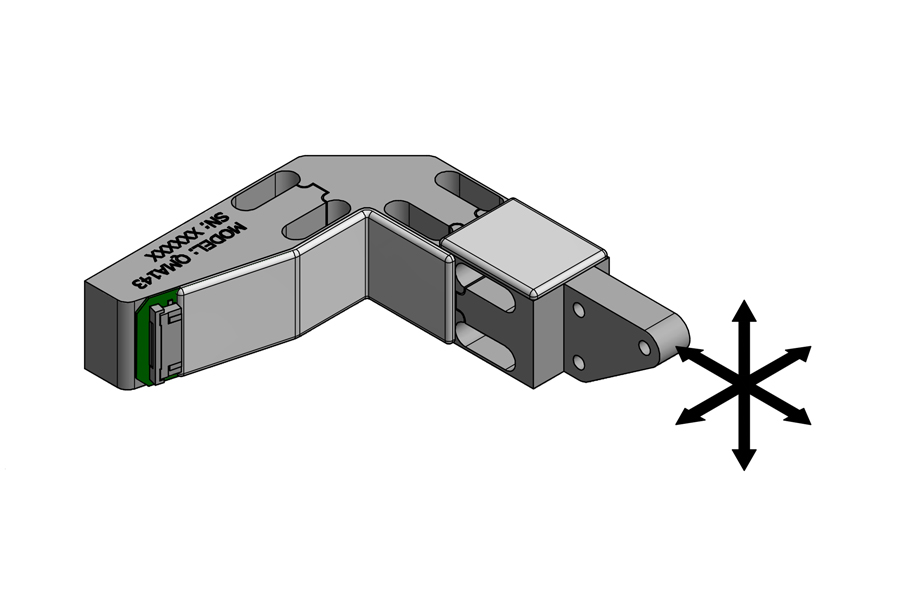

Custom 3 Axis Force Haptic Sensor w/ Overload Protection

1 Products
settings
Item Number
Load Capacity
# Of Axis
Mounting Type
Output Type
Features
Length In Inches
Height In Inches
Width In Inches
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Input Resistance
Nonlinearity
Connection Type
Material
Thread Size
# Of Bridges/channels
Custom Special
Min Compensated Temperature
Max Compensated Temperature
Temperature Shift Zero
QSH01961
5 lb
3
Flange
mV/V
Overload Protection, RoHS
2.637
2.205
0.591
0.1 %RO
180 F
-40 F
117 Ohm
0.25 %RO
Connector
2024-T4
M2x0.4
1
Y
60 F
160 F
0.005 TSZ

QMA143, 3 Axis Sensor

QMA143
QMA143
