QMA133 play_arrowQSH01622

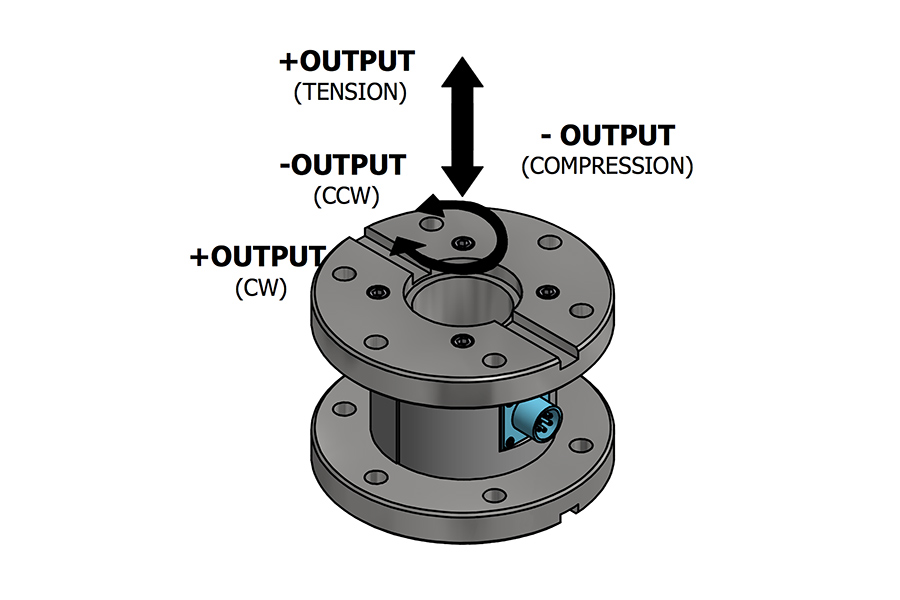

Reaction Torque and Thrust Flange to Flange Sensor

QMA133 , Mz: 1000 in-lb ; Fz: 3000 lb , Custom Dual Axis Torque & Thrust Sensor , Material - 2024-T4 , 1 1/2" [38.1 mm] ID , 2x 6 Pin Bendix Receptacle, PT02A-10-6P
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description

Reaction Torque and Thrust Flange to Flange Sensor

Features
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
Fz-1
10
Vdc
Mz-1
10
Vdc
Excitation
Fz-1
1
18
Vdc
Mz-1
1
18
Vdc
Input Resistance
Fz-1
372
Ohms nom.
Mz-1
790
Ohms nom.
Insulation Resistance
Fz-1
500
Mohms @ 50 Vdc
Mz-1
500
Mohms @ 50 Vdc
Safe Overload
Fz-1
150
% of R.O.
Mz-1
150
% of R.O.
Capacity
Fz-1
3000
lbs
Mz-1
1000
in-lb
Nonlinearity
Fz-1
-0.5
0.5
% of R.O.
Mz-1
-0.25
0.25
% of R.O.
Output Resistance
Fz-1
350
Ohms nom.
Mz-1
700
Ohms nom.
Rated Output
Fz-1
1
mV/V nom.
Mz-1
1
mV/V nom.
Compensated Temperature
Fz-1
60
160
F
Mz-1
60
160
F
Operating Temperature
Fz-1
-60
200
F
Mz-1
-60
200
F
Temperature Shift Span
Fz-1
-0.005
0.005
% of Load/F
Mz-1
-0.005
0.005
% of Load/F
Temperature Shift Zero
Fz-1
-0.005
0.005
% of R.O./F
Mz-1
-0.005
0.005
% of R.O./F
Zero Balance
Fz-1
-2
2
% of R.O.
Mz-1
-2
2
% of R.O.
