LMD500 play_arrowFSH00127

Hand Gripper

LMD500 , 300 lb , Compression Hand Grip Load Cell , Material - 2024-T4 , 4 Pin Lemo Receptacle, EGG.0B.304.CLL
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
Extraneous Load Factor Extraneous Load Factor
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Medical Load Cell (How to Measure Hand Grip Strength?)

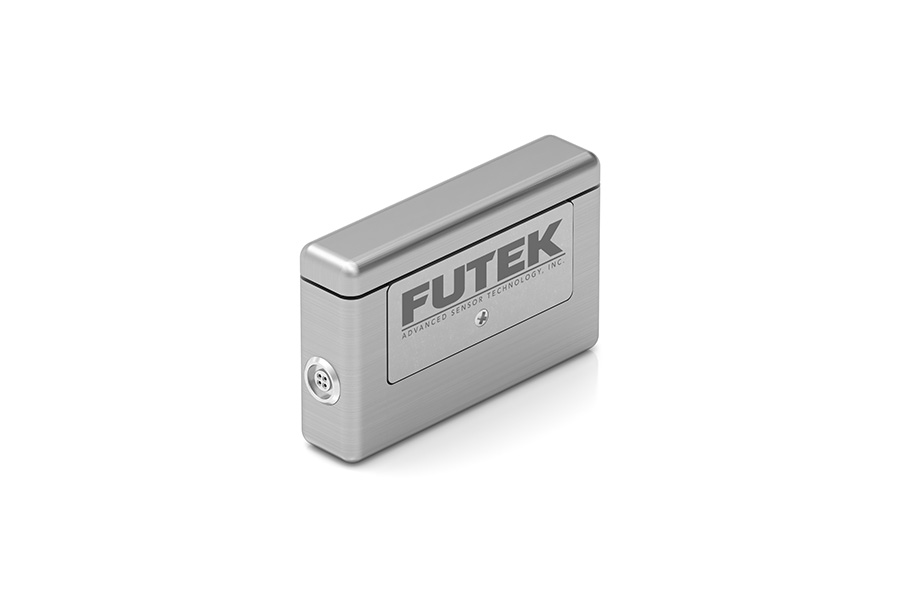

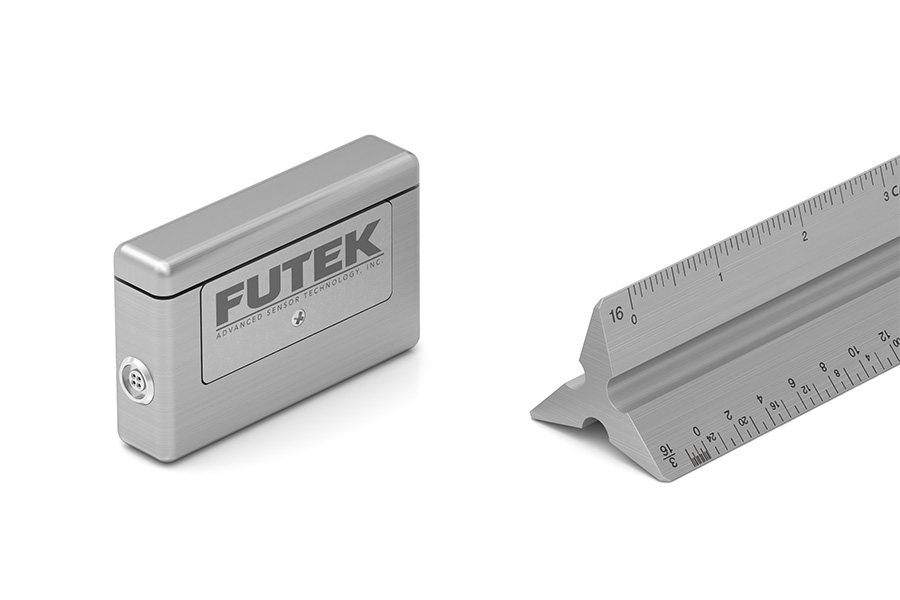

The LMD500 Medical Load Cell (Hand Gripper) offers a unique solution for Medical Applications. From its lightweight aluminum design, to its easy installation, the LMD500 Medical Load Cell (Hand Gripper) offers a great hand grip strength measurement system with impressive tolerances.

As a part of the custom engineered products, the Medical Load Cell  can be embedded in digital hand dynamometer for grip strength measurement and captures the many capabilities FUTEK offers its customers.  Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.

Product Highlights:

  • Ideal for rehab therapy or auditing hand tool
  • Strain Gauge Based
  • Compression
  • one-piece aluminum construction
  • Weight: 3.6 oz

For those looking for a complete instrument to measure hand grip strength solution, FUTEK can provide both signal-conditioned displays or our VCal Portable System. FUTEK’s VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK LMD Series is also available with TEDS / IEEE1451.4 option.

Features
  • Ideal for rehab therapy or auditing hand tool
  • Strain Gauge Based
  • Compression
  • one-piece aluminum construction
  • Weight: 3.6 oz
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
350
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
300
lbs
Hysteresis
1
-0.25
0.25
% of R.O.
Nonlinearity
1
-0.25
0.25
% of R.O.
Output Resistance
1
350
Ohms nom.
Rated Output
1
3
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-60
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
