Subminiature Load Button

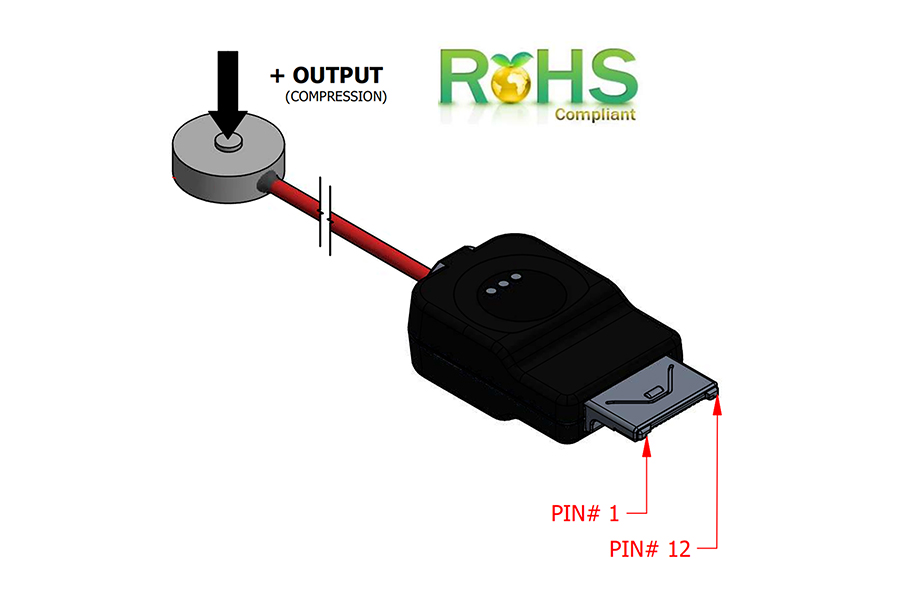

LLB130 , 10 lb , Custom Subminiature Load Button , Material - 17-4 PH S.S. , RoHS Compliant , 34 Awg 4 Conductor Braided Polyester Cable , 3 ft Long w/ ZCO940 Connector for USB220
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
LLB130
LLB130
Description

Model LLB130 is a Miniature Load Button designed for Press, or Inline compression applications. The LLB130 Mini Force Sensor is made from a robust 17-4 PH Stainless Steel, with a subminiature 0.38 inch outside diameter. These subminiature load cells achieve great accuracy and stiffness with a Nonlinearity of ±0.5% and Deflection of 0.002” nominal. You will also find sub miniature load cells for external matched output readily available.


The standard LLB130 Subminiature Load Cell (aka sub-miniature load cell) can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery.


Force Sensor Features:


  • Fully internally temperature compensated (no external conditioning circuitry)
  • Sub-miniature load cell / lightweight
  •  Low deflection / fast response
  • 17-4 PH stainless steel construction
  • For use in compression
  • Utilizes metal foil strain gauge technology
  • Adheres to RoHS directive 2011/65/EU
  • Accessories and related signal conditioners and amplifiers available



If you are looking for a Shear Beam Load cell, check out our LSB201 S Beam Miniature Load Cell.

Features
  • Fully internally temperature compensated (no external conditioning circuitry)
  • Sub-miniature load cell / light weight
  •  Low deflection / fast response
  • 17-4 PH stainless-steel construction
  • For use in compression
  • Utilizes metal foil strain gauge technology
  • Adheres to RoHS directive 2011/65/EU
  • Accessories and related instruments available
Videos
video
LLB130: Overview Video
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
5
Vdc
Shunt Calibration
1
60.4
kOhm
Excitation
1
1
7
Vdc
Input Resistance
1
350
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
10
lbs
Hysteresis
1
-0.5
0.5
% of R.O.
Nonlinearity
1
-0.5
0.5
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
Output Resistance
1
350
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-60
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
