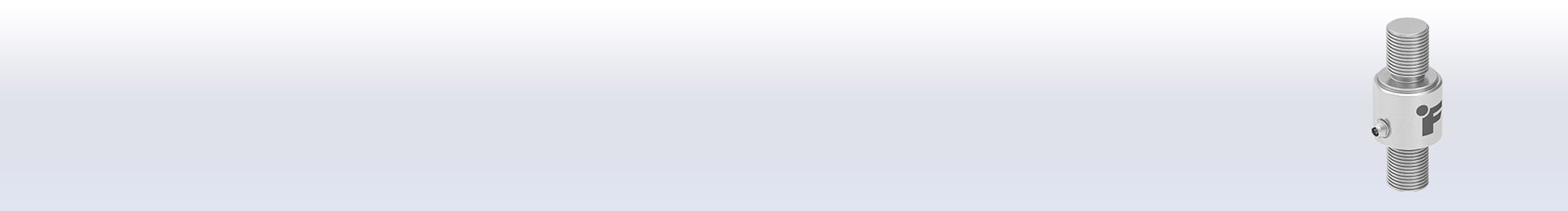

Miniature Threaded In Line Load Cell
LCM375

Miniature Threaded In Line Load Cell

7 Products
settings
Item Number
Load Capacity
Thread Size
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Environmental Conditions
Features
Output Type
Connection Type
# Of Bridges/channels
Connector Type
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Weight In Lb
Custom Special
Connection Code
Mechanical Overload Protection
Safe Overload
Fatigue Rated
Integrated Teds
7500 lb
3/4-16
1.12
2.77
1.12
1.12
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM375 , 7500 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 3/4-16-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long
160 F
60 F
0.39
N
WC1
No
150 %RO
No
No
7500 lb
M16x2
1.12
2.77
1.12
1.12
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM375 , 7500 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , M16x2-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long
160 F
60 F
0.39
N
WC1
150 %RO
10000 lb
3/4-16
1.12
2.77
1.12
1.12
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM375 , 10000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 3/4-16-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long
160 F
60 F
0.39
N
WC1
No
150 %RO
No
No
10000 lb
M16x2
1.12
2.77
1.12
1.12
RoHS
mV/V
Connector
1
4 Position Micro Circular Receptacle
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM375 , 10000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , M16x2-Thread , 4 Pin Micro Receptacle
160 F
60 F
0.39
N
CC19
No
150 %RO
No
No
10000 lb
3/4-16
1.12
2.77
1.12
1.12
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM375 , 10000 lb , OEM Threaded Rod Load Cell , Material - 17-4 PH S.S. , 3/4-16-Thread , No Cover, 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long
160 F
60 F
0.39
N
WC1
No
150 %RO
No
No
10000 lb
M16x2
1.12
2.77
1.12
1.12
Water Resistance
Fatigue Rated
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
221 F
-60 F
18 VDC
0.5 %RO
350 Ohm
IP65
17-4 PH S.S.
LCM375 , 10000 lb , Fatigue Rated Miniature Inline Threaded Tension/Compression Load Cell , M16x2-Thread , Matched Output , Water Resistant to IP65 , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long
221 F
-40 F
0.55
Y
WC1
150 %RO
10000 lb
M16x2
1.12
2.77
1.12
1.12
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM375 , 10000 lb , OEM Threaded Rod Load Cell , RoHS Compliant, Material - 17-4 PH S.S. , M16x2-Thread , No Cover, 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long
160 F
60 F
0.39
Y
WC1
150 %RO

> LCM375

Compact, precise and water resistant

With a cover height of 1.03in (26.2mm) tall and a diameter of 1.12in (28.3mm), LCM 375 is a highly accurate, reliable and stable miniature load cell for tension and compression measurement. Boasting a nonlinearity of ±0.5%, this fast-response sensor has a robust construction that makes it suitable for a wide range of endurance, press, or inline applications and environments.

The LCM375 is now available with an integrated connector that makes it fully IP67-rated for high water resistance and temporary submersibility. The connectorized 4-position micro receptacle allows you to easily remove the wire from the sensor like a plug from a socket. This new feature protects the sensor from cable damage, as you can easily replace a faulty wire.

  • height (excluding threads): 26.2mm
  • diameter: 28.3mm
  • capacity: 7500 to 10000lb

Robust construction

The center covers are seam-welded to the sensor body, providing outstanding strength and enhanced protection against physical damage in addition to withstanding other harsh environmental conditions. A special heat treatment process has been applied to the flexure to improve durability, extending the life-cycle of the sensor.

Plug in, plug out

The updated version of the LCM375 now has an integrated 4-position micro receptacle that easily disconnects a damaged cable, which saves time, leads to higher system availability and reduces total cost of ownership.

The 4-position micro cable connector is shown here on another sensor model.

Conductor Braided Shielded Clear PVC

For the standard versions with an integrated cable, a braided shield physically covers the signal wires while blocking any interference from stray magnetic and static electric fields. Additionally, the metallic load cell housing blocks all interference and unwanted environmental conditions that would reduce the accuracy and reliability.

LCM300

Eliminating moisture

The robust assembly process of the 4-position micro receptacle version eliminates moisture ingress through the connection location. With an IP67 rating, the product can withstand submersion in one meter of water for up to 30 minutes. This opens up more options for applications as it will allow outdoor usage in wet, rainy, or highly humid conditions.

High stiffness

The LCM375 has a high stiffness and high natural frequency response rates, hence maintaining accuracy over its entire service life. Together with the robust construction, this feature makes this sensor an ideal load cell for dynamic applications.

Easy mounting options

The LCM375 has male threads on both ends for easy and flexible mounting options. Also, the compact design allows you to mount it in locations that require a small footprint, especially those applications with limited vertical space. The lightweight load cell weighs 8oz (227g).

High Accuracy

The LCM375 load cell provides enhanced accuracy, performance, and long-term stability. In particular, it has a nonlinearity of ±0.5% and a low deflection of 0.002in nom.

Best-in-class material

The exceptional quality of this sensor makes it highly durable and reliable. Its body is made of aerospace-grade 17-4 precipitation hardened stainless steel, which provides high strength, high hardness, low hysteresis and creep properties, and corrosion resistance over a wide temperature range.

Made in California

Designed and manufactured in-house, using US-sourced materials. Our multidisciplinary engineering teams, high precision machining center, state-of-the-art quality assurance systems, and R&D and manufacturing facilities are all under one roof, allowing us to continuously reinvent and refine our products and processes.

Calibration included

The LCM375 has been tested by FUTEK’s world-class calibration department and is NIST traceable. We can also reduce hidden costs and setup time by calibrating your sensor with FUTEK electronics of your choice. In addition, we offer calibration to ANSI Z540-1 and ISO 17025 standards upon request.
