Donut/Through Hole Load Cell

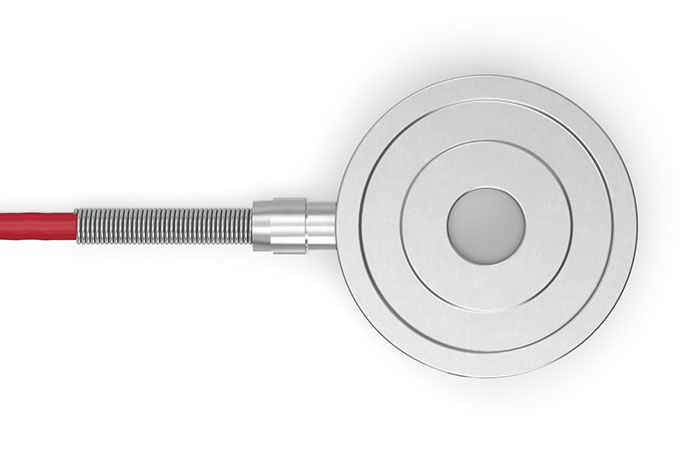

LTH350 , 100 lb , Though Hole Donut/Washer Load Cell , 7/16" [11.1 mm] ID , Material - 17-4 PH S.S. , RoHS Compliant , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

Spec Sheet

3D Model Download

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

Model LTH350 is a Through Hole Donut/Washer Load Cell built for press or inline compression applications. The standard LTH350 Donut Load Cell model has a very robust construction available in 17-4 Stainless Steel, with an I.D. range of 1/4" [6.5 mm] to 5/8" [16.1 mm], as well as a 4 Pin Micro Receptacle for simplified assembly. You will also find options for external matched output readily available.

The Donut Load Cell offers high accuracy and high stiffness. It has nonlinearity of ±0.5%, deflection of 0.002” [0.05 mm] nominal and operating temperature of -60 to 200° F [15 to 75° C]. The standard LTH350 Washer Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping.

Features

Fast response time
Quick Connect/Disconnect Receptacle
Compatible in load washer applications
Offered in a variety of capacities and inner diameters
Low power consumption

Technical Documents

Resources

Bolt_Preload_Auditing

Donut Sensor Series Manual

How to reduce electrical noise in your system

LTH Connector Benefits

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Shunt Calibration	1		150		kOhm
Excitation	1	1		18	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			100	lbs
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-0.5		0.5	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		1.5		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.005		0.005	% of Load/F
Temperature Shift Zero	1	-0.005		0.005	% of R.O./F
