Through Hole Load Cell w/ Integrated Amplifier 15klb

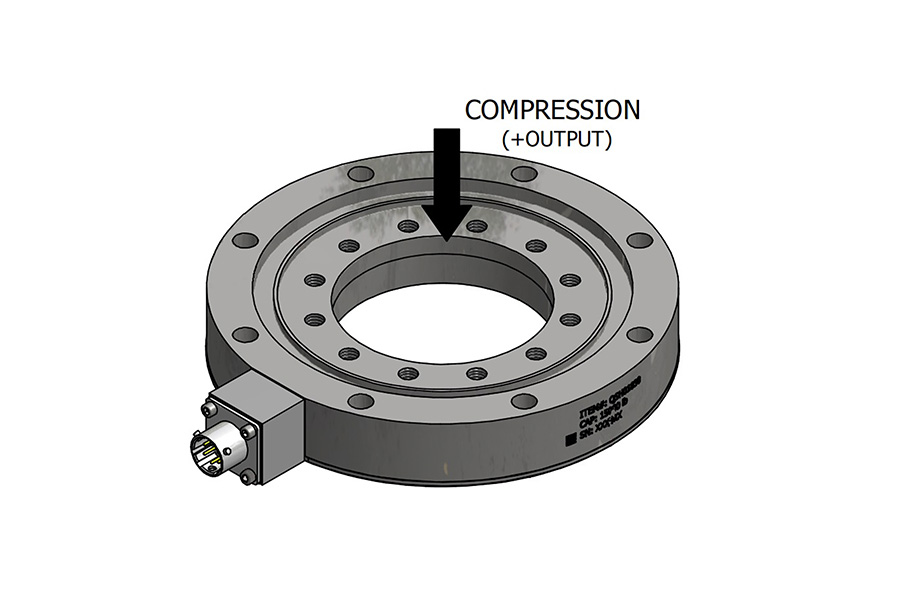

QLA392 , 15000 lb , Flange Mount Thru Hole Compression Load Cell , 2.91" [74 mm] ID w/ M6x1 Threads x 6.2" [157.5 mm] x 1.02" [26 mm] H , Material 17-4 PH S.S. , w/ Integrated Amplifier 4-16 mA , Bendix PT02E-10-6P

Spec Sheet

3D Model Download

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

Custom Through Hole Donut/Washer Flange to Flange Load Cell with 74 mm ID, integrated 4-16 mA current analog output ,and 300% of R.O. safe overload protection.

Features

Large 74 mm through hole inner diameter
4-16 mA Output in Compression
300% of R.O. Safe Overload Protection

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		24		Vdc
Excitation	1	16		24	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			300	% of R.O.
Capacity	1			15000	lbs
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-1		1	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		12		mA
Compensated Temperature	1	60		160	F
Operating Temperature	1	-13		185	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
