Pressure Sensor (OEM)

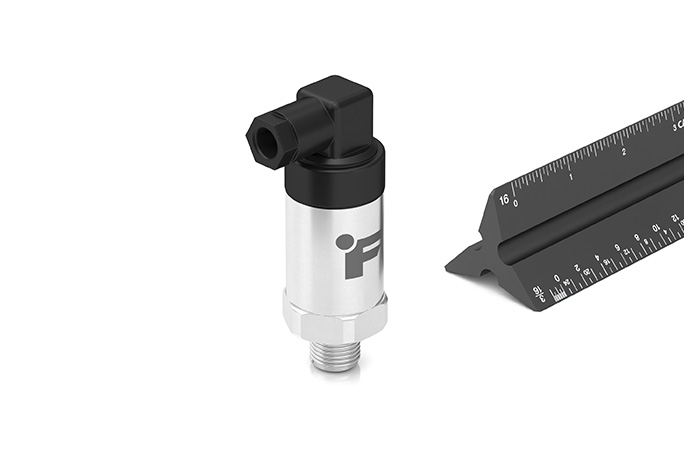

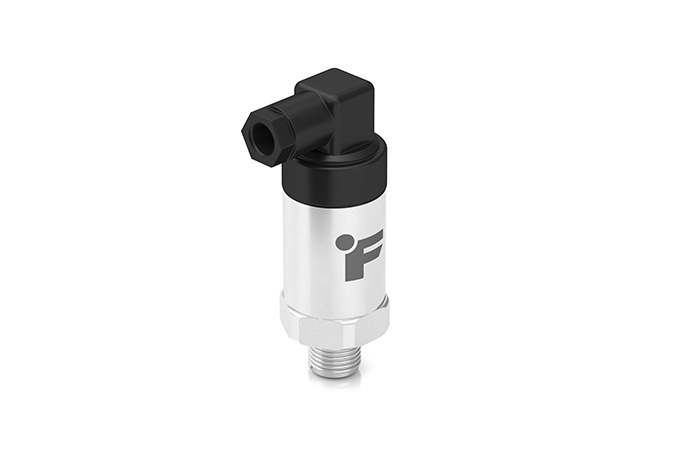

PMP410 , 10000 PSI , Pressure Sensor (OEM) , 4-20 mA Output , Stainless Steel , 1/4-18-NPT Thread , Relative , Din Connector

Spec Sheet

3D Model Download

Listed price is in U.S. currency and subject to verification along with availability

Description

The PMP410 Pressure Sensor (OEM) provides performance and economy for a wide range of OEM pressure measurement applications. They are especially suited to applications subject to severe mechanical shock, vibration, and electromagnetic interference. The PMP410 features an all-welded stainless steel measuring cell for improved media compatibility. There are no internal soft sealing materials that may react with the media or deteriorate over time.

A standard signal output of 4-20 mA allows the PMP410 OEM Pressure Transducer to be integrated into many existing applications. Many custom signal outputs, process connections, and electrical connections are available. Each is individually temperature compensated to assure accuracy and long-term stability even when exposed to severe temperature variations.

What to learn more about strain gauge pressure transducer working principle? Visit our "How does a pressure transducer work" page.

Features

OEM
1/4 NPT Male Threads
4-20 mA 2 Wire Output
Din Connector
0.5% Accuracy

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	10		30	Vdc
Capacity	1			10000	PSI
Hysteresis	1	-0.15		0.15	% of R.O.
Nonlinearity	1	-0.8		0.8	% of R.O.
Nonrepeatability	1	-0.05		0.05	% of R.O.
Rated Output	1	4		20	mA
Compensated Temperature	1	32		176	F
Operating Temperature	1	-22		185	F
Temperature Shift Span	1	-0.011		0.011	% of Load/F
Temperature Shift Zero	1	-0.017		0.017	% of R.O./F
