Application 302

Power Tool Measurement

  |
Application Summary
Rotary Hex Drive Torque Sensors are typically used to verify screw spindles and torque measurements of power driven tools.
Products in Use
Rotary Hex Drive Torque Sensor (TRH Series) paired with Instrumentation (IPM650, IHH500 or USB520). View Product Details

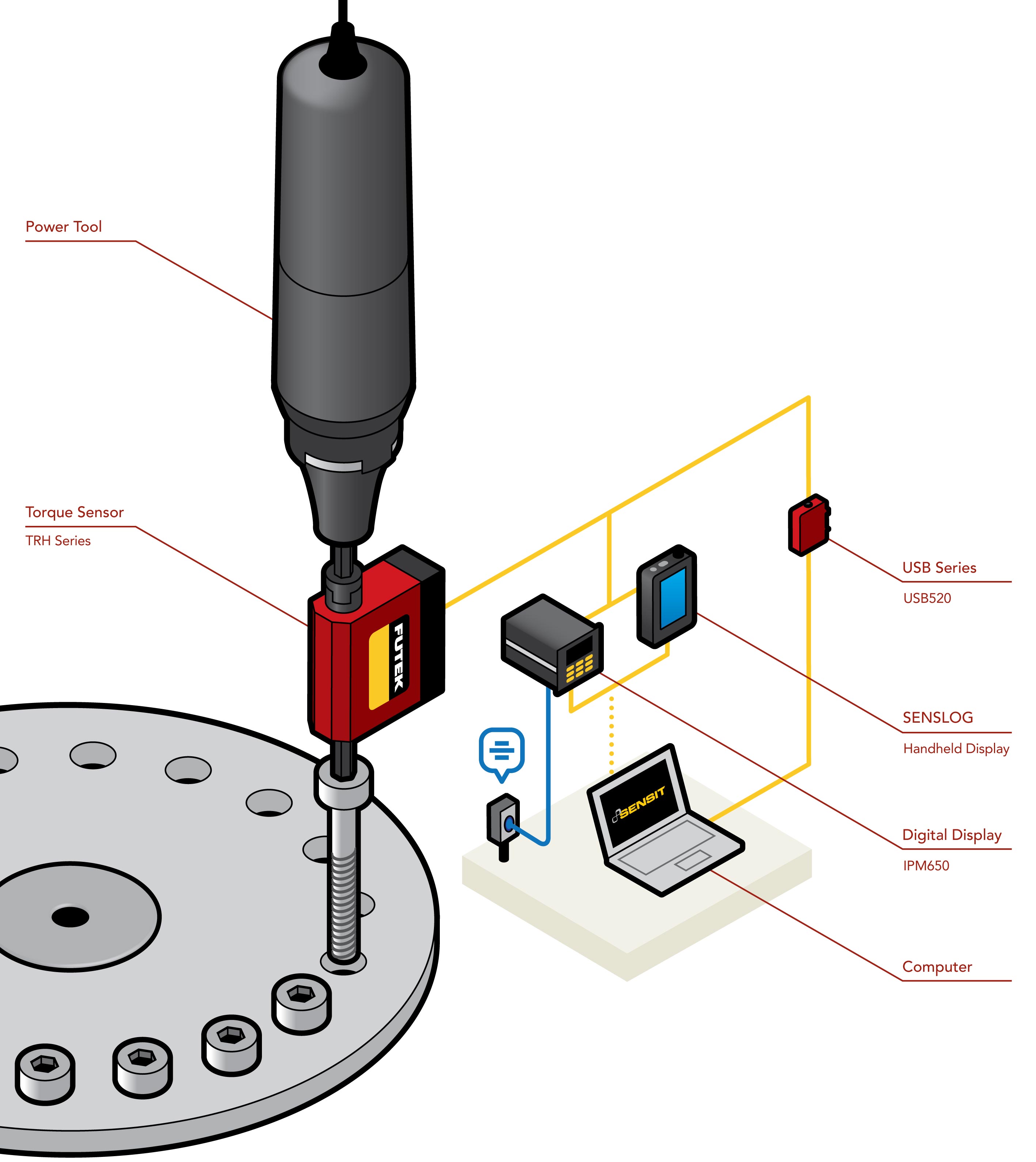

Torque Sensor - Power Tool Measurement
How it Works
  1. Under quality assurance standards, rotary torque sensors are used to verify the bolt fastening of power tools and screw spindles.
  2. In this application, FUTEK’s TRH Rotary Torque Sensor has been coupled to a power tool to verify its torque and rotational angle as it fastens a bolt into a fixed plate.
  3. These measurements can be read on either FUTEK's digital displays, the IHH500 or IPM650, or streamed directly to a PC using FUTEK’s USB520.
  4. The USB520 is the ideal data exchange solution for systems that require translation of rotary torque encoder readings, such as angle and speed. Its compact and robust design also makes the USB520 fitting for this type of industrial application.
  5. Operators also can utilize FUTEK's SENSIT Test and Measurement Software to log and graph all data.
All FUTEK application illustrations are strictly conceptual. Please contact us with questions.
Torque Sensor - TRH SERIES - Rotary Hex Drive Torque Sensors
TRH SERIES
Rotary Hex Drive Torque Sensors
Torque Sensor - USB SOLUTIONS - High Resolution and Performance USB System
USB SOLUTIONS
High Resolution and Performance USB System
Torque Sensor - IHH500 - Intelligent Digital Hand Held Display
IHH500
Intelligent Digital Hand Held Display
Torque Sensor - IPM650 - Intelligent Panel Mount
IPM650
Intelligent Panel Mount
Torque Sensor - SOFTWARE - SENSIT™ Test and Measurement
SOFTWARE
SENSIT™ Test and Measurement
