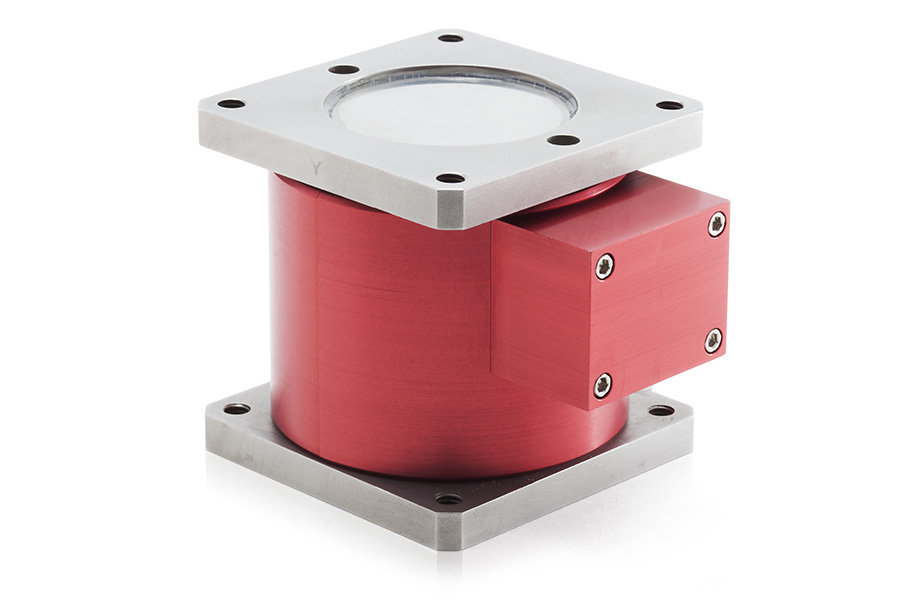

Custom Tri-Axial Force/Torque Load Cell

QMA135 , Fz: 300 N ; Fy: 1200 N ; Mz: 50 N-m , Tri-Axial Pitch/Yaw/Thrust 3DOF Load Cell , Material - 17-4 PH S.S. , M6x1-Thread , 10 Pin Lemo receptacle EGG.1B.310

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Custom Tri-Axial Load Cell

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	Mz-1		10		Vdc
	Fy-1		10		Vdc
	Fz-1		10		Vdc
Excitation	Mz-1	1		18	Vdc
	Fy-1	1		18	Vdc
	Fz-1	1		18	Vdc
Input Resistance	Mz-1		350		Ohms nom.
	Fy-1		350		Ohms nom.
	Fz-1		350		Ohms nom.
Safe Overload	Mz-1			150	% of R.O.
	Fy-1			150	% of R.O.
	Fz-1			150	% of R.O.
Capacity	Mz-1			50	N-m
	Fy-1			1200	N
	Fz-1			300	N
Hysteresis	Mz-1	-1		1	% of R.O.
	Fy-1	-1		1	% of R.O.
	Fz-1	-1		1	% of R.O.
Nonlinearity	Mz-1	-1		1	% of R.O.
	Fy-1	-1		1	% of R.O.
	Fz-1	-1		1	% of R.O.
Nonrepeatability	Mz-1	-0.25		0.25	% of R.O.
	Fy-1	-0.25		0.25	% of R.O.
	Fz-1	-0.25		0.25	% of R.O.
Output Resistance	Mz-1		350		Ohms nom.
	Fy-1		350		Ohms nom.
	Fz-1		350		Ohms nom.
Rated Output	Mz-1		2		mV/V nom.
	Fy-1		1		mV/V nom.
	Fz-1		1		mV/V nom.
Compensated Temperature	Mz-1	60		160	F
	Fy-1	60		160	F
	Fz-1	60		160	F
Operating Temperature	Mz-1	-40		180	F
	Fy-1	-40		180	F
	Fz-1	-40		180	F
Temperature Shift Span	Mz-1	-0.02		0.02	% of Load/F
	Fy-1	-0.02		0.02	% of Load/F
	Fz-1	-0.02		0.02	% of Load/F
Temperature Shift Zero	Mz-1	-0.02		0.02	% of R.O./F
	Fy-1	-0.02		0.02	% of R.O./F
	Fz-1	-0.02		0.02	% of R.O./F
Zero Balance	Mz-1	-3		3	% of R.O.
	Fy-1	-3		3	% of R.O.
	Fz-1	-3		3	% of R.O.
