QLA193 play_arrowQSH00353

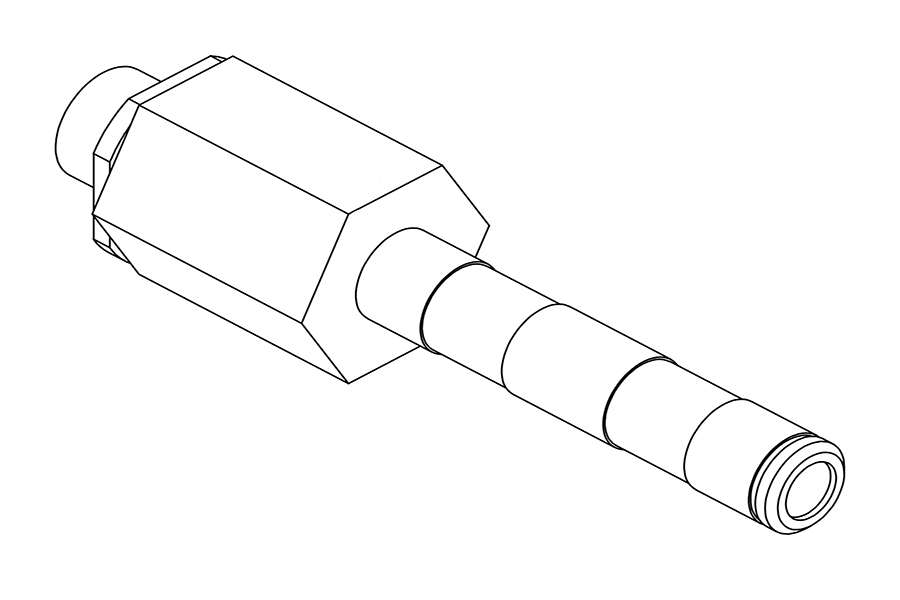

Amplified Load Sensing Clevis Pin

QLA193 , 1500 lb , Amplified Load Sensing Clevis Pin , 0.5" OD , Replacement Load Pin for QLA110 (Q11834) , One Piece Flexure
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
QLA193
QLA193
Description

Model QLA193 is a custom amplified load sensing clevis pin that is capable of measuring up to 1500 lb (6672 N). The OD of the pin is 0.490 inches (12.45 mm). The body of the sensor is made of stainless steel and includes an internal amplifier that outputs a 5 VDC analog signal.  It includes a 6 pin Bendix receptacle. FUTEK is capable of designing clevis pins with various geometries and capacities.

Features
  • 5 VDC nominal rated output
  • Operating temperature of -40 to 180 °F (-40 to 82 °C)
  • Body of sensor features an anti-rotation key
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
CHANNELMINTYPMAXUNIT
