QLA212 play_arrowQSH00334

Collet Force Verification System

QLA212 , 500 lb , Collet Force Verification System , Designed to Calibrate QLA208 , Material - 17-4 PH S.S. , Standard
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description

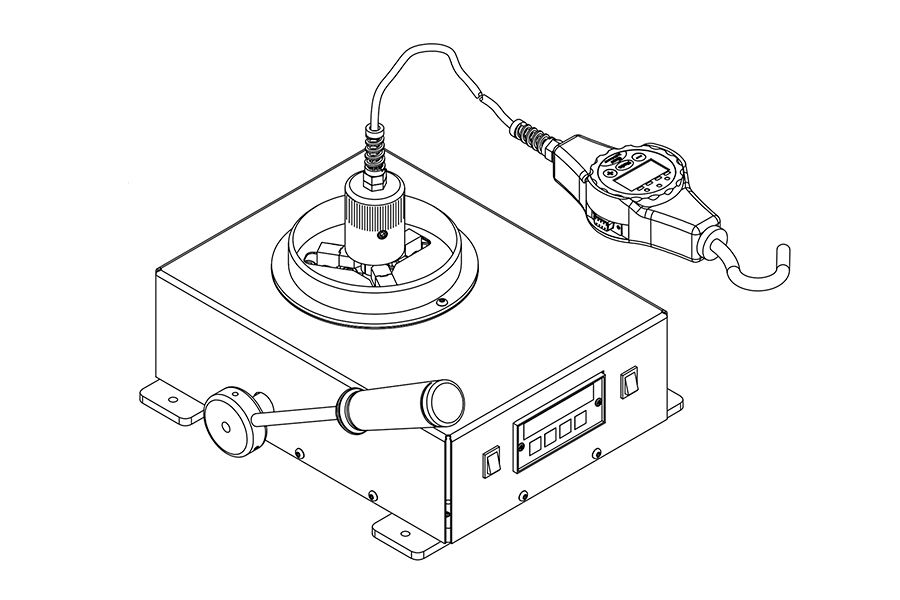

Model QLA212 is a custom collet force verification system designed measure the clamping force of an IRIS collet chuck. It is capable of measuring up to 500 lbf (2224 N) and features a dimensionally adjustable chuck with built-in sensors. It also includes a rotating knob to adjust the clamping force of the chuck.


Features
  • Includes 120 VAC power supply converter to 12 VDC
  • Operating temperature of 32 to 130 °F (0 to 54 °C
  • Safe overload protection of 150% of R.O.
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Performance
CHANNELMINTYPMAXUNIT
Capacity
1
500
lbs
Multi Axis Sensor, Force, Torquestore custom-sensors-and-instruments load-cells-force-sensors collet-force-verification-system-QLA212 QSH00334
+
+
+
+
+
+
