Item Number | Load Capacity | Thread Size | Outer Diameter In Inches | Height In Inches | Length In Inches | Width In Inches | Output Type | Connection Type | # Of Bridges/channels | Connector Type | Load Directions | Nonrepeatability | Max Operating Temperature | Min Operating Temperature | Max Excitation | Nonlinearity | Input Resistance | Ip / Nema Rating | Material | Description | Max Compensated Temperature | Min Compensated Temperature | Weight In Lb | Custom Special |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

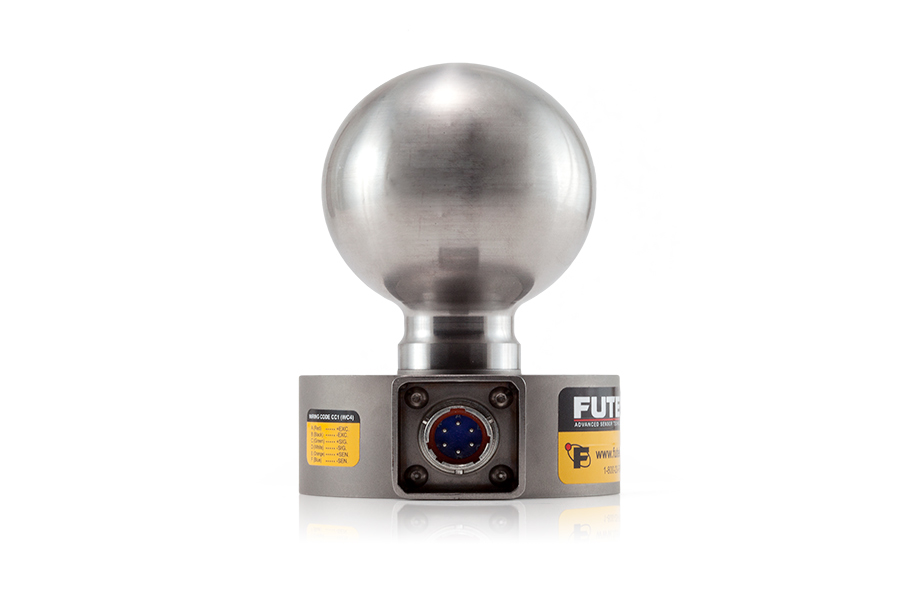

10000 lb | 3/8-16 | 2.9 | 4.2 | 2.9 | 2.9 | mA | Connector | 1 | 6 Pin Bendix Receptacle, PT02H-10-6P | Compression | 0.1 %RO | 200 F | 32 F | 30 VDC | 0.25 %RO | 350 Ohm | IP65 | 17-4 PH S.S. | QLA339 , Custom 2 1/2" Ball Hitch Load Cell , 10000 lb , 4-20 mA (3 wire) Amplified Output , 2.9" [25.4 mm] OD , Ball Material of ASTM A36 & Base Material of 17-4PH S.S. , 6 Pin Bendix Connector | 160 F | 60 F | 4.5 | Y |
Custom Landing Gear Load Cell
