Item Number | Load Capacity | Thread Size | Outer Diameter In Inches | Height In Inches | Length In Inches | Width In Inches | Output Type | Connection Type | # Of Bridges/channels | Cable Type | Cable Length | Load Directions | Nonrepeatability | Max Operating Temperature | Min Operating Temperature | Max Excitation | Nonlinearity | Input Resistance | Material | Description | Max Compensated Temperature | Min Compensated Temperature | Custom Special |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
500 lb | M5x0.8 | 0.394 | 0.65 | 0.394 | 0.394 | mV/V | Cable | 1 | 34 Awg 4 Conductor Braided Cable | 30 ft | Compression | 0.5 %RO | 200 F | -40 F | 15 VDC | 2 %RO | 350 Ohm | 17-4 PH S.S. | QLA336 , 500 lb , Custom Miniature Load Button Column Load Cell w/ Male Threaded Base, Material - 17-4 PH S.S, M5x0.8 Thread , 34 Awg 4 Conductor Braided Cable , 30 ft Long | 160 F | 60 F | N |

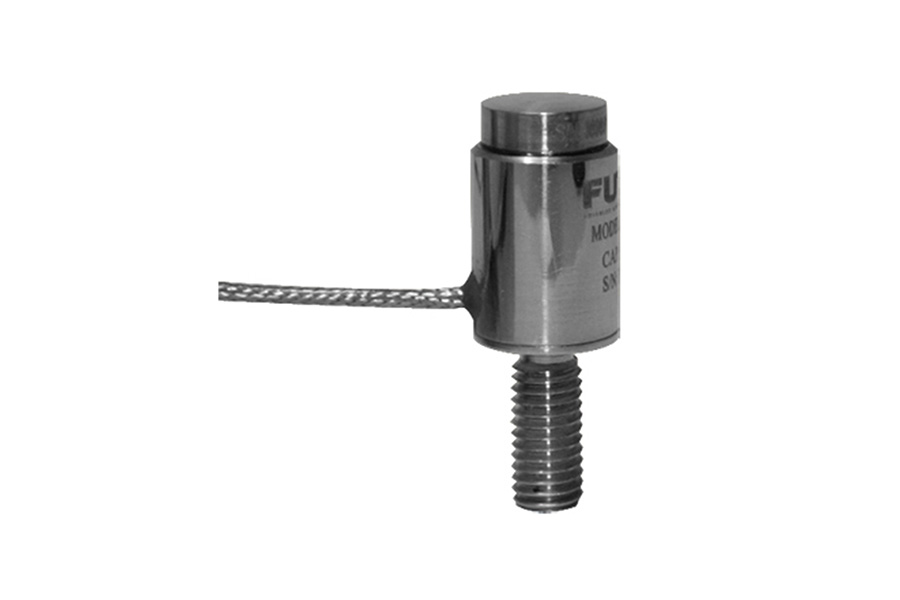

Model QLA336 is a custom miniature column load cell with male threaded base (M5x0.8). It offers a rated capacity of 500 lb (2224 N), with a safe overload protection of 1500 lb (6672 N). With a diameter of 0.394” (10 mm) and a height of 0.53” (13.3mm), it is ideal for tight spaces. It is constructed of stainless steel, with a raised surface radius to lower the possibility of off-center loading. It features a male threaded base (M5x0.8) for easy installation. This load cell is designed to measure loads in compression and is thermally compensated for 60 to 160 °F (15 to 71 °C). It offers a nonlinearity of ±2.0% of the Rated Output. It includes a 34 AWG 4 conductor shielded cable 30 ft (9m) long.
