QLA396 QSH01970

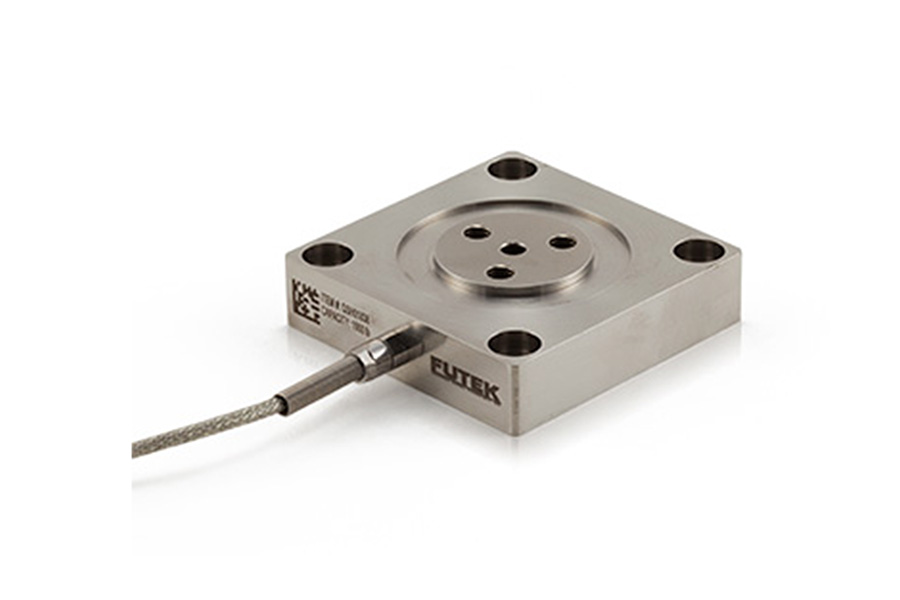

Custom Square Body Center Flange Load Cell

QLA396 , 1500 lb , Custom Square Flange Mount Thru Hole Tension and Compression Load Cell , 0.1878" [4.77 mm] ID x 0.625" [15.88 mm] H , RoHS Compliant , Material - 17-4PH S.S. , 28 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long

Spec Sheet

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

Custom Low Profile Flange to Flange Tension and Compression Load Cell with Anti-Rotation Features

Features

15.88 mm Low Profile Height
4.77 mm Through Hole ID
Active and Fixed End Anti-Rotation Features
Integrated Cable with Robust Strain Relief

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		15	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			1500	lbs
Hysteresis	1	-1		1	% of R.O.
Nonlinearity	1	-1		1	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	70		170	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.01		0.01	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
