QLA284

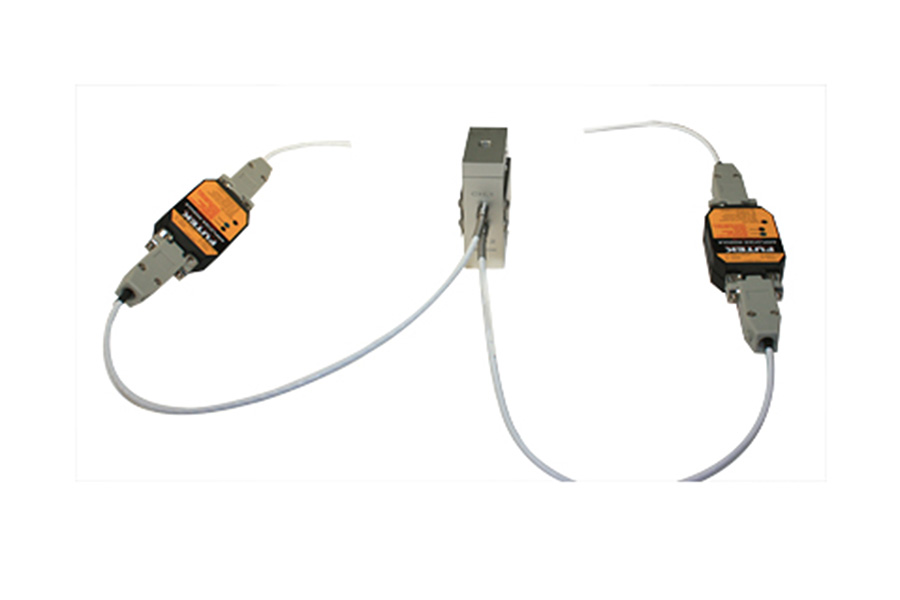

Dual Bridge S-Beam Load Cell

1 Products
settings
Item Number
Load Capacity
Thread Size
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Environmental Conditions
Features
Output Type
Connection Type
# Of Bridges/channels
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Weight In Lb
Custom Special
Safe Overload
200 lb
3/8-24
2
2.98
2
1.27
Vibration Rated
Overload Protection
mV/V
Cable & Connector
4
26 Awg 4 Conductor Braided Shielded Teflon Cable
1.5 ft
Tension & Compression
0.05 %RO
158 F
32 F
15 VDC
0.25 %RO
1000 Ohm
IP64
7075-T6
QLA284 , Ch 1/2/3/4: 200 lb, Ch 4: 200 lb , Tension & Compression Flight Rated Load Cell with 1000% Overload Protection , Material - 7075-T6 , 3/8-24-Thread , Quad Bridge , M27500 26 Awg cable with 2x D38999/26MB35Px Connector
120 F
32 F
0.7
Y
1062.5 %RO
+
