QLA416 play_arrowQSH02052

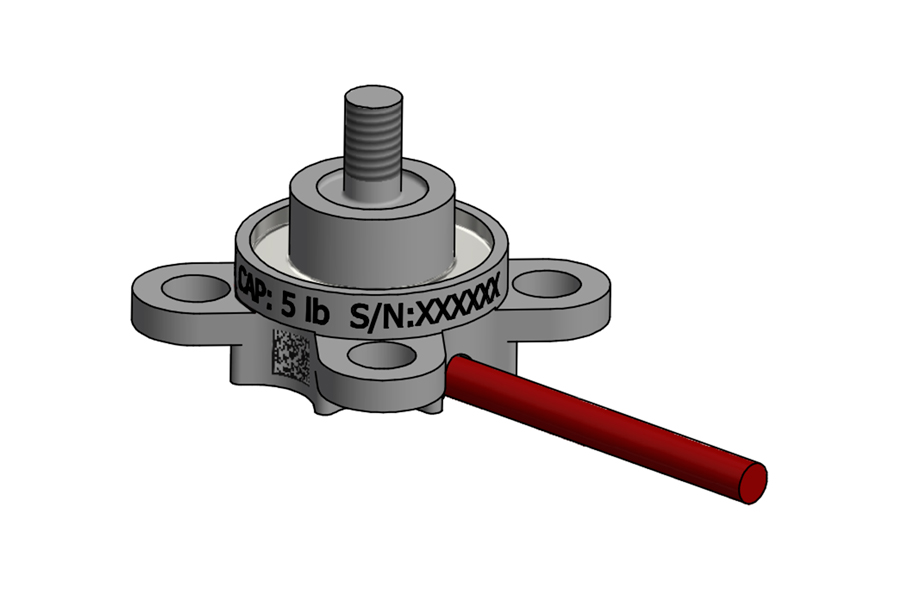

Sub-Miniature Custom Loadcell with Integrated Bellow and Customer Plate

QLA416 , 5 lb , Sub-Miniature Male Threaded Load Cell , M3x0.5-Thread , Vacuum or IP68 Submersible O-Ring Groove , 9.5 mm H x 14 mm OD , RoHS Lead Free , Hard Anodized Aluminum , 29 Awg 4 Conductor Braided Cable, 10 ft Long
Spec Sheet Spec Sheet
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description
Features
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
5
Vdc
Shunt Calibration
1
100
kOhm
Excitation
1
1
7
Vdc
Input Resistance
1
350
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
200
% of R.O.
Capacity
1
5
lbs
Hysteresis
1
-0.5
0.5
% of R.O.
Nonlinearity
1
-0.5
0.5
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
Output Resistance
1
350
Ohms nom.
Rated Output
1
1
mV/V nom.
Compensated Temperature
1
100
248
F
Operating Temperature
1
-60
248
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
