PMP941 , 20 Bar , Male Port Pressure (mV/V) , Standard , Material - TITANIUM (6AL4V) , 1/4-28-Thread , Relative , 26 Awg 4 Conductor Viton Jacketed Shielded Cable , 3 ft Long

Spec Sheet

3D Model Download

Listed price is in U.S. currency and subject to verification along with availability

Description

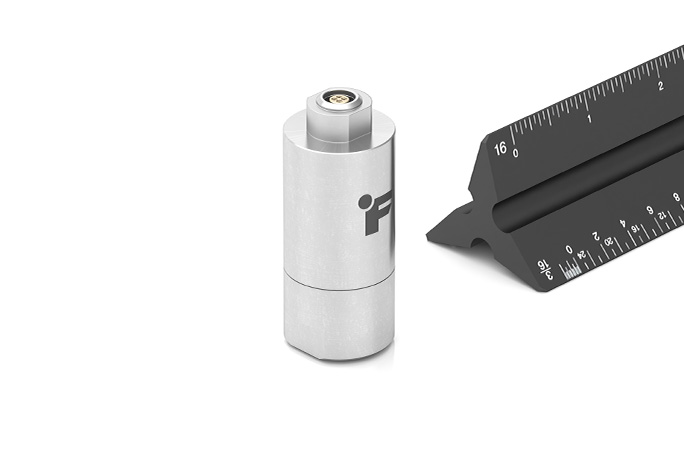

Ultra Miniature Titanium Pressure Sensor

The PMP941 Pressure Sensor is an ultra miniature Pressure Sensor made of all titanium construction. This Pressure Sensor is made for harsh environments capable of sustaining most corrosive and industrial applications. The PMP941 is miniature and ultra light design weighing < 10g. This small sized transducer provides high performance with an output of 1-2mV/V from a 5-15VDC supply. Input pressure range is 73 up to 5800 PSI, withstanding vibrations of up to 50g at up to 20-2000Hz.

Product Highlights

Miniature Pressure Sensor
High Bandwidth Capability: up to 5kHz
High Temperature Capability: -40 to +140 degrees Celsius
Titanium Construction
Weight > 10g

For those who are a looking for a complete system solution, FUTEK can provide digital displays such as the IPM500 or related instrumentation. FUTEK’s IPM500 Panel Mount Signal Conditioner with Digital Display is FUTEK’s general solution for a complete sensor and instrumentation system.

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	5		15	Vdc
Input Resistance	1	3200	4000	4800	Ohms nom.
Insulation Resistance	1	1000			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			20	BAR (pressure)
Hysteresis	1	-0.25		0.25	% of R.O.
Nonlinearity	1	-0.25		0.25	% of R.O.
Nonrepeatability	1	-0.02		0.02	% of R.O.
Output Resistance	1	2800	3500	4200	Ohms nom.
Rated Output	1	1.455	1.5	1.545	mV/V nom.
Compensated Temperature	1	32		140	F
Operating Temperature	1	-40		257	F
Temperature Shift Span	1	-0.01		0.01	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
Zero Balance	1	-0.05		0.05	Vdc
