LCM375 play_arrowQSH01679

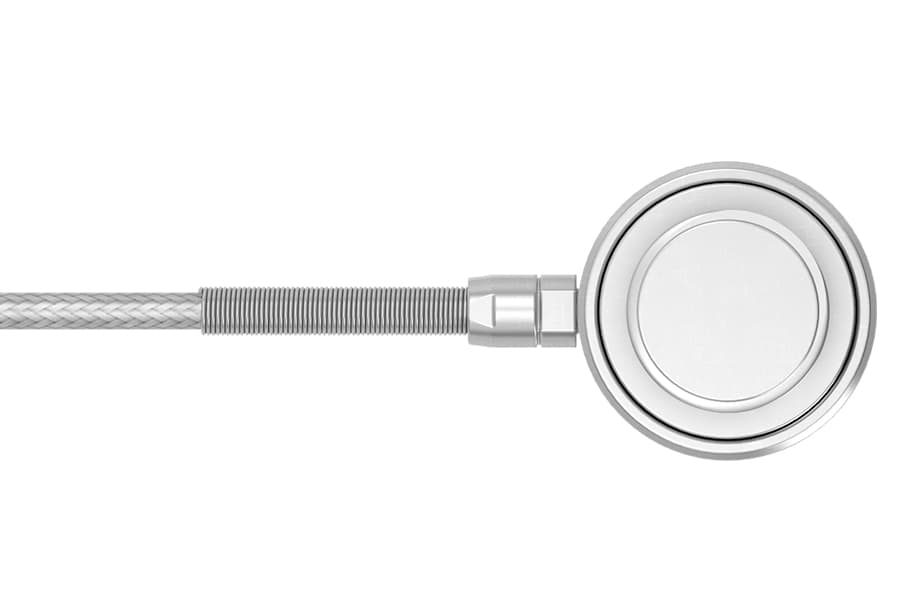

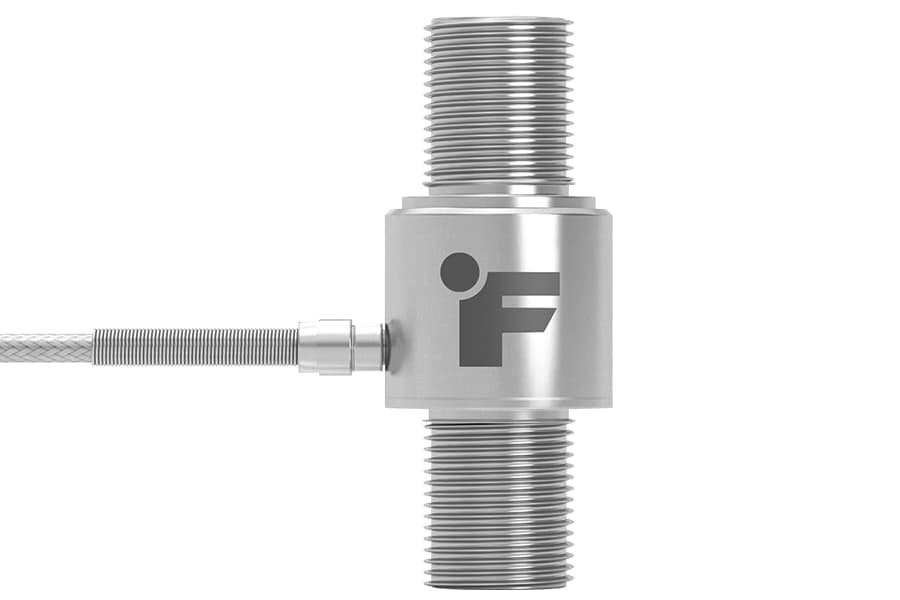

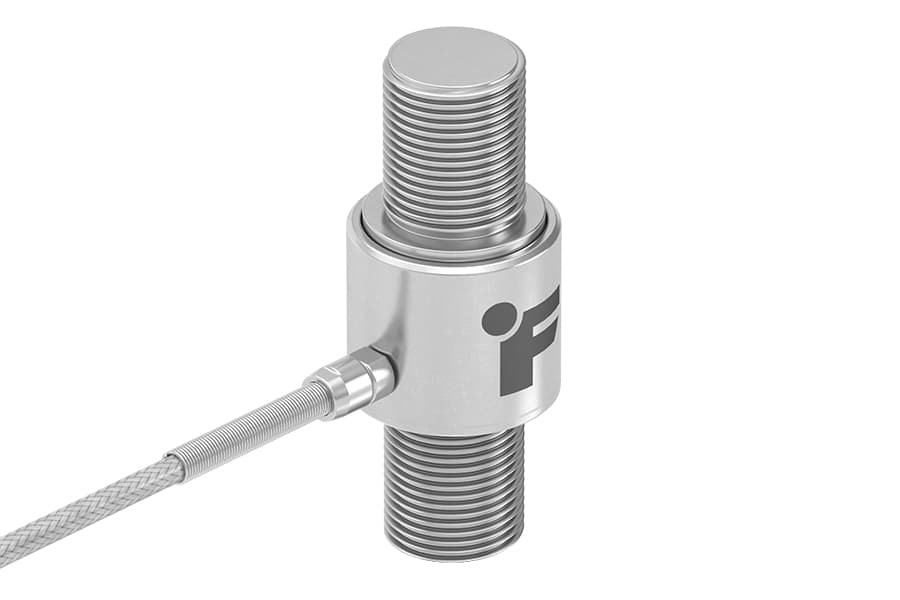

Miniature Threaded In Line Load Cell

LCM375 , 10000 lb , Fatigue Rated Miniature Inline Threaded Tension/Compression Load Cell , M16x2-Thread , Matched Output , Water Resistant to IP65 , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
Extraneous Load Factor Extraneous Load Factor
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

In Line Load Cell

Model LCM375 is an In Line Load Cell built for Endurance, Press, or Inline applications. The standard LCM375 In Line Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 10 feet long 28 AWG 4 conductor shielded PVC cable. This product offers an exceptional miniature design with a height of 1.03” [26.2 mm] and a diameter of 1.12” [28.3 mm]. You will also find options for external matched output or a Teflon cable readily available. For more capacity options please see the LCM300 or LCM325.

The In Line Load Cell offers high accuracy and high stiffness. It has Nonlinearity of ±0.5% and Deflection of 0.002” [0.05 mm] nominal. The standard LCM375 In Line Load Cell can be modified or customized to meet your requirements and most  capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology.

Product Highlights:

  • Weight: 250 g
  • Miniature Design
  • Resistance to High Extraneous Loads
  • Low Deflection
  • 17-4 Stainless Steel Construction
  • Both Tension & Compression
  • Utilizes Metal Foil Strain Gauge Technology

For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays. FUTEK LCM Series is also available with TEDS / IEEE1451.4 option.

Features
  • Tested and Rated to over 3.5 billion fatigue cycles
  • Matched output for interchangeability
  • Ingress Protection to IP65
  • Natural Frequency of 14 kHz
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Shunt Calibration
1
60.4
kOhm
Excitation
1
1
18
Vdc
Input Resistance
1
350
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
10000
lbs
Hysteresis
1
-0.5
0.5
% of R.O.
Nonlinearity
1
-0.5
0.5
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
Output Resistance
1
350
Ohms nom.
Rated Output
1
1.995
2.005
mV/V nom.
Compensated Temperature
1
-40
221
F
Operating Temperature
1
-60
221
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.005
0.005
% of R.O./F
Zero Balance
1
-5
5
% of R.O.
