LCF506_Fatigue Rated Pancake Load Cell
LCF506

Fatigue Rated Pancake Load Cell

6 Products
settings
Item Number
Load Capacity
Thread Size
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Environmental Conditions
Features
Output Type
Connection Type
# Of Bridges/channels
Connector Type
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Weight In Lb
Custom Special
Connection Code
Mechanical Overload Protection
Safe Overload
Fatigue Rated
Integrated Teds
12500 lb
1 1/4-12
5.98
3.5
5.98
5.98
Water Resistance
Fatigue Rated, RoHS
mV/V
Connector
2
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.02 %RO
200 F
-60 F
20 VDC
0.1 %RO
350 Ohm
IP65
17-4 PH S.S.
LCF506 , Ch 1: 12500 lb; Ch 2: 12500 lb , Fatigue Rated Low Profile Universal Pancake Load Cell with Tension Base , 1 1/4-12-Thread , Dual Bridge , Material - 17-4 PH S.S. , RoHS Compliant , 6 Pin Bendix Receptacle , PT02E-10-6P
160 F
60 F
20
Y
CC1
300 %RO
12500 lb
1 1/4-12
5.98
3.5
5.98
5.98
Water Resistance
Fatigue Rated, RoHS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.02 %RO
200 F
-60 F
20 VDC
0.1 %RO
350 Ohm
IP65
17-4 PH S.S.
LCF506 , 12500 lb , Fatigue Rated Pancake Load Cell with Tension Base , 1 1/4-12-Thread , Fatigue Rated , 2 mV/V , Material - 17-4 PH S.S. , RoHS Compliant , 6 Pin Bendix Receptacle, PT02E-10-6P
160 F
60 F
20
N
CC1
No
300 %RO
Yes
No
12500 lb
M33x2
5.98
3.5
5.98
5.98
Water Resistance
Fatigue Rated, RoHS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.02 %RO
200 F
-60 F
20 VDC
0.1 %RO
350 Ohm
IP65
17-4 PH S.S.
LCF506 , 12500 lb , Fatigue Rated Pancake Load Cell with Tension Base , M33x2-Thread , Fatigue Rated , 2 mV/V , Material - 17-4 PH S.S. , RoHS Compliant , 6 Pin Bendix Receptacle, PT02E-10-6P
160 F
60 F
20
N
CC1
No
300 %RO
Yes
No
25000 lb
1 1/4-12
5.98
3.5
5.98
5.98
Water Resistance
Fatigue Rated, RoHS
mV/V
Connector
2
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.02 %RO
200 F
-60 F
20 VDC
0.1 %RO
350 Ohm
IP65
17-4 PH S.S.
LCF506 , Ch 1: 25000 lb; Ch 2: 25000 lb , Fatigue Rated Low Profile Universal Pancake Load Cell with Tension Base , 1 1/4-12-Thread , Dual Bridge , Material - 17-4 PH S.S. , RoHS Compliant , 6 Pin Bendix Receptacle , PT02E-10-6P
160 F
60 F
20
Y
CC1
300 %RO
25000 lb
1 1/4-12
5.98
3.5
5.98
5.98
Water Resistance
Fatigue Rated, RoHS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.02 %RO
200 F
-60 F
20 VDC
0.1 %RO
350 Ohm
IP65
17-4 PH S.S.
LCF506 , 25000 lb , Fatigue Rated Pancake Load Cell with Tension Base , 1 1/4-12-Thread , Fatigue Rated , 2 mV/V , RoHS Compliant , Material - 17-4 PH S.S. , 6 Pin Bendix Receptacle, PT02E-10-6P
160 F
60 F
20
N
CC1
No
300 %RO
Yes
No
25000 lb
M33x2
5.98
3.5
5.98
5.98
Water Resistance
Fatigue Rated, RoHS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.02 %RO
200 F
-60 F
20 VDC
0.1 %RO
350 Ohm
IP65
17-4 PH S.S.
LCF506 , 25000 lb , Fatigue Rated Pancake Load Cell with Tension Base , M33x2-Thread , Fatigue Rated , 2 mV/V , Material - 17-4 PH S.S. , RoHS Compliant , 6 Pin Bendix Receptacle, PT02E-10-6P
160 F
60 F
20
N
CC1
No
300 %RO
Yes
No

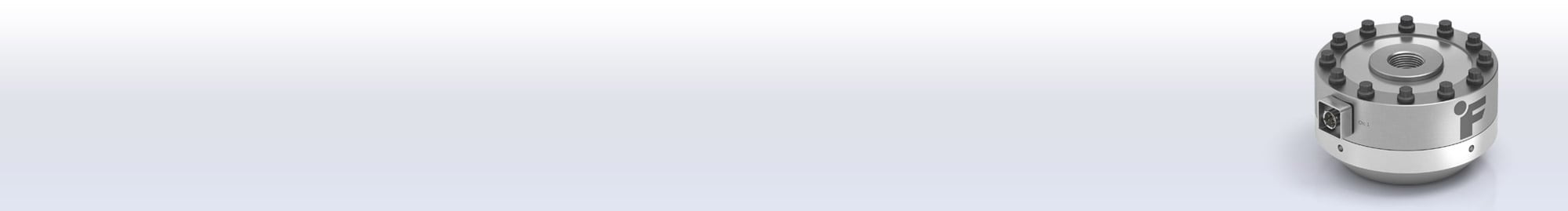

Model LCF506 is a Fatigue Rated Pancake Load Cell  designed for tension and compression applications. The flexure is made from a rugged 17-4 Stainless Steel ranging from 12,500 lbs to 25,000 lbs, with options such as Metric Threads and Amplified Version readily available. The LCF506 Pancake Load Cell is suitable for Inline applications on Actuators or Threaded Assemblies.

The Fatigue Rated Pancake Load Cell uses metal strain gauge technology, offering high accuracy. It has Nonlinearity of ±0.1% and Deflection of 0.001” to 0.0015” nominal. The standard LCF506  can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery.

+
