QLA324 play_arrowQSH01286

Custom Axial Load Ring

QLA324 , 300000 N (67000 lb) , Custom Axial Load Ring , 5.51" [140 mm] ID, Material - 17-4 PH S.S. , 20 ft [6 m] long
Listed price is in U.S. currency and subject to verification along with availability
Description

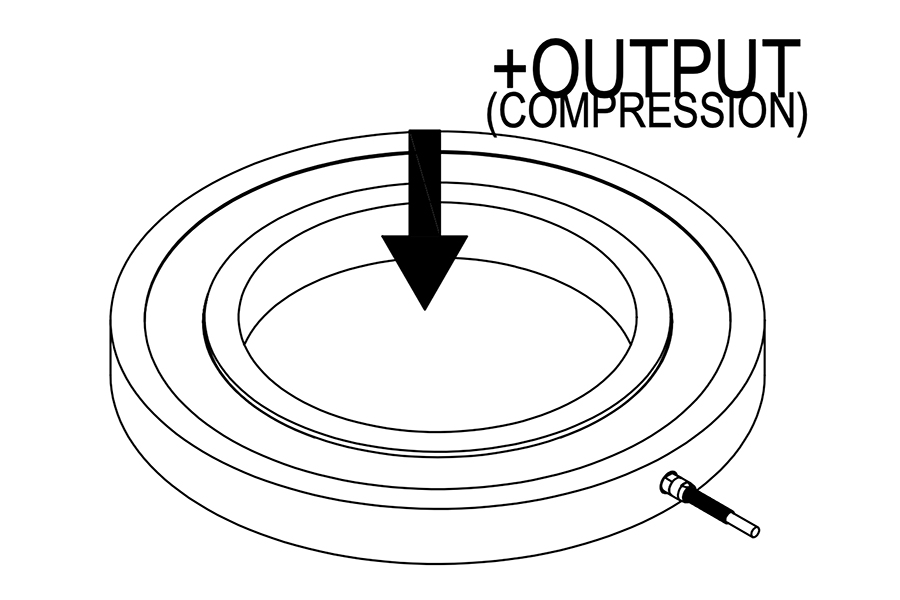

Model QLA324 is a custom Donut Load Cell (aka Ring Load Cell) built for press or inline applications. It has a robust construction of 17-4 precipitation hardened stainless steel, with an ID of 5.512” (140 mm) and a 20-ft (6.1 m) 4 conductor shielded Teflon cable with built-in strain relief. This ring load cell is low-profile, standing at 0.934” (2.37 cm). Despite it’s low profile, it has a rated capacity of 67000 lb (300 kN).

Features
  • Fast response time
  • Robust strain relief
  • Compatible in load washer applications
Technical Documents
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
350
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
300000
N
Hysteresis
1
-0.25
0.25
% of R.O.
Nonlinearity
1
-0.5
0.5
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
Output Resistance
1
350
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-40
180
F
Temperature Shift Span
1
-0.005
0.005
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
Zero Balance
1
-2
2
% of R.O.
