QLA371 play_arrowQSH00659

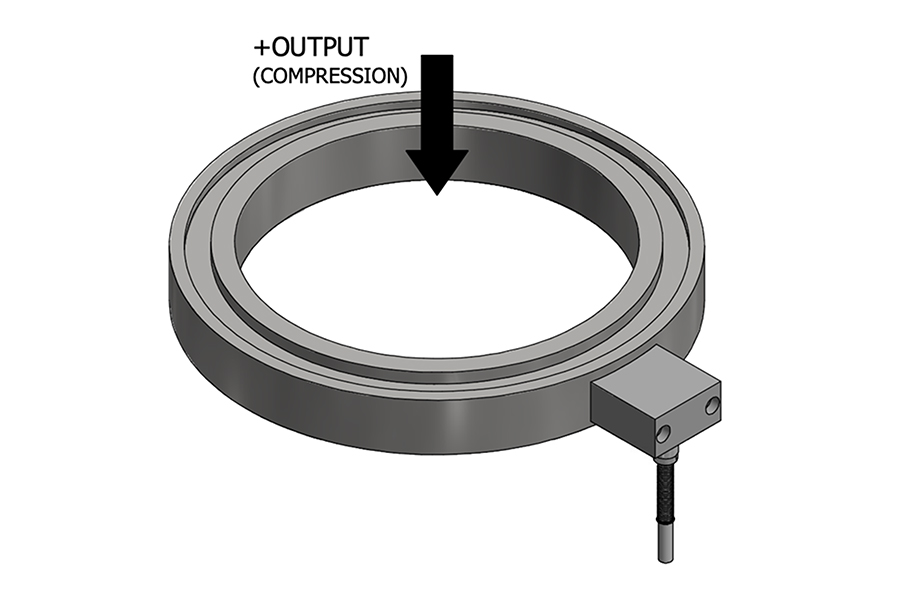

Custom Compression Donut Load Cell

QLA371, 5000 lb, Custom Compression Donut Load Cell, Material - 17-4 PH S.S., 5.68" OD x 4.25" [108 mm] ID, 24 Awg 4 Conductor Braided Shielded Teflon Cable , 2 inch Long to 4 Pin Lemo PHG.0B.304.CLLD (CC4)
Listed price is in U.S. currency and subject to verification along with availability
QLA371
QLA371
Description

QLA371 Custom Compression Donut Load Cell

Features
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
700
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
5000
lbs
Hysteresis
1
-1
1
% of R.O.
Nonlinearity
1
-1
1
% of R.O.
Nonrepeatability
1
-0.5
0.5
% of R.O.
Output Resistance
1
700
Ohms nom.
Rated Output
1
1.5
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-40
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
Zero Balance
1
-5
5
% of R.O.
