QLA267 play_arrowQSH00763

Custom Compression Load Cell

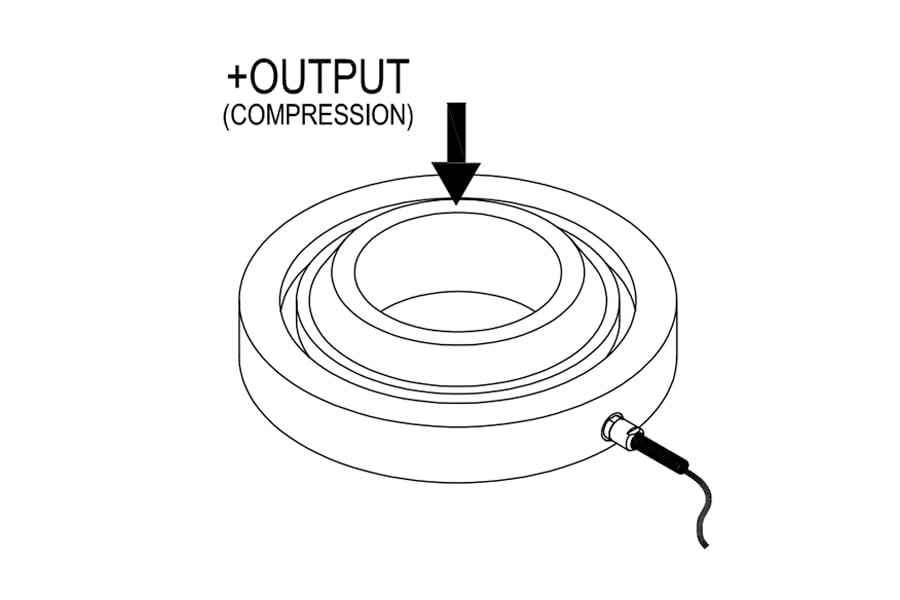

QLA267 , 60000 lb , Custom Compression Donut Load Cell , Material - 17-4 PH S.S. , 4.01" [101.9 mm] ID , 28 Awg 6 Conductor Shielded Polyurethane Cable , 10 ft Long
Listed price is in U.S. currency and subject to verification along with availability
QLA267
QLA267
Description

QLA267 Custom Compression Load Cell

Features
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
744
Ohms nom.
Safe Overload
1
150
% of R.O.
Capacity
1
60000
lbs
Hysteresis
1
-1
1
% of R.O.
Nonlinearity
1
-2
2
% of R.O.
Nonrepeatability
1
-0.5
0.5
% of R.O.
Output Resistance
1
700
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Zero Balance
1
-2
2
% of R.O.
