QLA305 play_arrowQSH01198

Custom Donut Load Cell

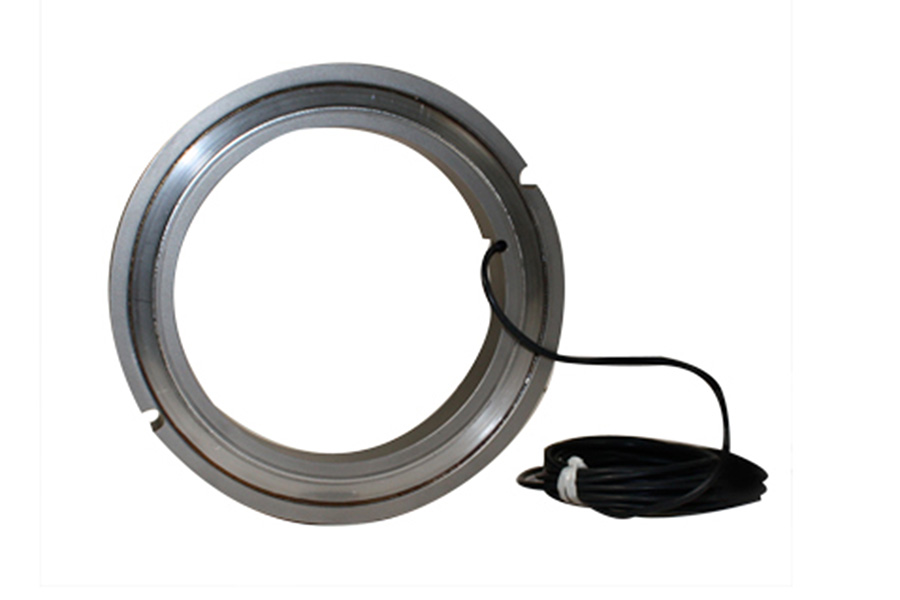

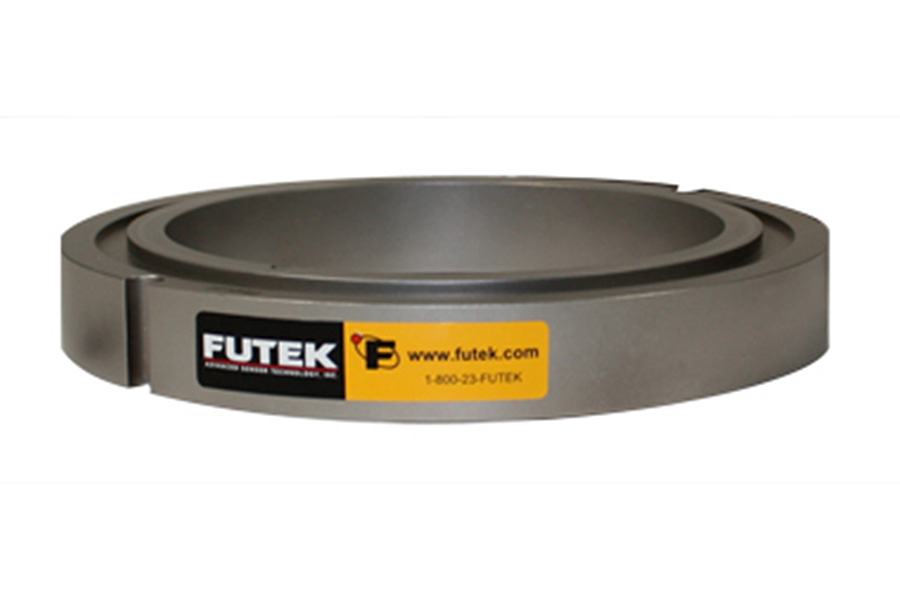

QLA305 , 75000 lb , Custom Donut Load Cell , Material - 17-4 PH S.S. , 3.55" [90.2 mm] ID , Water Resistant , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , Axial Cable Exit Out of The ID , 10 ft Long
Listed price is in U.S. currency and subject to verification along with availability
QLA305
QLA305
QLA305
QLA305
Description
Features
Specifications
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Excitation
1
1
18
Input Resistance
1
350
Ohms nom.
Insulation Resistance
1
500
Safe Overload
1
% of R.O.
Capacity
1
75000
lbs
Combined Nonlinearity and Hyst
1
-3
3
% of R.O.
Output Resistance
1
350
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
60
160
Operating Temperature
1
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
