QSH01650 Custom Laod Cell, Through hole

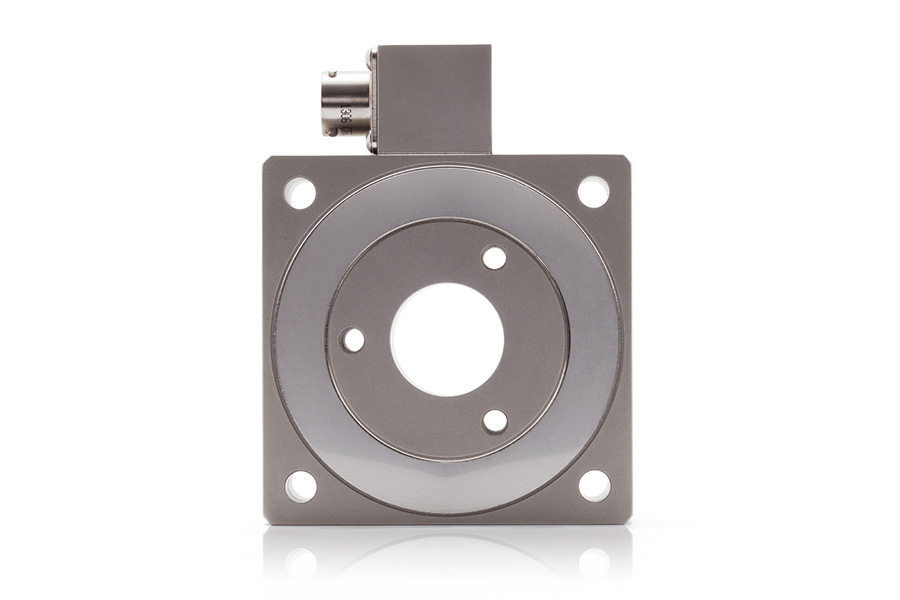

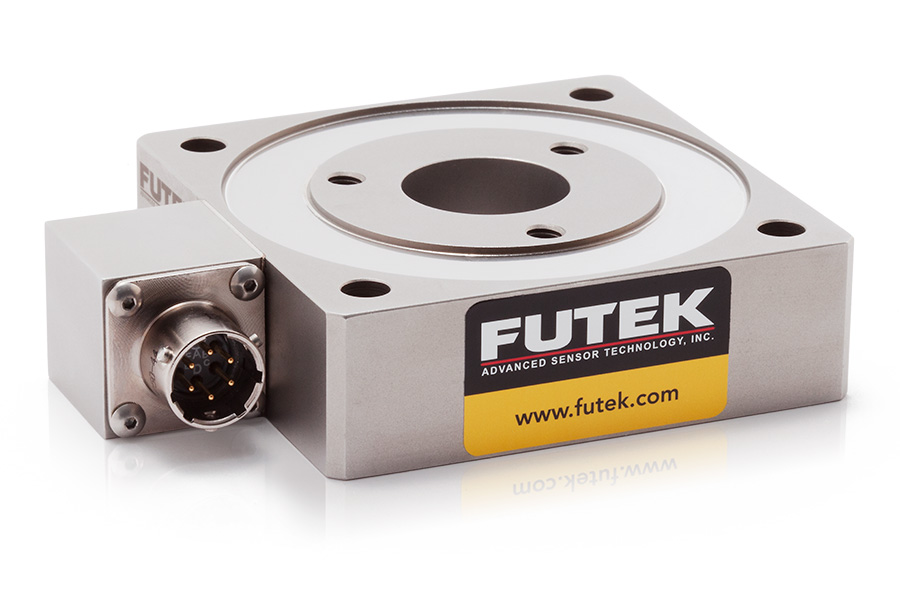

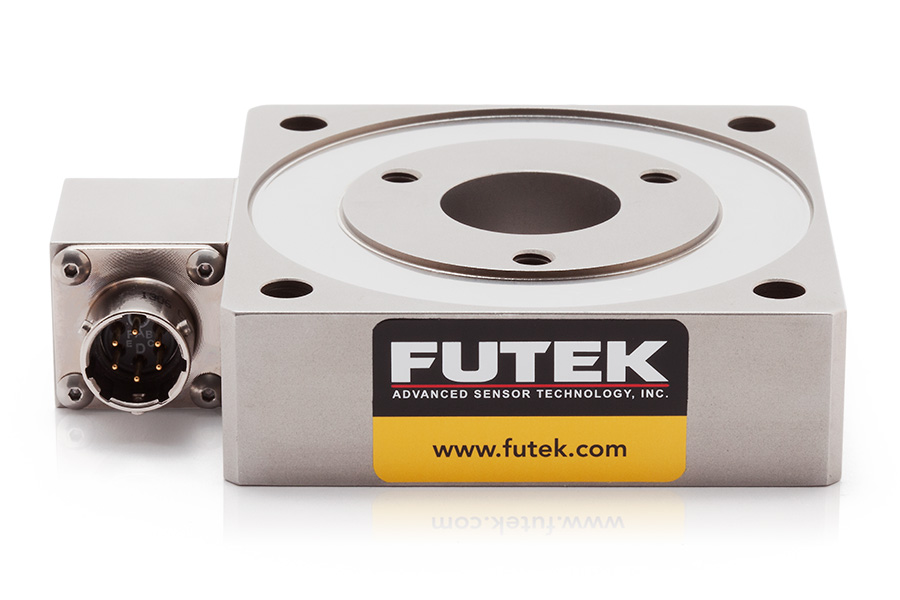

Model QLA370 is a custom through hole tension and compression load cell with a rated capacity of 1200 lb (5.338 kN). It features a square body with 4x 0.27 inch (6.9 mm) diameter holes for mounting provisions, and threaded holes on the active end to measure tension. This sensor includes a 6 Pin Bendix receptacle for simplified installation. It is constructed of robust 17-4 PH Stainless Steel and features an operating temperature of -40 to 200 °F (-40 to 93 °C).

Features

  • Low Profile and Compact Design with Mounting Provisions
  • Designed for tension and compression load monitoring
  • Ideal for acme and lead screw applications
  • Robust Detachable Connector
QSH01650Change
QLA370 , 1200 lb , Custom Low Profile Through Hole Tension & Compression Load Cell , Material - 17-4 PH S.S. , M6x1-Threads & 0.98" [25 mm] ID , 6 Pin Bendix Receptacle, PT02A-10-6P
