QSH01922 Custom Pancake Load Cell w/ Built in Amplifier

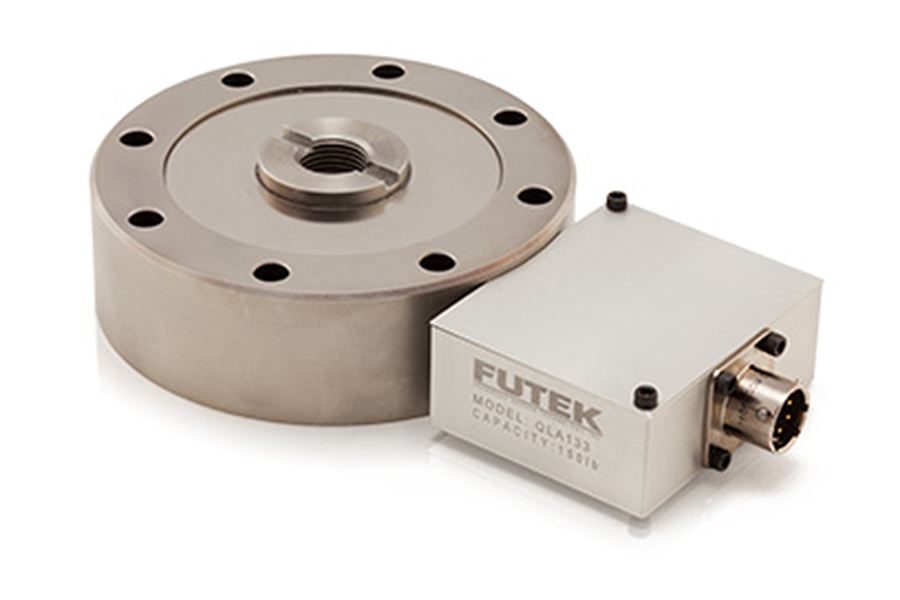

Model QLA133 is a Custom Pancake Load Cell designed for compression applications. The sensor has eight bolt-down holes along its outer diameter for easy mounting. It is available in light weight 200 lb capacity Anodized Aluminum and a fatigue rated 150 lb capacity 17-4 Stainless Steel version. This custom pancake has integrated analog output to allow simplified integration into PLC controllers. Typical applications for the QLA133 include press assembly, automotive seat and material testing where eccentric and extraneous loads could occur.
Features
- Commonly used in automotive seat testing
- Fatigue rated version available
- Resistant to overload
- Resistant to eccentric loading
Sensor
$0.00
Instrument
$0.00
Accessories
$0.00
Calibration
$0.00
02/03 - Select Output Type
QSH01922
Change | Lead Time
QLA133 , 150 lb , Custom Pancake Load Cell w/ Built in Amplifier , Amplified 0-10 VDC Compression , RoHS Compliant, Material - 17-4 PH S.S. , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P, With Custom Keyway
Where is the output of this model going? *
Please select your required output option for a suggested system
Tools, Adapters and Connectors
Please select your required accessories
Package Total $0.00
