QLA376 play_arrowQSH01708

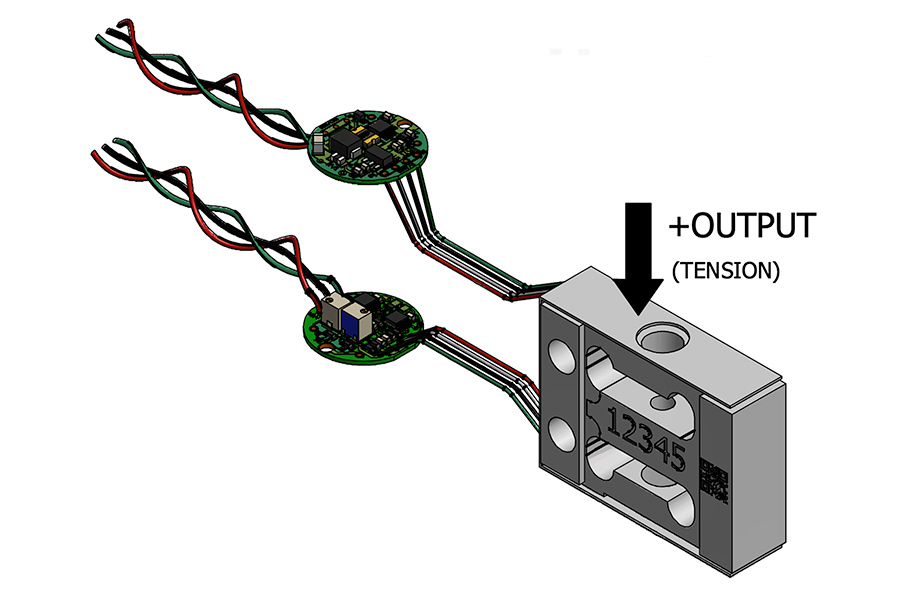

Parallelogram Load Cell, Dual Bridge

QLA376 (LSM300) , 15 lb , Parallelogram Load Cell , RoHS , Dual Bridge , Material - 2024-T4 , #10-32-Thread , Overload Protection , 26 Awg 4 Conductor Spiral Teflon Cable , 6 in Long
Listed price is in U.S. currency and subject to verification along with availability
QLA376
QLA376
Description

Parallelogram Load Cell, Dual Bridge

Features
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
18
Vdc
2
18
Vdc
Excitation
1
12
24
Vdc
2
12
24
Vdc
Safe Overload
1
1000
% of R.O.
2
1000
% of R.O.
Capacity
1
15
lbs
2
15
lbs
Hysteresis
1
-0.05
0.05
% of R.O.
Excitation
2
-0.05
0.05
% of R.O.
Nonlinearity
1
-0.05
0.05
% of R.O.
2
-0.05
0.05
% of R.O.
Nonrepeatability
1
-0.02
0.02
% of R.O.
2
-0.02
0.02
% of R.O.
Output Resistance
1
1000
Ohms nom.
2
1000
Ohms nom.
Rated Output
1
7.9
8
8.1
Vdc
2
7.9
8
8.1
Vdc
Compensated Temperature
1
60
160
F
2
60
160
F
Operating Temperature
1
-45
185
F
2
-45
185
F
Temperature Shift Span
1
-0.01
0.01
% of Load/F
2
-0.01
0.01
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
2
-0.01
0.01
% of R.O./F
Zero Balance
1
0.9
1.1
Vdc
2
0.9
1.1
Vdc
