QLA116 play_arrowQSH00037

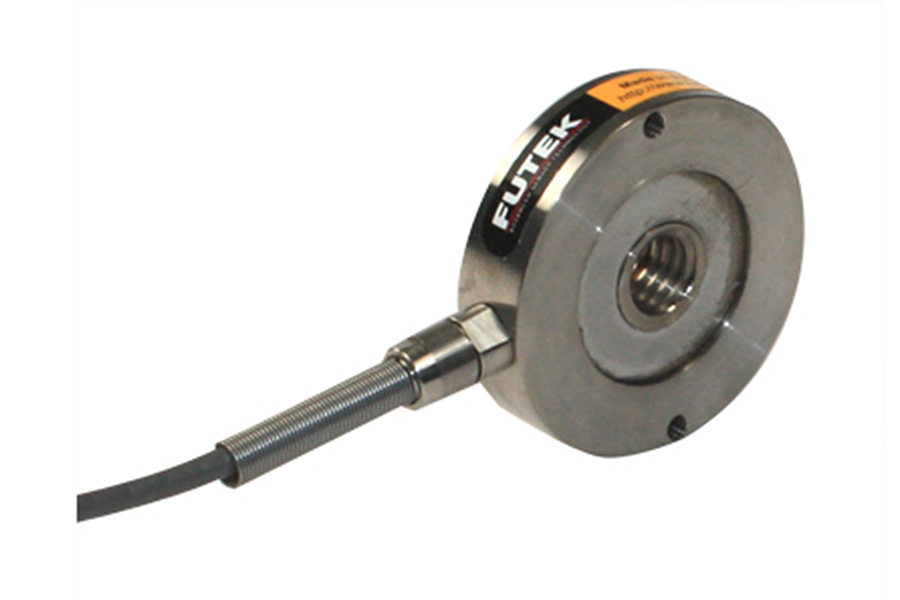

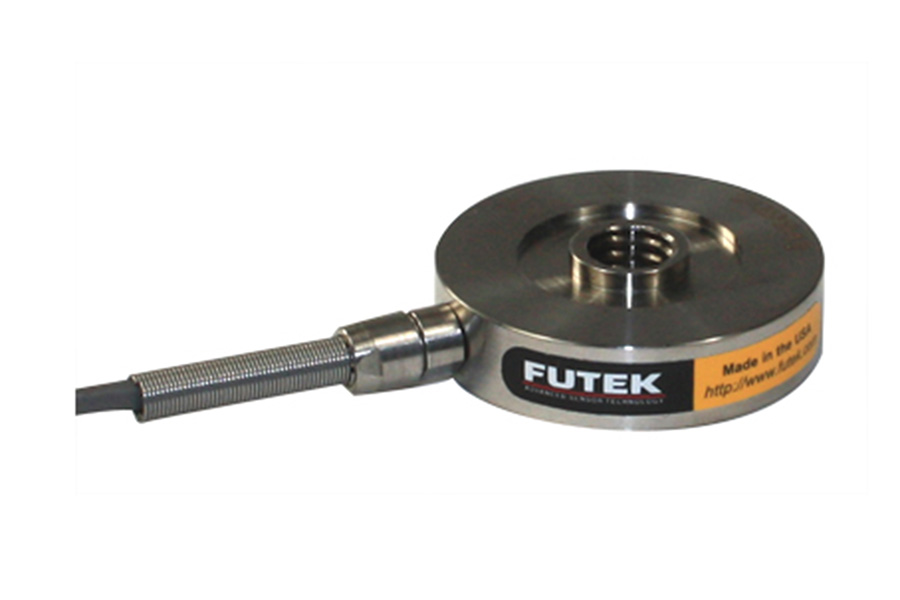

Thru Hole/Donut Load Cell w/ #4-40 mounting holes

QLA116 , 300 lb , Thru Hole/Donut Load Cell w/ #4-40 mounting holes , Standard , Material - 17-4 PH S.S. , 3/8-16-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long
Listed price is in U.S. currency and subject to verification along with availability
QLA116
QLA116
QLA116
QLA116
Description
Donut Load Cell with #4-40 Mounting Holes
Features
Alternative Model
LLB400 , 250 lb , Load Button Load Cell , RoHS Compliant , #6-32 Bottom Tapped Holes , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
https://media.futek.com/images/store/225X150-LLB400-LOAD-BUTTON-WITH-THREADED-TAPPED-HOLES-1_THUMB.JPG
In Stock In Stock
LLB300 , 250 lb , Subminiature Load Button , RoHS Compliant , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long
https://media.futek.com/images/store/225X150LLB300-MINIATURE-LOAD-BUTTON-1_THUMB.JPG
In Stock In Stock
LTH300 , 250 lb , Through Hole Donut Load Cell , RoHS Compliant, Material - 17-4 PH S.S. , 5/16" [7.93 mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long
https://media.futek.com/images/store/225X150LTH300-DONUT-LOAD-CELL-1_THUMB.JPG
In Stock In Stock
LTH300 , 250 lb , Through Hole Donut Load Cell , RoHS Compliant, Material - 17-4 PH S.S. , 1/4" [6.35mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long
https://media.futek.com/images/store/225X150LTH300-DONUT-LOAD-CELL-1_THUMB.JPG
In Stock In Stock
LCF450 , 300 lb , Low Profile Universal Pancake , RoHS Compliant, Material - 17-4 PH S.S. , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
https://media.futek.com/images/store/225X150LCF450-UNIVERSAL-PANCAKE-LOAD-CELL-1_THUMB.JPG
In Stock In Stock
LCF450 , 300 lb , Low Profile Universal Pancake , RoHS Compliant, 0.05% Nonlinearity, Material - 17-4 PH S.S. , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
https://media.futek.com/images/store/225X150LCF450-UNIVERSAL-PANCAKE-LOAD-CELL-1_THUMB.JPG
In Stock In Stock
LTH350 , 250 lb , Through Hole Donut Load Cell , RoHS Compliant, Material - 17-4 PH S.S. , 5/8" [15.88 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
https://media.futek.com/images/store/225X150LTH350-DONUT-LOAD-CELL-1_THUMB.JPG
In Stock In Stock
LAU220 , 300 lb , Pedal Force Sensor , Low Profile & Spike Resistant , RoHS Compliant , Material - 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long
https://media.futek.com/images/store/225X150LAU220-PEDAL-FORCE-SENSOR-1_THUMB.JPG
In Stock In Stock
LAU200 , 300 lb , Pedal Force Sensor , Includes Mounting Plate & Mating Cable/Connector Package , RoHS Compliant, Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 1 ft Long w/ 4 Pin PHG.0B.304.CLLD Lemo Receptacle
https://media.futek.com/images/store/225X150LAU200-PEDAL-FORCE-SENSOR-1_THUMB.JPG
In Stock In Stock
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
700
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
300
lbs
Hysteresis
1
-0.5
0.5
% of R.O.
Nonlinearity
1
-0.5
0.5
% of R.O.
Nonrepeatability
1
-0.5
0.5
% of R.O.
Output Resistance
1
700
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-60
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
Zero Balance
1
-1
1
% of R.O.
