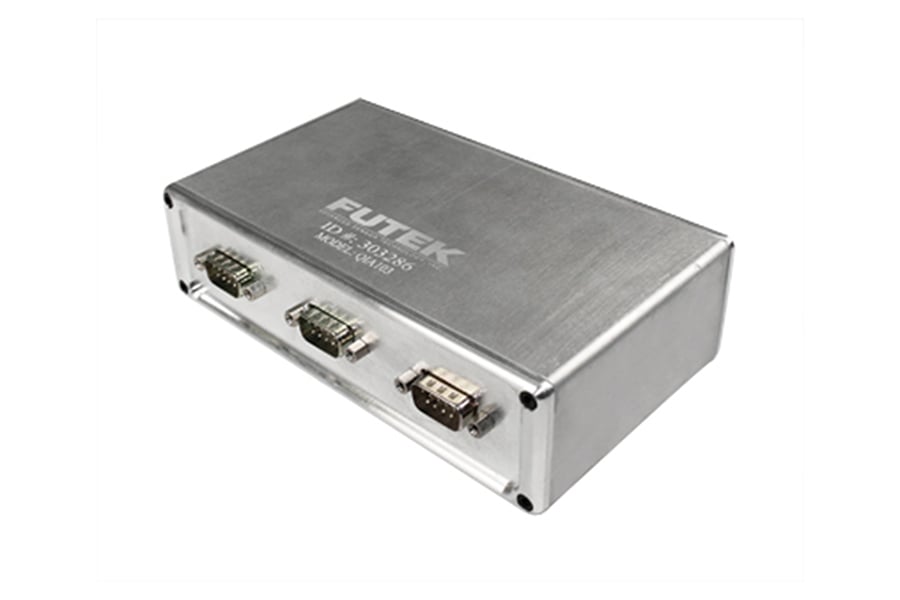

3 Channels Amplifier Module (Aluminum)

QIA103, 3 Channels Voltage Output Signal Conditioning Amplifier Module , Material - 2024-T4 , 1x DB15 Female Sensor Connector , 3x DB9 Female Power/Output Connectors
Listed price is in U.S. currency and subject to verification along with availability
multi channel load cell amplifier module 3 Channels Signal Conditioner QIA103
multi channel load cell amplifier module 3 Channels Signal Conditioner QIA103
Description

3 Channels Amplifier Module (Aluminum). Multi channel Load Cell Amplifier Module suitable for Tri axial Load Cells (3 axis), with low power consumption requirements and digital output (SPI output).


Monitoring Multiple Load Cells:
FUTEK QIA103, 3 Channels Voltage Output Signal Conditioning Amplifier Module can be used to connect from 1 to 3 load cells. This is common for industrial or commercial applications such as multi-station filling machines, or medical devices utilizing multiple load cells.

Features

Features:
•    Bipolar Output, Differential Input

Specifications:
•    Voltage Output (Fx & Fy): 1.2 mV/V = 4.5 VDC
•    Voltage Output (Fz): 0.5 mV/V = 2.5 VDC
•    Operating Temperature: 32° F to 158° F [0°C to 70°C]
•    Storage Temperature: 40° F to 185° F [-40°C to 85°C]
•    Relative Humidity: 95% at 100 ° F [38°C]
•    Material (Housing): Aluminum
•    Nonlinearity: ±0.001 % of FSR
•    Bandwidth: 1000 Hz
•    Sensor Impedance: 100 Ohm Min.
•    Power Supply: 12.5 to 26 VDC

Specifications
Electrical
Performance
Set-up
Temperature
CHANNELMINTYPMAXUNIT
Bandwidth
1000
Hz
Bridge Resistance
100
Ohms nom.
Input Range
Fx-1
-1.2
1.2
mV/V nom.
Fy-1
-1.2
1.2
mV/V nom.
Fz-1
-0.5
0.5
mV/V nom.
Analog Output
Fx-1
-5
5
Vdc
Fy-1
-5
5
Vdc
Fz-1
-3
3
Vdc
Capacity
Fx-1
-1.2
1.2
mV/V nom.
Fy-1
-1.2
1.2
mV/V nom.
Fz-1
-0.5
0.5
mV/V nom.
Nonlinearity
Fx-1
-0.01
0.01
% of R.O.
Power Supply
Fx-1
14
26
Vdc
Operating Temperature
32
158
F
Related Accessories
ZCC961 , 5 ft long , DB9 Female to Cable Assembly , Yellow Molded Boot , 26 Awg 6 Conductor , Braided Shielded , Polyurethane Cable , CSG110/QIA103 Power/Output Side , per SP1113
Alternative Models
FSH03863
IAA100 , Full Bridge Strain Gauge Signal Conditioning Voltage Amplifier , +/-5 VDC , +/-10 VDC Output , 5 VDC Offset DIP Switch , Up to 25 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , Integrated 35 mm DIN Clip
