QLA208 play_arrowQSH00427

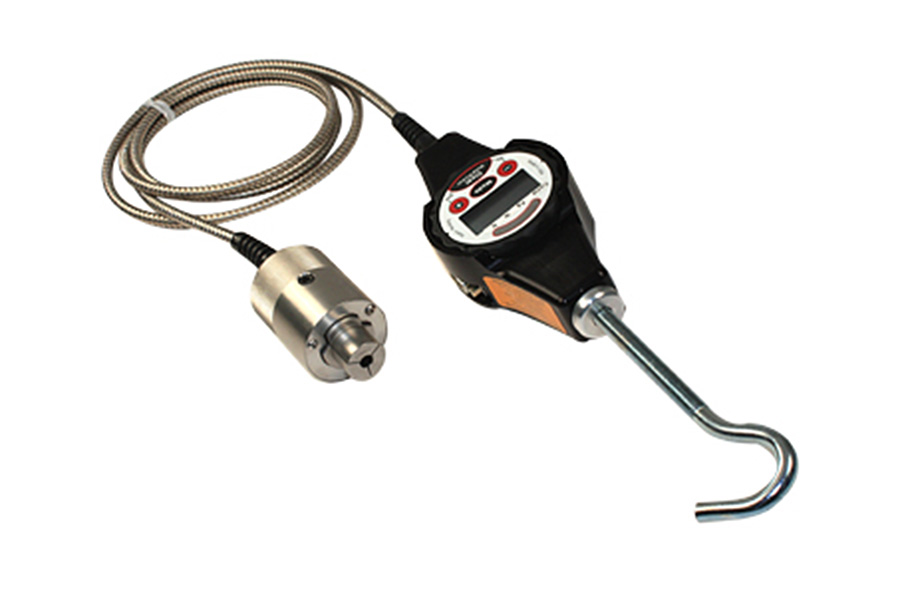

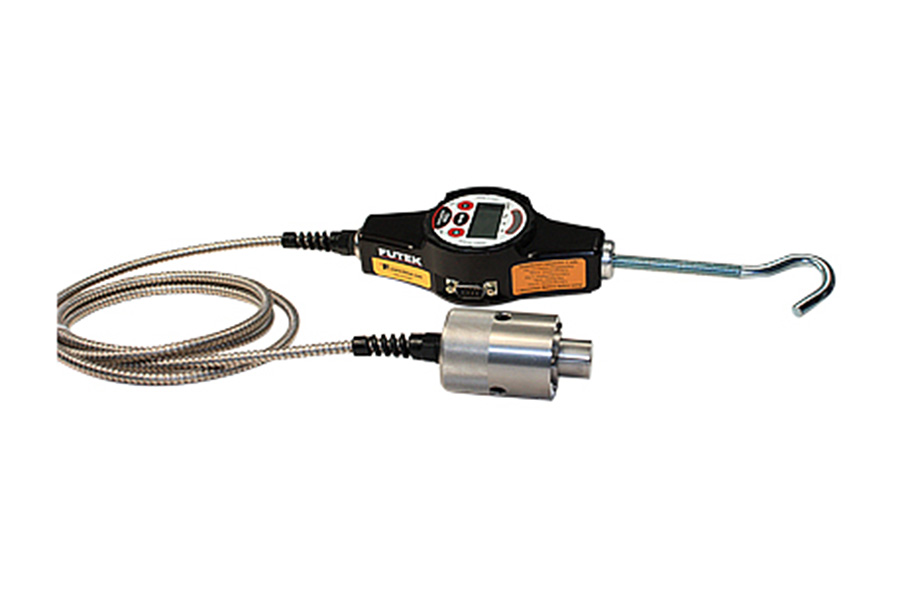

Collet Force Sensor w/ Display

QLA208 , 500 lb , Collet Force , Pinch Sensor w/ Display , 0.79" [20.1 mm] OD , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 6 ft Long w/ Armor Guard Housing
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description
Collet Force Sensor with Display
Features
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Electrical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Input Resistance
1
1050
Ohms nom.
Capacity
1
500
lbs
Nonlinearity
1
-0.25
0.25
% of R.O.
Output Resistance
1
1050
Ohms nom.
Rated Output
1
0.75
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
160
F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
