Custom Bending Beam Load Cell

QLA328 , 18 lb, Custom Yoke Bending Beam Load Cell , Top Mount , 2.873" [72.96 mm] Length , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 2 ft Long
Listed price is in U.S. currency and subject to verification along with availability
Description

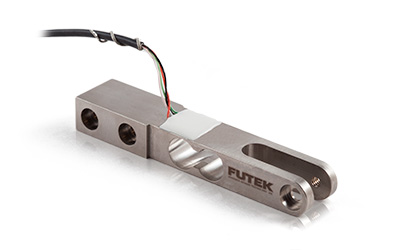

Model QLA328 is a custom yoke bending beam side-mount load cell designed with 2x 0.125” (3.18 mm) thru holes for mounting. This load cell is designed to measure bending loads and offers a rated capacity of 18 lb (80.06 N), with a safe overload protection of 27 (120.1 N). It is constructed from 17-4 PH stainless steel and includes conformal coating protection over the full strain gauge Wheatstone bridge. It is thermally compensated for 60 to 160 °F (15 to 72 °C). It offers a nonlinearity of ± 1.0% of the Rated Output. It includes a #29 AWG 4 conductor shielded cable 2 ft (0.6 m) long.

Features
  • Conformal coating protection over strain gauges
  • Low profile design (0.375” or 9.53 mm in height)
  • Used in bending applications
  • Integrated output cable
Technical Documents
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
15
Vdc
Input Resistance
1
1000
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
18
lbs
Hysteresis
1
-0.5
0.5
% of R.O.
Nonlinearity
1
-1
1
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
Output Resistance
1
1000
Ohms nom.
Rated Output
1
1
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
32
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
+
