QLA394 play_arrowQSH01836

Custom Diaphragm Load Cell Immune to Moment and Shear Loads

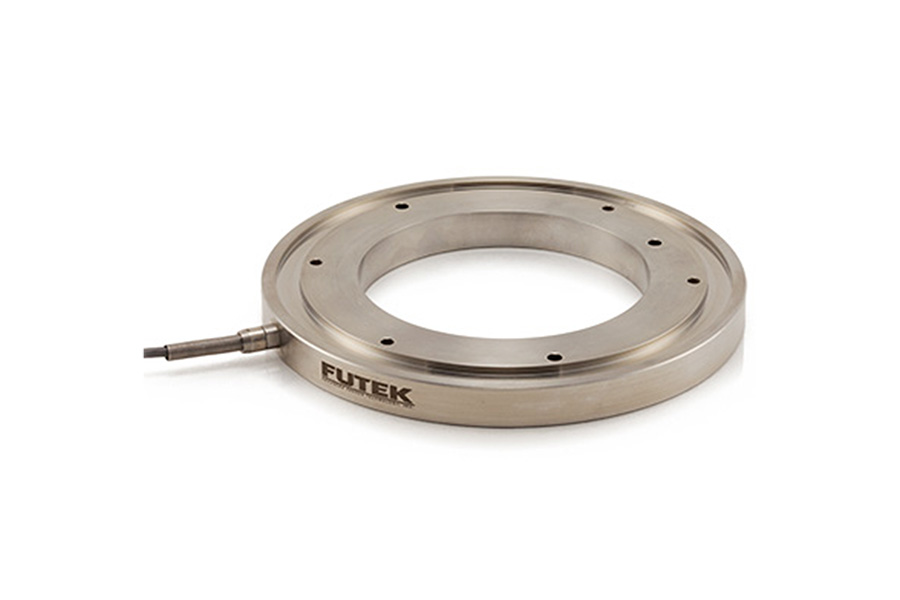

QLA394 , 1200 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 3.30" [83.8 mm] ID x 5.5" [139.7 mm] OD x 0.5" [12.7 mm] H , 26 Awg 4 Conductor Braided Shielded Teflon Cable, 10 ft Long
Spec Sheet Spec Sheet
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Model QLA394 is a custom flange style through-hole load cell that is capable of measuring up to 1200 lb (5.34 kN). This sensor features a low profile, measuring only 0.500 “ (12.7 mm) in height, and includes a flange for mounting provisions. It is designed to minimize the effects of shear (Fx and Fy) and moment (Mx and My) loads by 100 (445 N) and 400 in-lbs (45.2 N-m), respectively while maintaining a nonlinearity spec of ±1 % of its rated output.

Features
  • Constructed of robust 17-4 PH Stainless Steel
  • Includes Data Matrix for shear and moment loads
  • Radially-exited 10-ft (3 m) braided shielded Teflon cable
  • Fast response time
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
15
Vdc
Input Resistance
1
700
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
1200
lbs
Hysteresis
1
-1
1
% of R.O.
Nonlinearity
1
-1
1
% of R.O.
Nonrepeatability
1
-0.5
0.5
% of R.O.
Output Resistance
1
700
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
50
100
F
Operating Temperature
1
-60
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
