QLA292 play_arrowQSH01203

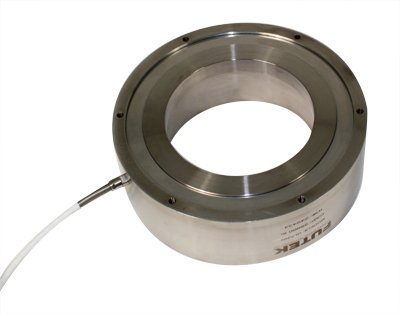

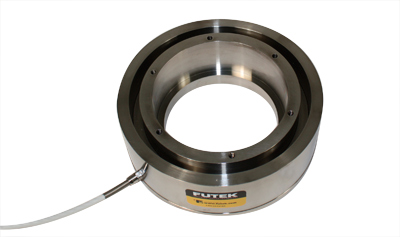

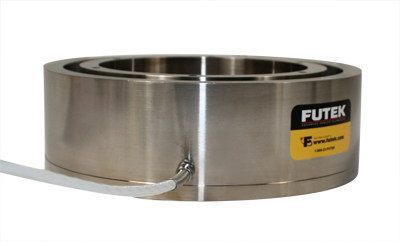

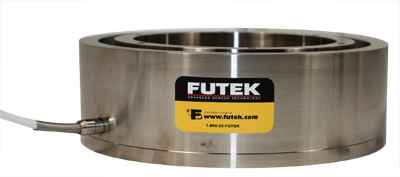

Custom Donut Load Cell

QLA292 , 25000 lb , Custom Donut Load Cell , Water Resistant , Material - 17-4 PH S.S. , 3.25" [82.6 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (Supersedes QSH01024-A)
Listed price is in U.S. currency and subject to verification along with availability
Custom SKF Thrust Bearing Load Cell
Custom SKF Thrust Bearing Load Cell
Custom SKF Thrust Bearing Load Cell with Through Hole
Custom SKF Thrust Bearing Load Cell with Through Hole
Custom SKF Thrust Bearing Load Cell with Through Hole
Description

Custom Donut Load Cell

Features
Technical Documents
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
700
Ohms nom.
Safe Overload
1
150
% of R.O.
Hysteresis
1
-2
2
% of R.O.
Nonlinearity
1
-2
2
% of R.O.
Nonrepeatability
1
-0.5
0.5
% of R.O.
Output Resistance
1
700
Ohms nom.
Capacity
1
25000
lbs
Rated Output
1
1.5
mV/V nom.
Compensated Temperature
1
-26
126
F
Operating Temperature
1
-40
185
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
