QLA409 QSH01987

Custom Female Thread Mounted Load Cell

QLA409 , 800 lb , Custom Female Thread Mounted Load Cell w/ Axial Cable Exit , RoHS Compliant , Material - 17-4PH S.S. , M12x1.75 -Thread , 0.1 - 5.1 VDC Amplified Output , 28 Awg 4 Conductor Braided Shielded PVC , 1 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

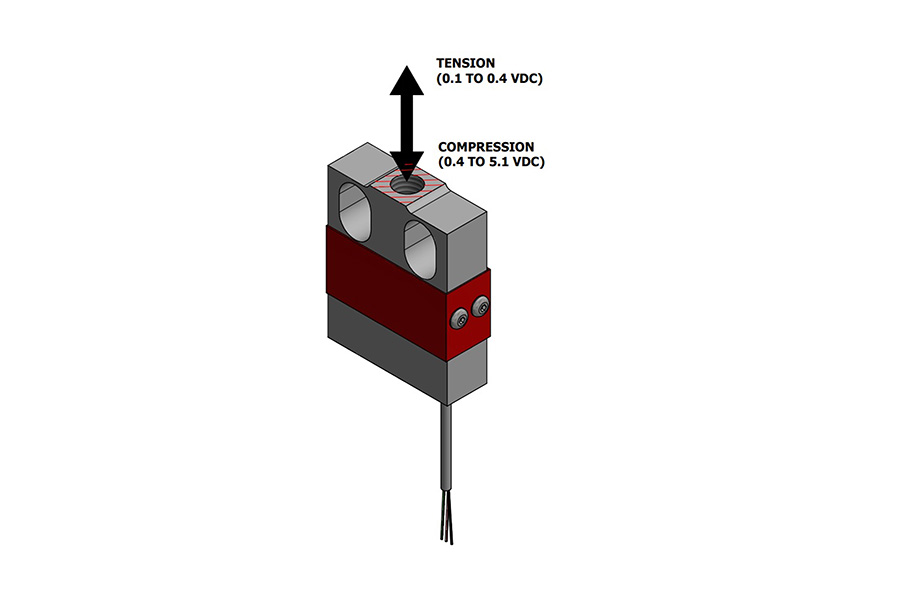

Model QLA409 is a custom female thread mounted load cell that is designed to measure forces up to 800 lbs (~363 kg). It stands at a height of 2.50 inches (63.5 mm) and a width of 0.73 inches (18.5 mm). Constructed of 17-4 PH Stainless Steel, it is capable of operating in temperatures between – 22 to 185 °F (-30 to 85 °C) includes an axially-exiting 28 AWG 4 Conductor Braided Shielded cable 1 ft (0.3 m) long. It includes 2x M12x1.75 female threads for mounting and loading surfaces. This load cell is designed to be used in compression application such as ultrasonic welding force measurement.

Features

Amplified output for both tension and compression
1 kHz bandwidth
Axial cable exit
Capable of being internally amplified

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		24		Vdc
Excitation	1	12		24	Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			800	lbs
Hysteresis	1	-0.1		0.1	% of R.O.
Nonlinearity	1	-0.1		0.1	% of R.O.
Nonrepeatability	1	-0.05		0.05	% of R.O.
Rated Output	1	0.15		5.15	Vdc
Compensated Temperature	1	60		160	F
Operating Temperature	1	-22		185	F
Temperature Shift Span	1	-0.01		0.01	% of Load/F
Temperature Shift Zero	1	-0.005		0.005	% of R.O./F
Zero Balance	1	0.69		0.71	Vdc

Related Instruments

IHH500 FSH03460

IHH500 Elite , Intelligent Digital Handheld Display , mV/V , VDC , Current , and Encoder Measurement , Analog Output , Alarm Relays , TEDS , and USB Output - Accessory Kit (FSH03583) With All Mating Connectors and SENSIT® Software Included

IHH500 FSH03571

IHH500 Pro , Intelligent Digital Handheld Display , mV/V , VDC , & mA Measurement , Analog Output , Alarm Relays , TEDS & USB Output , Only Power Supply Adapter is included

IPM650 FSH03633

IPM650 Pro , Intelligent Panel Mount , mV/V , VDC , Current Measurement , Analog Output , Alarm Relays , TEDS and USB Output

IPM650 QSH01633

IPM650 Pro , Intelligent Panel Meter , mV/V , VDC , Current Measurement , Analog Output , Alarm Relays , TEDS and USB Output , Power Button Disabled , Powers On When Plugged In

USB320 FSH03631

USB320 , External High Resolution USB Output Kit , 24 Bit Resolution , Up To 21 Bit Noise Free , For Amplified 0-10VDC or +/-10VDC Inputs , Up to 4800 SPS , Onboard 12V/1W Supply Voltage

USB520 FSH03944

USB520 , High Speed & Resolution External USB Output Kit , Up To 20.5 Bits Noise Free , Strain Gauge mV/V & Amplified +/-10 VDC/4-20 mA Inputs Up to 4800 SPS & Encoder TTL Inputs Up to 10 SPS , 35 mm DIN Clip , Powered Off Of USB 2.0 Only

Related Accessories

XAC100 MCP00965

XAC100 , Convex Spherical Stainless Steel Load Button with Inline M12x1.75 Male Thread, 17-4 PH S.S. Material (F1147-15)

ZAC100 FSH02339

ZAC100, Male Rod-End Bearing , Rod End Bearing (Male) with Nut , Material - Zinc Plated Steel , M12x1.75-Thread , Standard , Max Load 5800 lb (F1146-11)
