QLA367 play_arrowQSH01632

Custom Load Button Load Cell with TEDS

QLA367 , 100 lb , Load Button Load Cell , Special Full Circuit Gauge , IEEE1451.4 TEDS , #6-32 Bottom Tapped Holes , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided PVC Cable , 13 in with 7 pin 1.25mm Clik-Mate Molex Connector
Spec Sheet Spec Sheet
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
QLA367
QLA367
Description

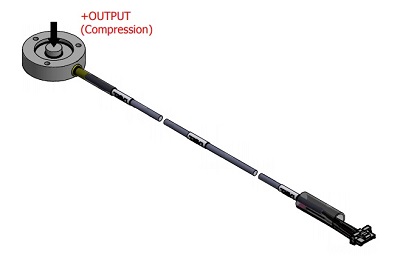

Model QLA367 is a custom load button load cell designed with TEDS IEEE1451.4 and 7 Pin Clik-Mate Molex connector. This load cell is designed to measure compression loads and offers a rated capacity of 100 lb (445 N), with a safe overload protection of 150 lb (667 N). This load cell features 3x #6-32 UNC female mounting provisions and is constructed from 17-4 PH stainless steel. It offers a nonlinearity of ± 0.15 % of the Rated Output. It includes an integrated 14 inch (356 mm) output cable, and is available in two configurations: conventional gage type, and custom integrated circuit. This load cell is designed for high reliability, OEM embedded solutions, and the cable package lends itself to quick, easy integration.


Features
  • Designed for applications that require compression measurements
  • Low profile design (0.39 in. or 9.9 mm in height)
  • Integrated output cable
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
700
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
100
lbs
Hysteresis
1
-0.15
0.15
% of R.O.
Nonlinearity
1
-0.15
0.15
% of R.O.
Nonrepeatability
1
-0.05
0.05
% of R.O.
Output Resistance
1
700
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-40
185
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
